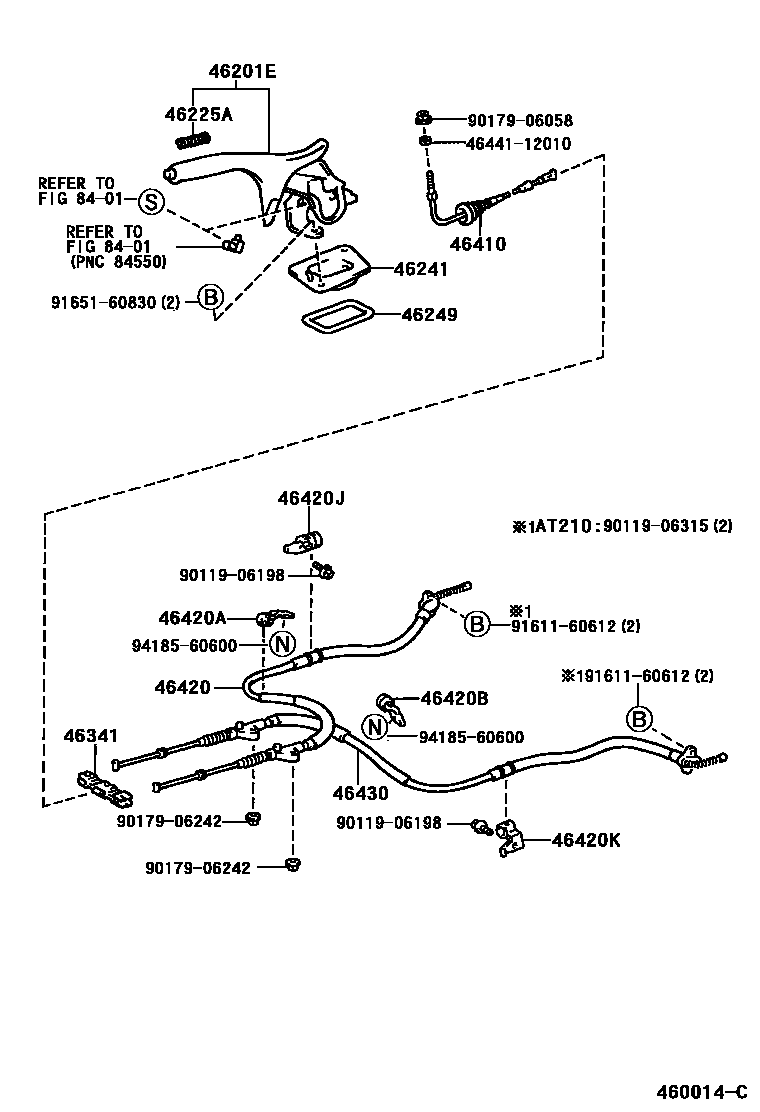

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20340-C0iAT211,212,CT21#,ST215199608-199808

BLACK,TRIM1#,4#

main46201-21020-C0iAT211,212,CT21#,ST215200101

BLACK,TRIM1#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAT211,212,CT21#,ST215200012

46241BOOT, PARKING BRAKE LEVER

main46241-20170iAT21#,CT21#,ST215199608

46249SHIELD, PARKING BRAKE HOLE

main46249-20050iAT21#,CT21#,ST215199608

46341EQUALIZER, PARKING BRAKE

main46341-12020iAT21#,CT210,211199608

main46341-20100iCT215,216,ST215199608

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20430iAT21#,CT210,211199608

main46410-20440iCT215,216,ST215199608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20351iAT211,212,CT210,211199608

main46420-20360iAT210199608

main46420-20540iCT215,216,ST215199608

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01771iAT21#,CT210,211199608

main90949-01775iCT215,216,ST215199608

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01772iAT21#,CT210,211199608

main90949-01776iCT215,ST215199608-199808

main90949-01B32iCT216,ST215199808

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46451-20020iAT21#,CT210,211199608

main90949-01665iCT215,216,ST215199608

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46451-20030iAT21#,CT210,211199608

main90949-01777iCT215,216,ST215199608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20361iAT211,212,CT210,211199608

main46430-20450iAT210199608

main46430-20540iCT215,216,ST215199608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4644112010NUT, WIRE ADJUSTING, NO.1

main46441-12010

9011906198

main90119-06198

9011906315

main90119-06315

9017906058

main90179-06058

9017906242

main90179-06242

9161160612

main91611-60612

9165160830

main91651-60830

9418560600

main94185-60600

21 parts on this diagram · 3 diagrams in section
