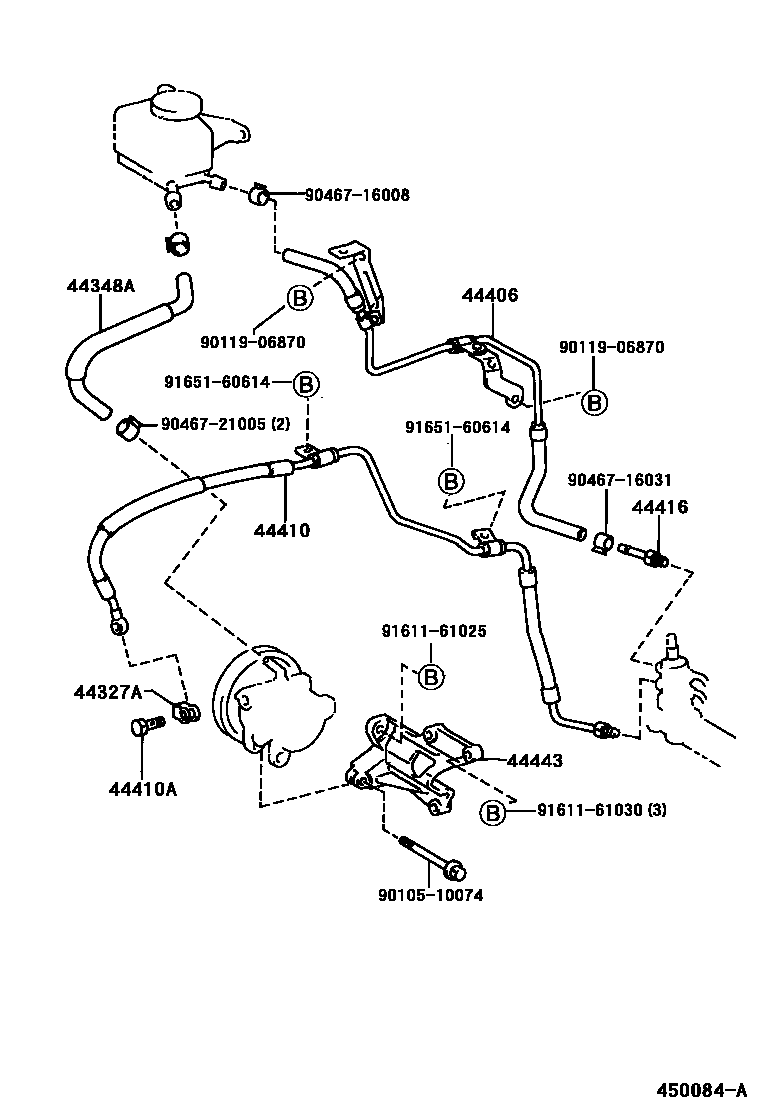

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT211,212,CT21#,ST215199608

main44327-30030iAT210199608

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20390iCT210199608-199712

main44348-20480iST215199608

main44348-20530iCT215199608-199709

main44348-20550iAT210199608

main44348-20590iCT210,211199712

main44348-21040iCT215,216199709

44406TUBE SUB-ASSY, RETURN

main44406-20710iST215199608-199808

main44406-20720iCT215199608-199808

main44406-20730iCT210199608-199808

main44406-20790iAT210,CT211199608

main44406-21040iST215199808

main44406-21080iCT216199808

44410TUBE ASSY, PRESSURE FEED

main44410-2B150iAT210199608

main44410-2B270iAT211,212199608

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iST215199608

main90401-16008iAT211,212,CT21#199608

main96341-41603iAT210199608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iAT21#,CT21#,ST215199608

44443BRACKET, PUMP

main44443-12050iAT211,212199608

main44443-12081iAT210199608

main44443-20050iST215199608

9010510074

main90105-10074

9011906870

main90119-06870

9046716008

main90467-16008

9046716031

main90467-16031

9046721005

main90467-21005

9161161025

main91611-61025

9161161030

main91611-61030

9165160614

main91651-60614

15 parts on this diagram · 4 diagrams in section
