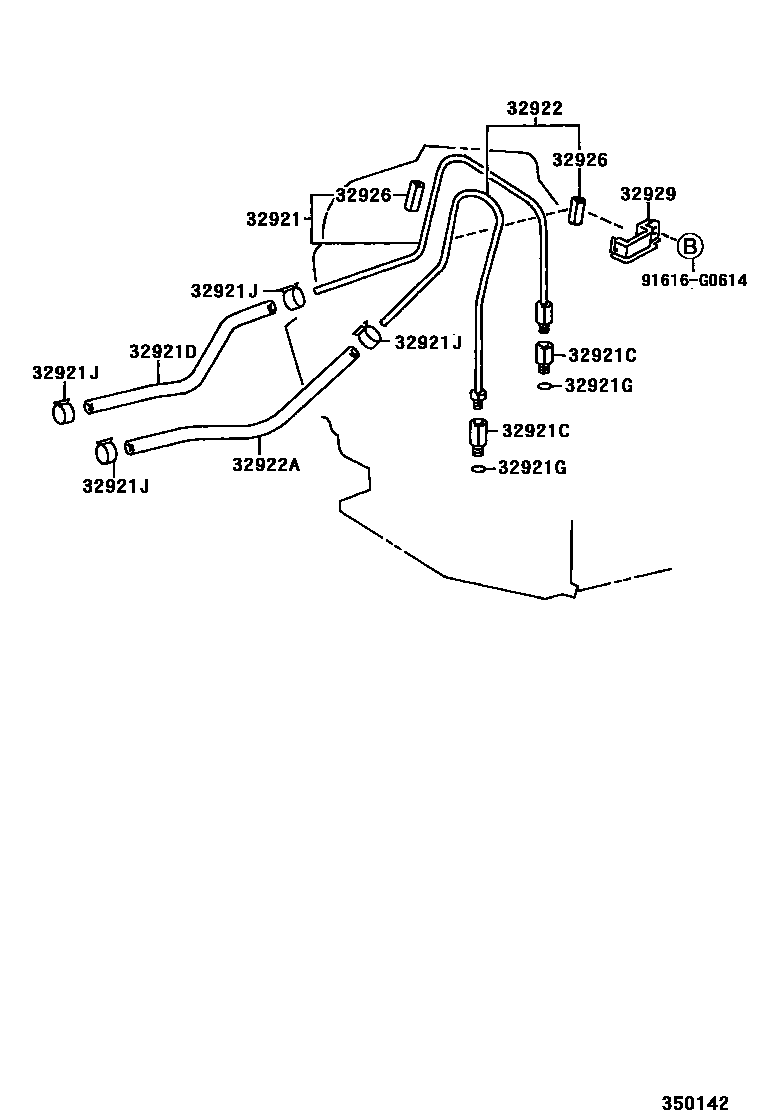

OIL COOLER & TUBE (ATM)

0001 1A245E,A246E 0002 1A240L 0003 1A241L 0004 1A540H 0005 1A241F 0006 1A243F

32921TUBE, OIL COOLER INLET, NO.1

main32921-20390iAT212..4FC199608-199808

main32921-20400iCT210..4FC199608-199808

main32921-20410iAT210,211..4FC199608-199808

main32921-20420iST215..4FC199608-199808

main32921-20470iAT210,211..4FC199808

main32921-20480iAT212..4FC199808

main32921-21050iST215..4FC199808-199906

main32921-21060iCT216199808-199906

main32921-21070iCT211..4FC199808

main32921-21080iST215..4FC199906

main32921-21090iCT216199906

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iAT212,CT211..4FC199808

main32901-21020iCT216,ST215..4FC199906

main32901-32060iST215..4FC199608-199808

main32918-32010iST215..4FC199608-199808

main90404-14007×2iAT212,CT210..4FC199608-199808

main90404-16032×2iAT210,211..4FC199608

main90407-16032iCT216,ST215..4FC199808-199906

32921DHOSE(FOR OIL COOLER INLET)

main32942-35011iST215..4FC199608-199808

main90445-15047iST215..4FC199808

main90445-15052iAT212,CT216..4FC199608

main90445-15070iCT210,211..4FC199608

main90445-17117iAT210,211..4FC199608-199808

main90445-17124×2iAT210,211..4FC199808

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAT212,CT210,211,216,ST215..4FC199608

main90301-11006×2iAT210,211..4FC199608

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iAT212,CT210,211,216,ST215..4FC..TI199608

main90467-16013×4iAT210,211,ST215..4FC..(GT,SI)199608

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20420iAT210,211..4FC199608-199808

main32922-20430iST215..4FC199608-199808

main32922-20440iCT210,211..4FC199608

main32922-20450iAT212..4FC199608

main32922-20500iAT210,211..4FC199808

main32922-21060iST215..4FC199808

main32922-21070iCT216199808

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15042iCT216199808

main90445-15052iAT212..4FC199608

main90445-15054iCT210,211,ST215..4FC..TI199608

main90445-17117iAT210,211..4FC199608-199808

main90445-17124×2iAT210,211..4FC199808

main90445-17127iST215..4FC199608-199808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010×2iST215..4FC199608-199808

main32926-22010×2iAT212,ST215..4FC..TI; CT210,211,216..4FC199608

main32926-30020×2iAT210,211..4FC199608

32929CLAMP, FLEXIBLE HOSE, NO.2

main32924-20080×2iAT210,211..4FC199808

main32929-22050iAT210,211..4FC199608-199808

91616G0614

main91616-G0614

10 parts on this diagram · 6 diagrams in section
