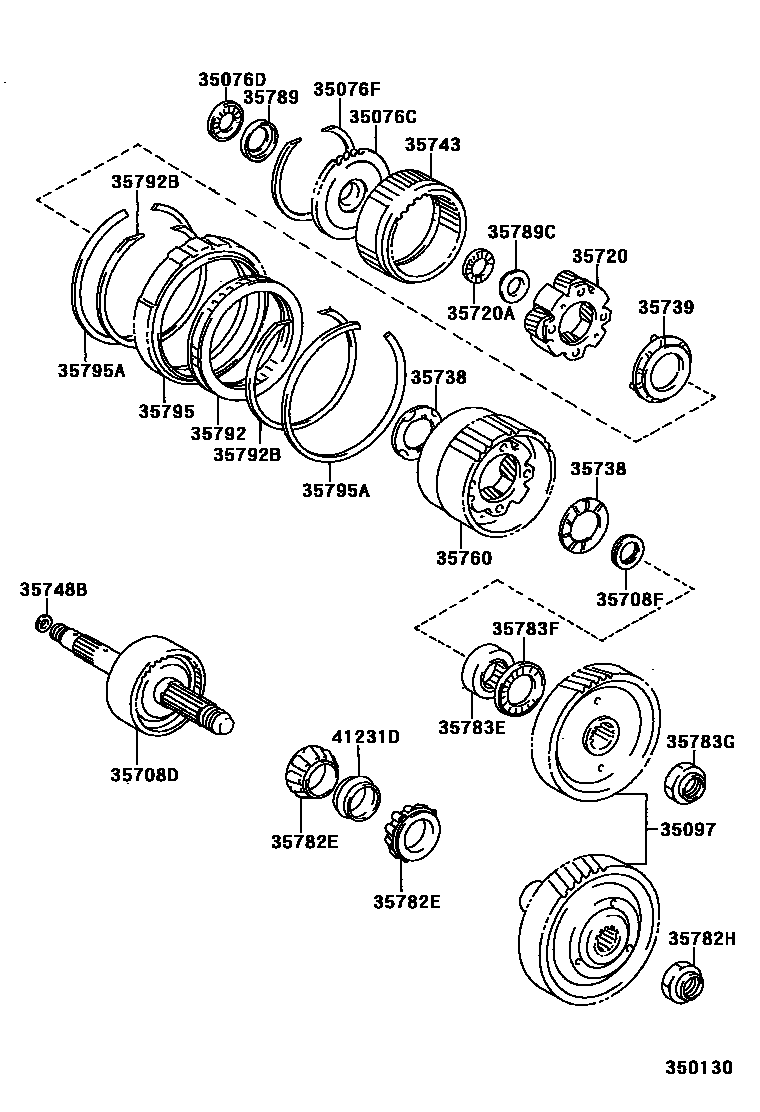

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A245E,A246E 0002 1A240L,A241E,A241L,A243F 0003 1A540H 0004 1A241F

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iAT210,211..4FC199608

main35076-32011iST215..4FC199608-199708

main35076-32020iCT216199808

main35076-32030iAT212,CT210..4FC199608-199708

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iAT212,CT210,ST215..4FC199608-199801

main90374-22005iAT212,CT210,211,ST215..4FC..TI199801

main90374-25007iAT210,211..4FC199608-199909

main90374-25009iAT210,211..4FC199909

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iAT21#,CT210,211,216,ST215..4FC199608

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12050iAT211..4FC199608

main35097-20010iAT212,CT210,211..4FC199608

main35097-20050iST215..4FC199808

main35097-20070iAT210..4FC199608

main35097-21020iCT216199808

main35097-32020iST215..4FC199608-199808

35708DSHAFT SUB-ASSY, INTERMEDIATE

main35708-12070iAT210,211..4FC199608

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90374-22003iAT210,211..4FC199608

35720GEAR ASSY, FRONT PLANETARY

main35720-12030iAT211,212..4FC199608

main35720-17010iCT211,ST215..4FC199608

main35720-32010iAT210,CT210..4FC199608

main35720-32020iCT216199808

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iAT212,CT210,ST215..4FC199608-199801

main90374-22004iAT210,211..4FC199608-199909

main90374-22005iAT212,CT210,211,ST215..4FC..TI199801

main90374-22009iAT210,211..4FC199909

main90374-31001iCT216199808

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-12010×2iAT211,212..4FC199608

main35738-21050iCT216199808

main35738-32010×2iAT210,CT210,211,ST215..4FC..(GT,TI)199608

main35738-32030×2iST215..4FC199608-199808

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-21010iCT216199808

main35739-32011iAT21#,CT210,211,ST215..4FC199608

35743GEAR, FRONT PLANETARY RING

main35743-32040iAT21#,CT210,211,ST215..4FC199608

main35743-33010iCT216199808

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-32010iST215..4FC..TI;AT21#,CT210,211,216..4FC199608

35760GEAR ASSY, REAR PLANETARY

main35760-12020iAT211,212..4FC199608

main35760-32010iAT210,CT210,ST215..4FC..(GT,TI)199608

main35760-32030iCT211..4FC;ST215..4FC..SI199608

main35760-33010iCT216199808

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-40077×2iST215..4FC199608-199808

main90369-40006×2iAT210,211..4FC199608

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-22021iAT210,211..4FC199608

35783EBEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR)

main90365-37001iST215..4FC..TI;AT21#,CT210,211,216..4FC199608-200009

main90365-37008iAT211..4FC200009

35783FBEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR)

main90374-41001iST215..4FC..TI;AT21#,CT210,211,216..4FC199608

35783GNUT(FOR COUNTER DRIVEN GEAR)

main90179-20013iAT212,CT210,211,216,ST215..4FC..TI199608

main90179-22021iAT210,211..4FC199608

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iAT210,211..4FC199608

main35789-32050iAT212,CT210,211,216,ST215..4FC199608

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iAT21#,CT210,211,216,ST215..4FC199608

35792CLUTCH, 1 WAY, NO.2

main35792-20020iCT21#..4FC199808

main35792-32011iAT21#,CT210,ST215..4FC199608

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010×2iAT21#,CT210,211,216,ST215..4FC199608

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iAT210,211,ST215..4FC; AT212..4FC200106

main35795-32010iAT212,CT210,211,216,ST215..4FC199608-199908

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011×2iAT21#,CT210,211,216,ST215..4FC199608

41231DSPACER, DRIVE PINION BEARING

main41231-12050iAT210,211..4FC199608

25 parts on this diagram · 4 diagrams in section
