IGNITION COIL & SPARK PLUG / GLOW PLUG

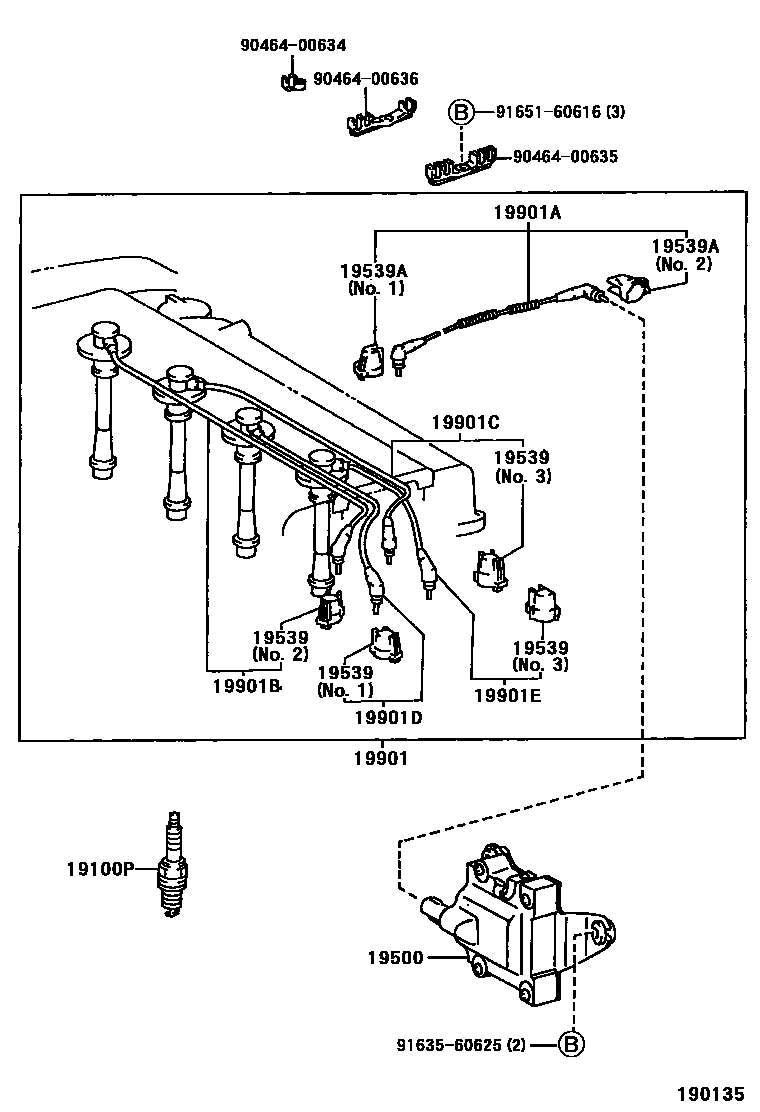

Parts diagram

19100PPLUG, SPARK

main90919-01164×4i199608

main90919-01178×4i199608

main90919-01179×4i199608

main90919-01198×4i199608

main90919-01200×4i199608

main90919-01201×4i199608

19500COIL ASSY, IGNITION

main19500-16020×2i199608

main19500-74091i199608

19539HOLDER, RESISTIVE CODE, NO.4

main19531-46010×2i199608

main19532-50010×2i199608

main19539-11010i199608

main19539-16010i199608

main19539-46010i199608

main19539-50010i199608

main19539-74050×4i199608

19539AHOLDER, RESISTIVE CODE, NO.5

main19539-16010i199608

main19539-62020i199608

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21603i199608

main90919-22327i199608

main90919-22381i199608

main90919-22386i199608-199808

main90919-22400i199808

19901ACORD, COIL RESISTIVE

main19590-16030i199608

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15207i199608

main90919-15211i199608

main90919-15466i199608-199808

main90919-15470i199608

main90919-15546i199808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15206i199608

main90919-15210i199608

main90919-15465i199608-199808

main90919-15471i199608

main90919-15547i199808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15205i199608

main90919-15209i199608

main90919-15464i199608-199808

main90919-15472i199608

main90919-15548i199808

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15204i199608

main90919-15208i199608

main90919-15463i199608-199808

main90919-15473i199608

main90919-15549i199808

9046400634

main90464-00634

9046400635

main90464-00635

9046400636

main90464-00636

9163560625

main91635-60625

9165160616

main91651-60616

15 parts on this diagram · 5 diagrams in section
