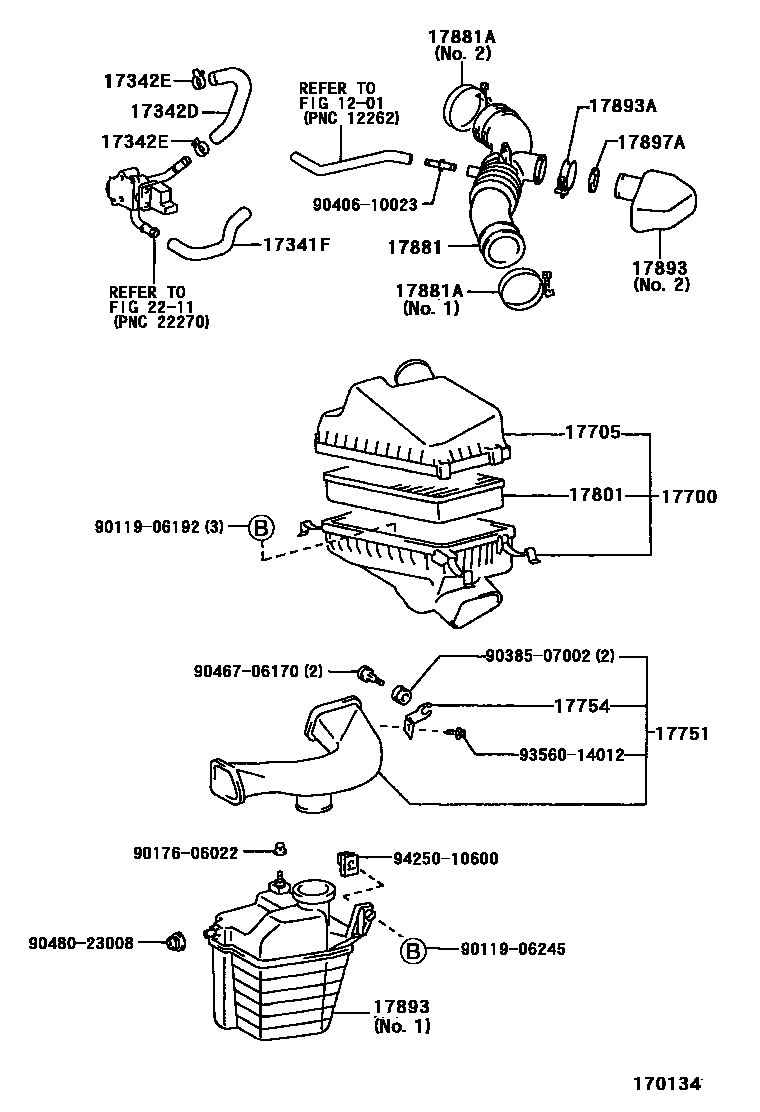

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17341FHOSE, AIR, NO.1

main17341-16200i4AGE..AT210199608

17342DHOSE, AIR, NO.2

main17342-16110i4AGE..AT210199608

17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)

main96134-42300×2i4AGE..AT210199608

17700CLEANER ASSY, AIR

main17700-1A010i3SFE..ST215; 5AFE,7AFE..AT211,212199608

main17700-64350i2CT,3CTE..CT21#199608

main17700-74560i4AGE..AT210199608

17705CAP SUB-ASSY, AIR CLEANER

main17705-16500i3SFE..ST215; 5AFE,7AFE..AT211,212199608

main17705-64230i2CT,3CTE..CT21#199608

main17705-74400i4AGE..AT210199608

17751INLET, AIR CLEANER, NO.1

main17751-16110i3SFE..ST215; 4AGE,5AFE,7AFE..AT21#199608

main17751-64030i2CT,3CTE..CT21#199608-199909

main17751-64031i3CTE..CT21#199909

17754STAY, AIR CLEANER INLET

main17754-16010i3SFE..ST215; 4AGE,5AFE,7AFE..AT21#199608

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64060i2CT,3CTE..CT21#199608

main17801-74020i3SFE..ST215; 4AGE,5AFE,7AFE..AT21#199608

17881HOSE, AIR CLEANER, NO.1

main17881-16380i5AFE,7AFE..AT211,212199608-199810

main17881-16381i5AFE,7AFE..AT211,212199810

main17881-16400i4AGE..AT210199608

main17881-64290i2CT,3CTE..CT21#199608

main17881-74670i3SFE..ST215199608

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-65007i2CT,3CTE..CT21#199608

main96111-10530i3SFE..ST215; 5AFE,7AFE..AT211,212199608

main96111-10710×2i5AFE,7AFE..AT211,212199608

main96111-10800i4AGE..AT210199608

main96111-10900i4AGE..AT210199608

17893RESONATOR, INTAKE AIR

main17893-16130i3SFE..ST215; 4AGE,5AFE,7AFE..AT21#199608

main17893-16140i4AGE..AT210199608

17893ACLAMP, HOSE

main96111-10630i4AGE..AT210199608

17897APLATE, RESONATOR CONTROL

main17897-74010i4AGE..AT210199608

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011906192

main90119-06192

9011906245

main90119-06245

9017606022

main90176-06022

9038507002

main90385-07002

9040610023

main90406-10023

9046706170

main90467-06170

9048023008

main90480-23008

9356014012

main93560-14012

9425010600

main94250-10600

24 parts on this diagram · 4 diagrams in section
