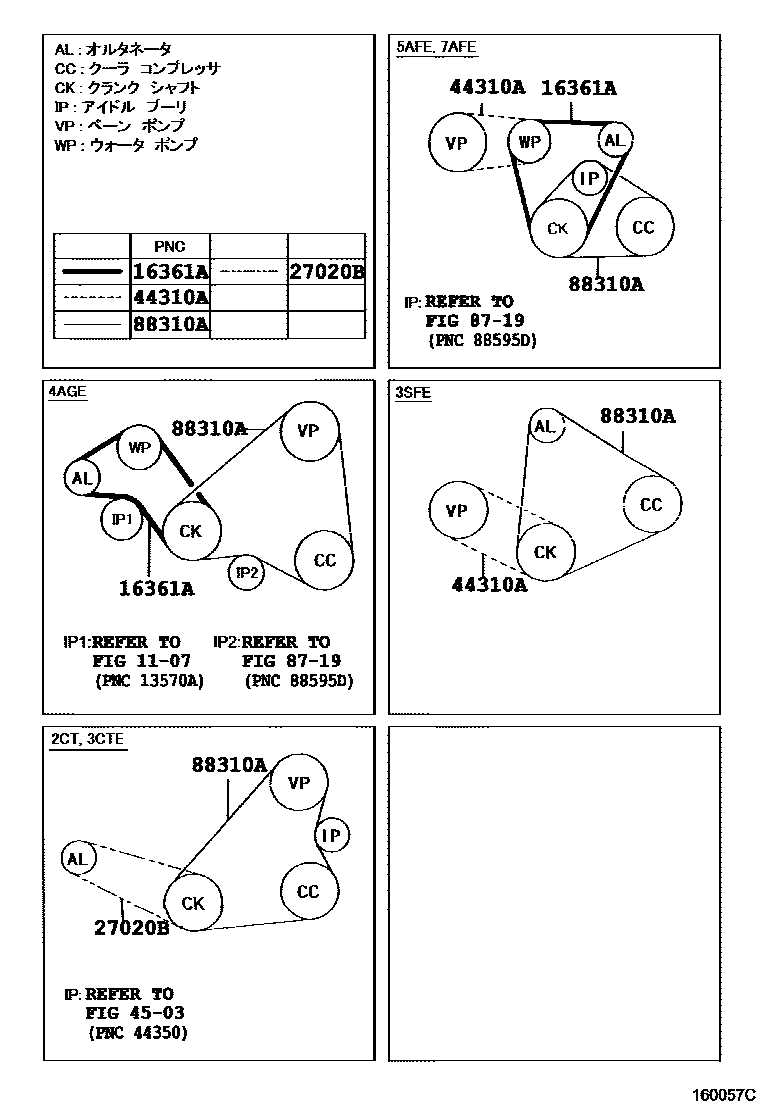

V-BELT

1107MOUNTING

→ Go to FIG 11-07

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i5AFE,7AFE..AT211,212199808

main99365-20970i5AFE,7AFE..AT211,212199608-199808

main99365-80840i4AGE..AT210199608

27020BBELT, V(FOR ALTERNATOR)

main90916-02372i2CT,3CTE..CT210,211,215199608

main90916-02447i3CTE..CT216199808

44310ABELT, V(FOR VANE PUMP)

main99363-90630iAT211,212199608

main99363-90760iST215199608

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91099iST215199808

main90916-02423iAT211,212199608

main90916-02424iAT211,212199608-199808

main90916-02430iAT210199608

main90916-02433iAT211,212199808

main99365-21210iCT21#199608-199707

main99365-31110iST215199808

main99365-91110iST215199808

main99365-91210iCT21#199608-199707

7 parts on this diagram · 1 diagram in section
