WATER PUMP

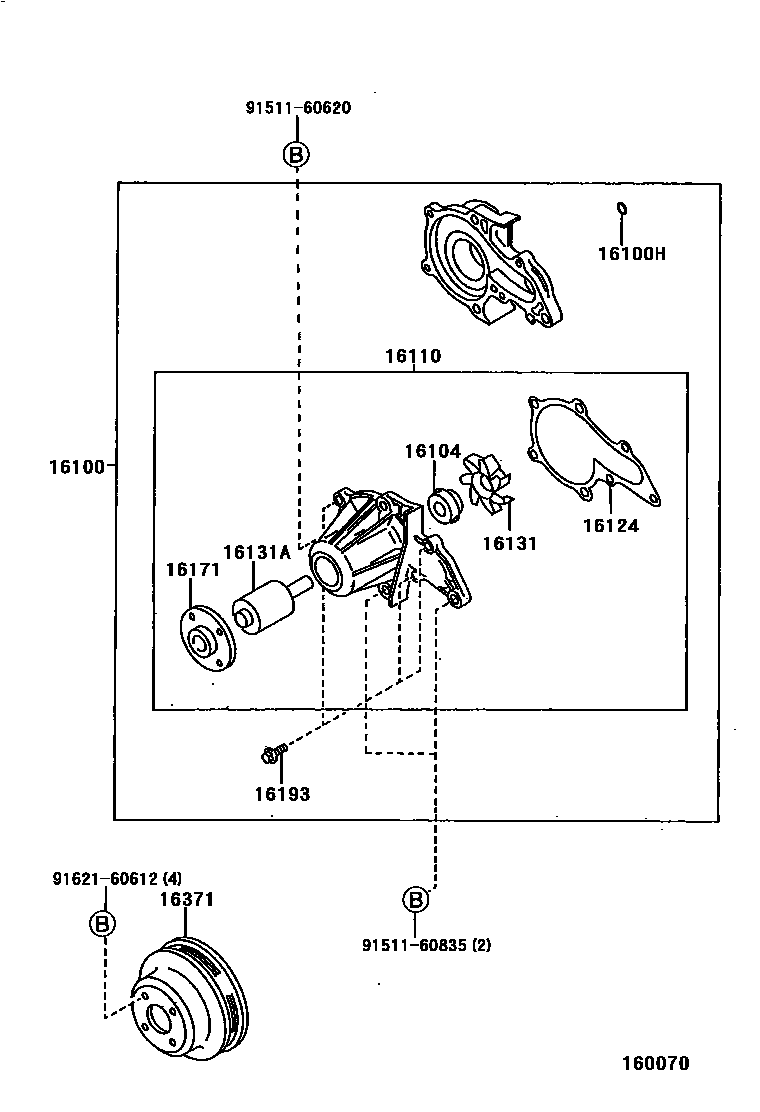

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-09120i199811

SIAM AISIN

main16100-19285i199608

main16100-19295i199811

main16100-19295i199608-199811

main16100-19305i199608

main16100-69295i199608-199704

main16100-69296i199704-199811

main16100-69298i199811-200012

main16100-69435i200012

main16100-79185i199608

16100HRING, O(FOR WATER PUMP)

main90301-37005i199608

main96761-24035i199608

16104SEAL SET, WATER PUMP

main16104-46060i199608-200003

main16104-54030i199608-199708

main16104-74010i199608-200003

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19145i199608-199610

main16110-19146i199610

main16110-19175i199608-199610

main16110-19176i199610

main16110-19185i199608

main16110-19195i199608

main16110-19205i199608

16124GASKET, WATER PUMP COVER

main16124-15110i199608

main16124-16040i199608

main16124-16060i199608

main16124-88460i199608

16131ROTOR, WATER PUMP

main16131-16020i199608-200003

main16131-16090i199608-200003

16131ABEARING, WATER PUMP

main90029-36846i199608

16171SEAT, WATER PUMP PULLEY

main16171-10012i199608

main16171-15020i199608

main16171-15070i199608-199610

main16171-15071i199610

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011i199608

main16193-15100i199608

main90029-01500i199608

16371PULLEY, FAN

main16371-02030i199808

main16371-15071i199608-199808

main16371-15071i199808

main16371-16030i199608

9151160620

main91511-60620

9151160835

main91511-60835

9162160612

main91621-60612

13 parts on this diagram · 4 diagrams in section
