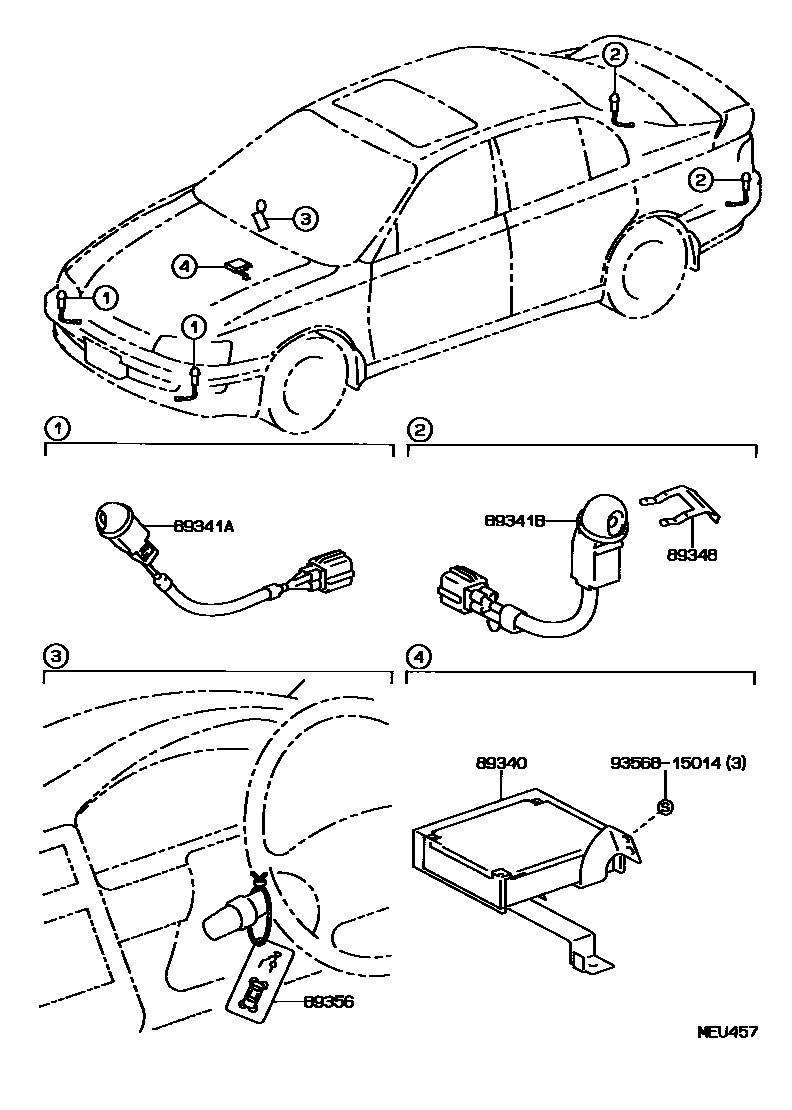

CLEARANCE & BACK SONAR

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-20060iCT19#,ST19#..SE,SL199208-199408

89341ASENSOR, ULTRASONIC, NO.1

main89341-20070-A0×2iCT19#,ST19#..SE,SL199208-199408

SUPER WHITE 2,040

main89341-20070-B0×2iCT19#,ST19#..SE,SL199208-199408

DK BLUE GRAY ME,183

main89341-20070-D0×2iCT19#,ST19#..SE,SL199208-199408

WINE RED MICA,3J8

main89341-20070-D1×2iCT19#,ST19#..SE199208-199408

LIGHT BEIGE ME,3K9

main89341-20070-F0×2iCT19#,ST19#..SE,SL199208-199408

PALE YELLOW OPAL,574

main89341-20070-G0×2iCT19#,ST19#..SE,SL199208-199408

DK MOSS GREEN M ME,6M4

main89341-20070-H0×2iCT19#,ST19#..SE,SL199208-199408

MEDIUM TORQUOISE ME,749

89341BSENSOR, ULTRASONIC, NO.2

main89341-20060-A0×2iCT19#,ST19#..SE,SL199208-199408

SUPER WHITE 2,040

main89341-20060-B0×2iCT19#,ST19#..SE,SL199208-199408

DK BLUE GRAY ME,183

main89341-20060-D0×2iCT19#,ST19#..SE,SL199208-199408

WINE RED MICA,3J8

main89341-20060-D1×2iCT19#,ST19#..SE199208-199408

LIGHT BEIGE ME,3K9

main89341-20060-F0×2iCT19#,ST19#..SE,SL199208-199408

PALE YELLOW OPAL,574

main89341-20060-G0×2iCT19#,ST19#..SE,SL199208-199408

DK MOSS GREEN M ME,6M4

main89341-20060-H0×2iCT19#,ST19#..SE,SL199208-199408

MEDIUM TORQUOISE ME,749

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-22010×2iCT19#,ST19#..SE,SL199208-199408

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-22010iCT19#,ST19#..SE,SL199208-199408

9356815014

main93568-15014

6 parts on this diagram · 1 diagram in section
