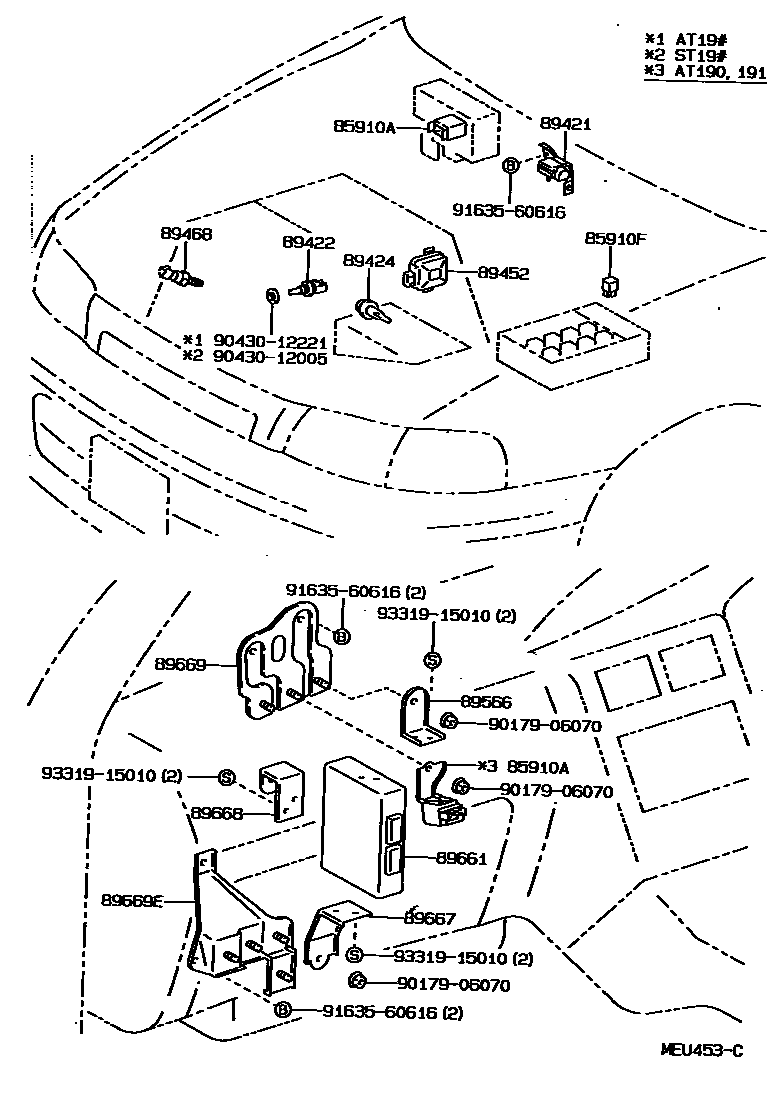

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89468SENSOR, COMBUSTION PRESSURE
89566BRACKET, FUEL INJECTION COMPUTER
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4
9017906070
main90179-06070
9043012005
main90430-12005
9043012221
main90430-12221
9163560616
main91635-60616
9331915010
main93319-15010
18 parts on this diagram · 1 diagram in section
