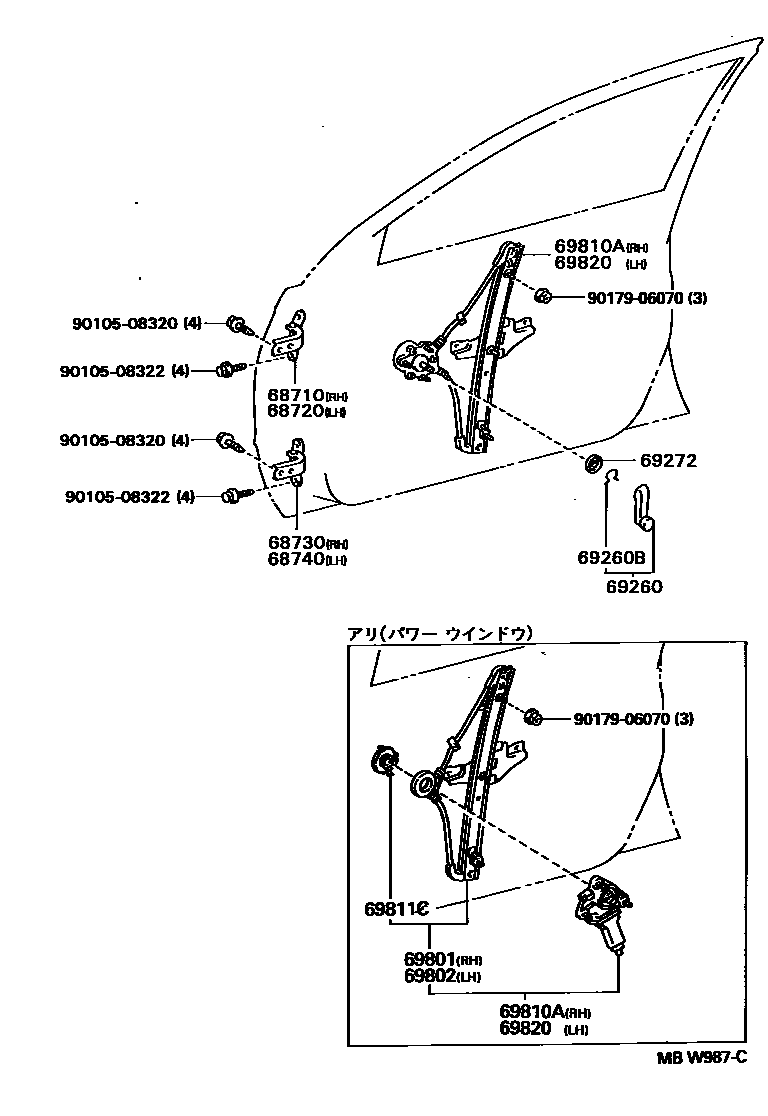

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAT19#,CT19#,ST19#199208-199510

main68710-12150iAT19#,CT19#,ST195199510-199608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAT19#,CT19#,ST19#199208-199510

main68720-12150iAT19#,CT19#,ST195199510-199608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12130iAT19#,CT19#,ST19#199208-199510

main68720-12150iAT19#,CT19#,ST195199510-199608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12130iAT19#,CT19#,ST19#199208-199510

main68710-12150iAT19#,CT19#,ST195199510-199608

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-20090-B1×2iAT19#,CT19#,ST195..SG,SGI199208-199608

SHADOW GRAY,TRIM1#

main69260-20090-E0×2iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

main69260-20090-E1×2iAT19#,CT19#,ST195..SG,SGI199208-199408

DARK ROSE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAT19#,CT19#,ST195..SG,SGI199208-199608

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iAT19#,CT19#,ST195..SG,SGI199208-199608

NATURAL WHITE,TRIM1#,4#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20220iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20240iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-20300iAT19#,CT19#,ST195..SG,SGI199208-199608

main69810-20310iAT19#..SG,SGI; CT19#,ST195..SG199408-199412

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-32010×2iCT190..SG199308-199408

main69813-32040iAT19#,CT190..SG,SGI; CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI199512-199608

main69814-32010iAT19#,CT190..SG,SGI; CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI199512-199608

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-20320iAT19#,CT19#,ST195..SG,SGI199208-199608

main69820-20330iAT19#..SG,SGI; CT19#,ST195..SG199408-199412

9010508320

main90105-08320

9010508322

main90105-08322

9017906070

main90179-06070

15 parts on this diagram · 1 diagram in section
