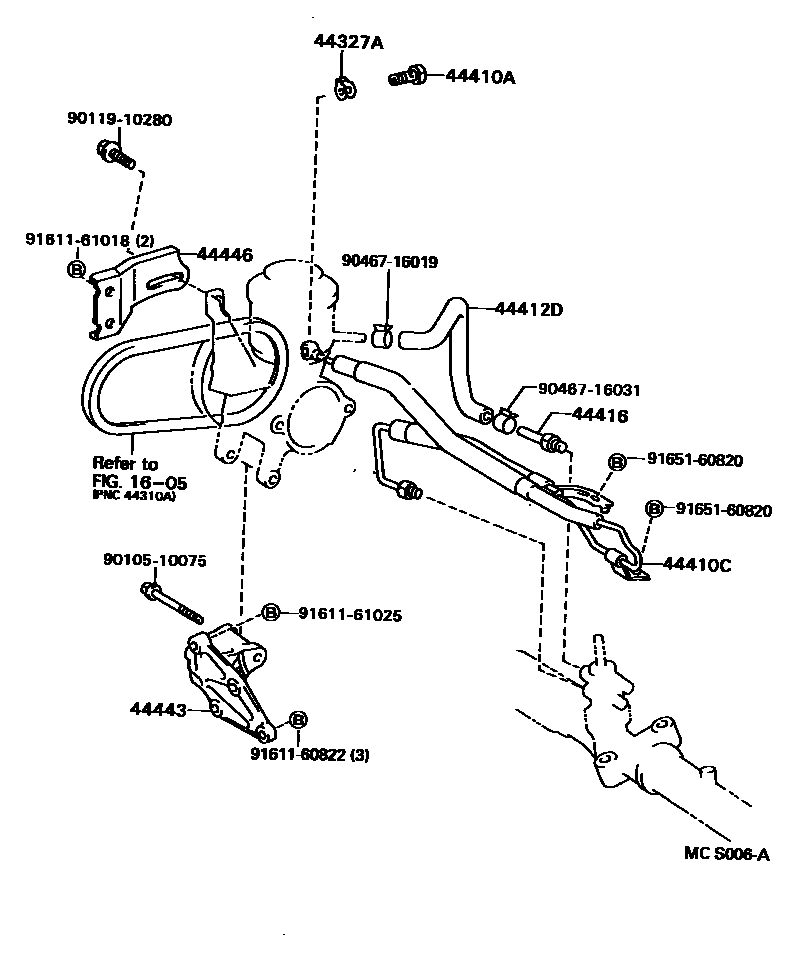

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT19#,CT19#,ST19#199208-199608

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT19#,CT19#,ST19#199208-199608

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-20680iAT19#199208-199402

main44410-20730iST195199208-199501

main44410-20750iCT190199208-199608

main44410-20790iST190199208-199402

main44410-20840iCT195199208-199608

main44410-2B050iAT19#199402-199608

main44410-2B080iST190199402-199408

main44410-2B140iST195199501-199601

main44410-2B181iST195199601-199608

44412DHOSE, RETURN, NO.1

main44412-20190iAT19#199208-199608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iAT19#,CT19#,ST19#199208-199608

44443BRACKET, PUMP

main44443-12050iAT19#199208-199608

main44443-20050iST195199208-199608

main44443-32070iST190199208-199408

44446STRUT, ADJUSTING

main44446-12060iAT190,192199208-199608

main44446-12090iAT191199408-199608

9010510075

main90105-10075

9011910280

main90119-10280

9046716019

main90467-16019

9046716031

main90467-16031

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160820

main91651-60820

16 parts on this diagram · 6 diagrams in section
