FRONT AXLE HUB

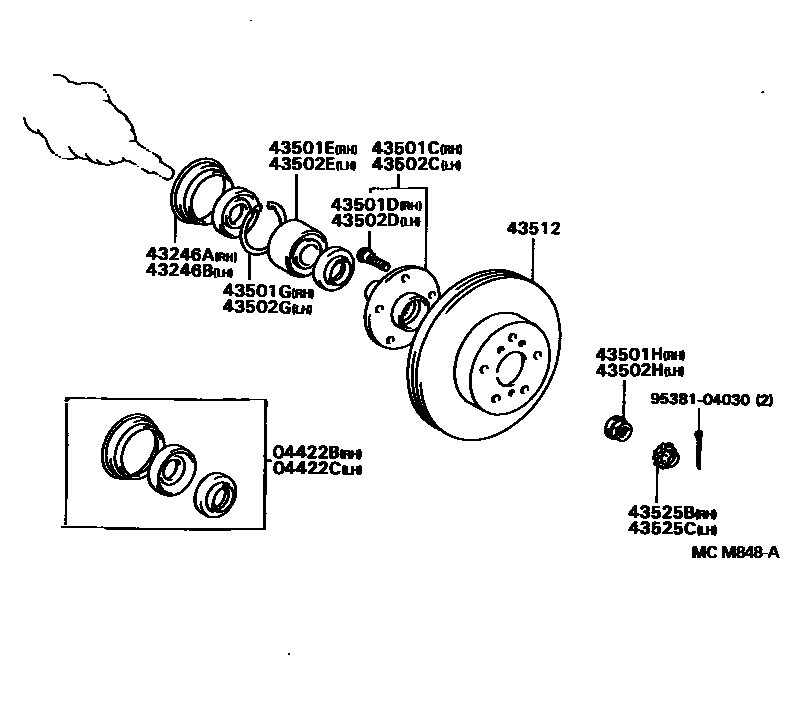

Parts diagram

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12060i199601-199608

175/70R14,5.5JJ

main04422-20080i199601-199608

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12060i199601-199608

175/70R14,5.5JJ

main04422-20080i199601-199608

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020i199408-199608

main43246-12040i199408-199608

175/70R14,5.5JJ

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020i199208-199408

main43246-12040i199408-199608

175/70R14,5.5JJ

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-20131i199408-199608

175/70R14,5.5JJ

main43502-20150i199208-199608

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i199208-199608

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38003i199208-199608

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i199208-199608

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22020i199208-199608

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-20131i199408-199608

175/70R14,5.5JJ

main43502-20150i199208-199608

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i199208-199608

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38003i199208-199608

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i199208-199608

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22020i199208-199608

43512DISC, FRONT

main43512-20450×2i199408-199608

175/70R14,5.5JJ

main43512-20470×2i199208-199608

main43512-20530×2i199208-199608

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i199208-199608

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i199208-199608

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section
