V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main99365-20970i4AFE,5AFE,7AFE..AT19#199208-199608

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i3SFE,4SFE..ST19#..MTM..(SG,SX)199208-199303

main90916-02356i3SFE,4SFE..ST19#..SG,SX199303-199402

main90916-02357i3SFE,4SFE..ST19#..ATM..(SG,SX)199208-199303

main90916-02358i3SFE,4SFE..ST19#..ATM..(SG,SX)199208-199303

main90916-02372i2C..CT19#199208-199608

44310ABELT, V(FOR VANE PUMP)

main90916-02256iCT19#..SG199208-199408

main99363-70760iST19#199208-199406

main99363-80630iAT19#199208-199608

main99363-80760iST19#199406-199608

main99365-21110iCT19#..SG199408-199508

main99365-81110iCT19#..SG199508-199608

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02344iST19#199208-199508

main90916-02345iST19#199208-199608

main99364-20870iAT19#199308-199408

main99364-80870iAT19#199309-199408

main99365-21210iCT19#199408-199608

main99365-81210iCT19#199408-199508

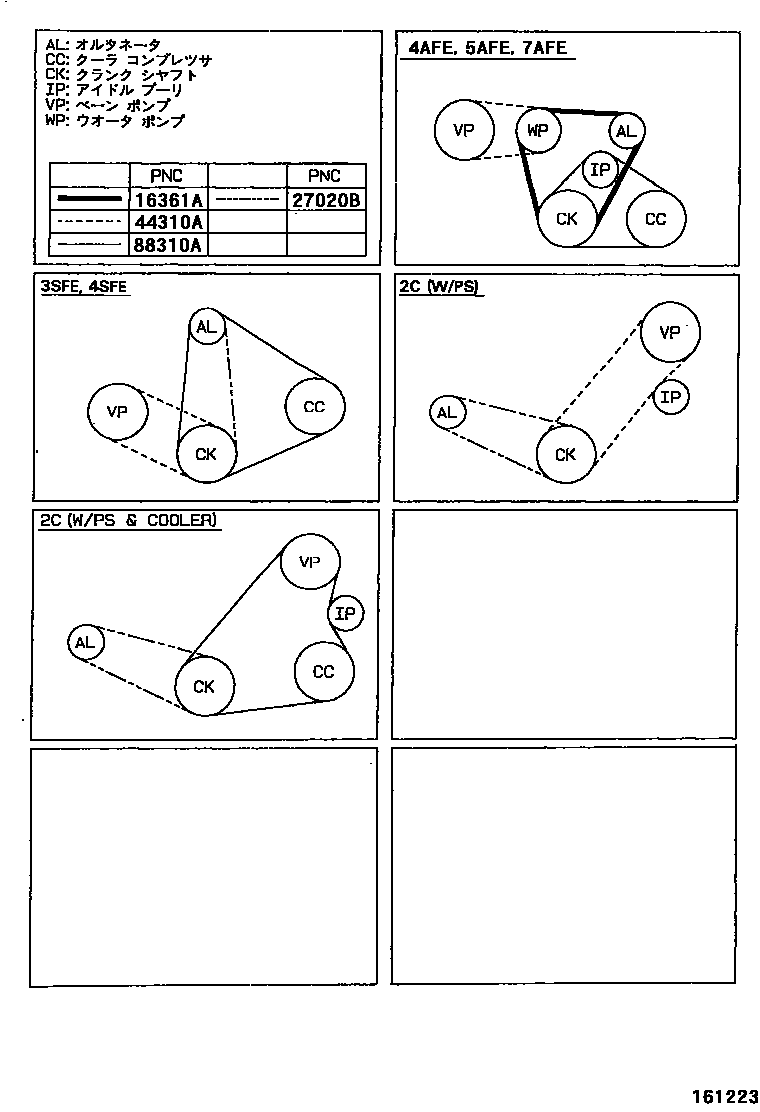

4 parts on this diagram · 1 diagram in section
