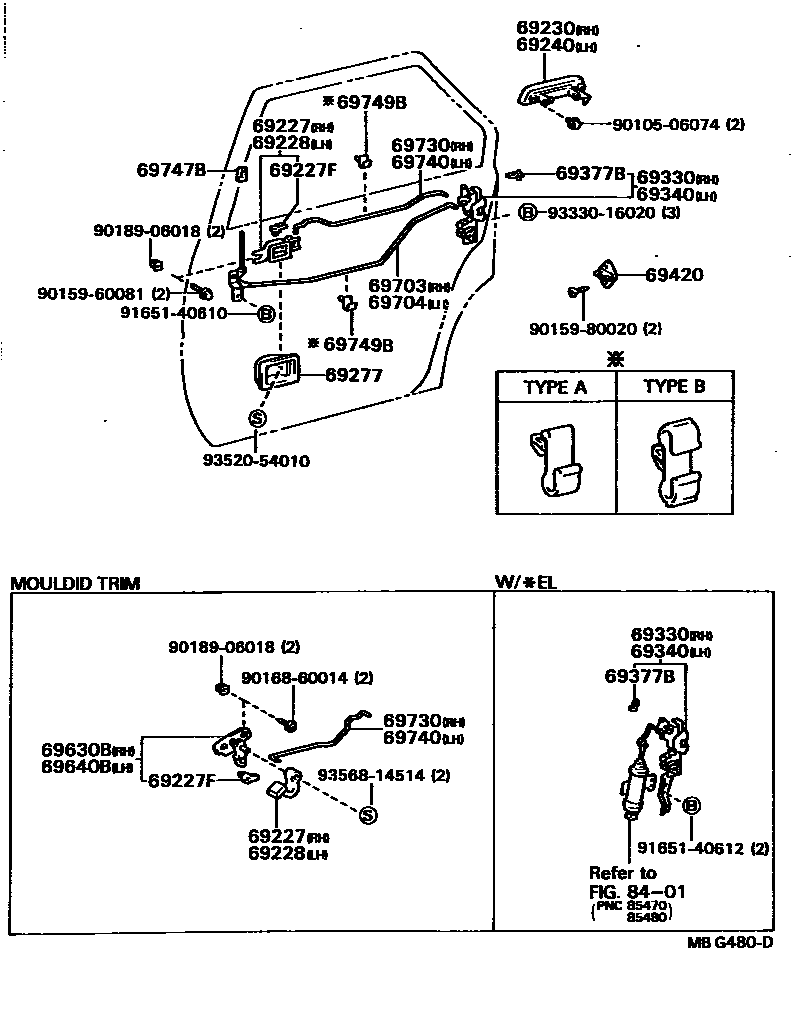

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69205-12070-03iAT15#,160,CT150,ST150; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69205-12070-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69205-12070-16iAT15#,CT150..SG198508-198605

SEPIA BROWN,SEPIA BROWN,TRIM4#

main69205-12070-25iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main69205-12070-33iAT15#,160,CT150,ST150198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main69205-12070-54iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main69271-20080-03iCT150,ST150,162..GTR,SE198405-198605

W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main69271-20080-04iCT150,ST150..SE198405-198602

W/*PW,BLUE,BLUE,TRIM8#

main69271-20080-05iAT150,CT150,ST150..SG198712-198804

MY ROAD,BEIGE,DARK BEIGE,TRIM4#

main69271-20080-13iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198804

W/*PW,GRAY,MEDIUM GRAY,TRIM1#

main69271-20080-14iAT150,CT150,ST150..SE198605-198804

W/*PW,BLUE,DARK BLUE,TRIM8#

main69271-20080-24iCT150,ST150..SE198602-198605

W/*PW,BLUE,BLUE,TRIM8#

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69759-20060iAT15#,160,CT150,ST150,162198405-198804

RH

main69759-20070iAT15#,160,CT150,ST150,162198405-198804

LH

69228HANDLE, REAR DOOR INSIDE, LH

main69206-12070-03iAT15#,160,CT150,ST150; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69206-12070-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69206-12070-16iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,SEPIA BROWN,TRIM4#

main69206-12070-25iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main69206-12070-33iAT15#,160,CT150,ST150198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main69206-12070-54iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main69272-20050-03iCT150,ST150,162..GTR,SE198405-198605

W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main69272-20050-04iCT150,ST150..SE198405-198602

W/*PW,BLUE,BLUE,TRIM8#

main69272-20050-05iAT150,CT150,ST150..SG198712-198804

MY ROAD,BEIGE,DARK BEIGE,TRIM4#

main69272-20050-13iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198804

W/*PW,GRAY,MEDIUM GRAY,TRIM1#

main69272-20050-14iAT150,CT150,ST150..SE198605-198804

W/*PW,BLUE,DARK BLUE,TRIM8#

main69272-20050-24iCT150,ST150..SE198602-198605

W/*PW,BLUE,BLUE,TRIM8#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20110iAT15#,160,ST162..DX,GT,GTR,ST198405-198804

main69230-20120iAT15#,CT150,ST150..SE,SG198405-198804

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20110iAT15#,160,ST162..DX,GT,GTR,ST198405-198804

main69240-20120iAT15#,CT150,ST150..SE,SG198405-198804

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-32020-04×2iAT15#,CT150,ST150; ST150198405-198602

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69277-32020-10×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main69277-32020-26×2iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main69277-32020-33×2iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,MY ROAD,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69277-32020-43×2iAT15#,160,CT150,ST150198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main69277-32020-44×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main69277-32020-54×2iAT15#,CT150,ST150; ST150198602-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

69330LOCK ASSY, REAR DOOR, RH

main69330-20200iAT15#,160,CT150,ST150198405-198804

main69330-20210iCT150,ST150,162..GTR,SE198405-198605

W/*EL

69340LOCK ASSY, REAR DOOR, LH

main69340-20190iAT15#,160,CT150,ST150198405-198804

main69340-20200iAT160198508-198605

GT-R,W/*EL

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-20080×2iAT15#,160,CT150,ST150,162198405-198804

LH

main69759-20090×2iAT15#,160,CT150,ST150,162198405-198804

RH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-12050×2iAT15#,160,CT150,ST150,162198405-198804

69630BCONTROL ASSY, REAR DOOR LOCK REMOTE, RH

main69610-20070iCT150,ST150,162..GTR,SE198405-198605

69640BCONTROL ASSY, REAR DOOR LOCK REMOTE, LH

main69620-20040iCT150,ST150,162..GTR,SE198405-198605

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-20040iAT15#,160,CT150,ST150,162198405-198804

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-20040iAT15#,160,CT150,ST150,162198405-198804

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-20060iAT15#,160,CT150,ST150198405-198804

main69713-20070iAT150,CT150,ST150..SG198712-198804

MY ROAD

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-20060iAT15#,160,CT150,ST150198405-198804

main69714-20070iAT150,CT150,ST150..SG198712-198804

MY ROAD

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-32010-04×2iAT15#,CT150,ST150; ST150198405-198602

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69741-32010-15×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main69741-32010-23×2iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69741-32010-34×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main69741-32010-36×2iAT15#,CT150..SG198508-198605

SEPIA BROWN,BROWN,TRIM4#

main69741-32010-43×2iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main69741-32010-44×2iAT15#,CT150,ST150; ST150198602-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040×2iAT15#,160,CT150,ST150,162198605-198804

TYPE B

main69749-20010×4iAT15#,160,CT150,ST150,162198405-198804

TYPE A

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506074

main90105-06074

9015960081

main90159-60081

9015980020

main90159-80020

9016860014

main90168-60014

9018906018

main90189-06018

9165140610

main91651-40610

9165140612

main91651-40612

9333016020

main93330-16020

9352054010

main93520-54010

9356814514

main93568-14514

29 parts on this diagram · 1 diagram in section
