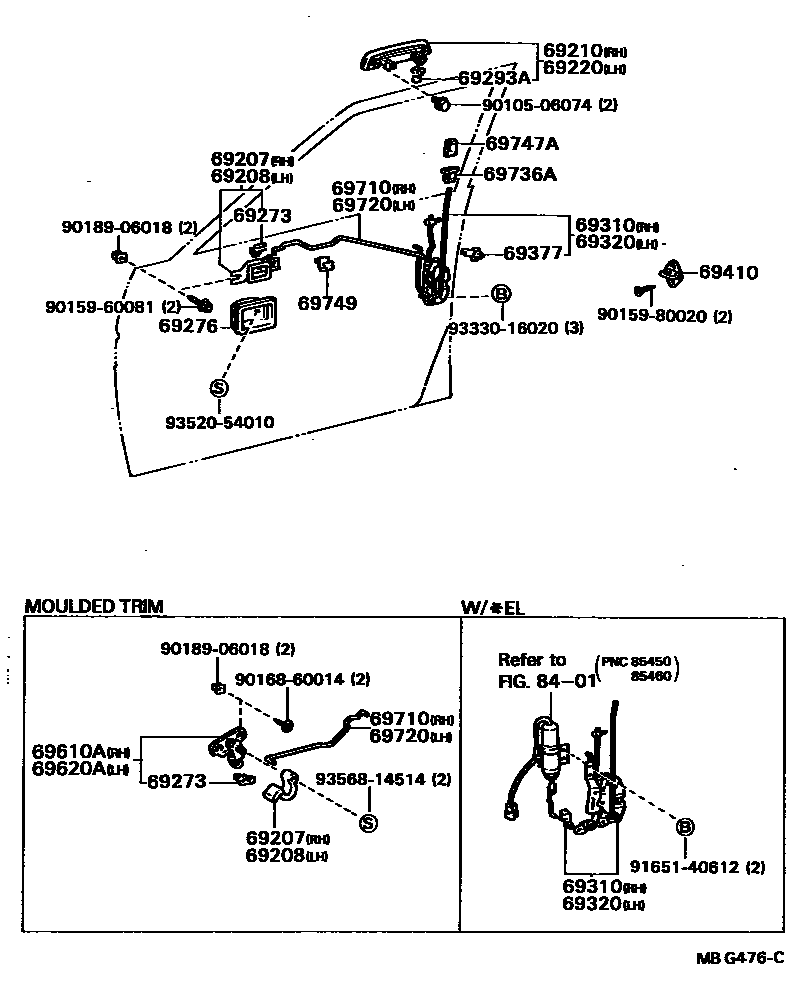

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-03iAT15#,160,CT150,ST150; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69205-12070-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69205-12070-16iAT15#,CT150..SG198508-198605

SEPIA BROWN,SEPIA BROWN,TRIM4#

main69205-12070-25iAT15#,CT150,ST150..SE,SG,ST198712-198804

BEIGE,DARK BEIGE,TRIM4#

main69205-12070-33iAT15#,160,CT150,ST150198712-198804

GRAY,MEDIUM GRAY,TRIM1#

main69205-12070-54iAT15#,CT150,ST150..SE,SG,ST198712-198804

BLUE,DARK BLUE,TRIM8#

main69205-20080-03iAT15#,160,CT150,ST150198709-198712

GRAY,MEDIUN GRAY,TRIM1#

main69205-20080-04iAT15#,CT150,ST150..SE,SG,ST198709-198712

BLUE,DARK BLUE,TRIM8#

main69205-20080-05iAT15#,CT150,ST150..SE,SG,ST198709-198712

BEIGE,DARK BEIGE,TRIM4#

main69271-20080-03iAT160198508-198605

GT-R,W/*PW,GRAY,SHADOW GRAY,TRIM1#

main69271-20080-04iCT150,ST150..SE198405-198602

W/*PW,BLUE,BLUE,TRIM8#

main69271-20080-05iAT150,CT150,ST150..SG198712-198804

MY ROAD,BEIGE,DARK BEIGE,TRIM4#

main69271-20080-13iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198804

W/*PW,GRAY,MEDIUM GRAY,TRIM1#

main69271-20080-14iAT150,CT150,ST150..SE198605-198804

W/*PW,BLUE,DARK BLUE,TRIM8#

main69271-20080-24iCT150,ST150..SE198602-198605

W/*PW,BLUE,BLUE,TRIM8#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-03iAT15#,160,CT150,ST150; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69206-12070-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69206-12070-16iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,SEPIA BROWN,TRIM4#

main69206-12070-25iAT15#,CT150,ST150..SE,SG,ST198605-198709

BEIGE,DARK BEIGE,TRIM4#

main69206-12070-33iAT15#,160,CT150,ST150198712-198804

GRAY,MEDIUM GRAY,TRIM1#

main69206-12070-54iAT15#,CT150,ST150..SE,SG,ST198712-198804

BLUE,DARK BLUE,TRIM8#

main69206-20090-03iAT15#,160,CT150,ST150198709-198712

GRAY,MEDIUM GRAY,TRIM1#

main69206-20090-04iAT15#,CT150,ST150..SE,SG,ST198709-198712

BLUE,DARK BLUE,TRIM8#

main69206-20090-05iAT15#,CT150,ST150..SE,SG,ST198709-198712

BEIGE,DARK BEIGE,TRIM4#

main69272-20050-03iAT160198508-198605

GT-R,W/*PW,GRAY,SHADOW GRAY,TRIM1#

main69272-20050-04iCT150,ST150..SE198405-198602

W/*PW,BLUE,BLUE,TRIM8#

main69272-20050-05iAT150,CT150,ST150..SE198605-198804

W/*PW,BEIGE,DARK BEIGE,TRIM4#

main69272-20050-13iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198804

W/*PW,GRAY,MEDIUM GRAY,TRIM1#

main69272-20050-14iAT150,CT150,ST150..SE198605-198804

W/*PW,BLUE,DARK BLUE,TRIM8#

main69272-20050-24iCT150,ST150..SE198602-198605

W/*PW,BLUE,BLUE,TRIM8#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20090iAT15#,160,ST162..DX,GT,GTR,ST198405-198804

main69210-20100iAT160,ST162198508-198804

FULL COLLAR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20090iAT15#,160,ST162..DX,GT,GTR,ST198405-198804

main69220-20100iAT160,ST162198508-198804

FULL COLLAR

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iAT15#,160,CT150,ST150198709-198712

RH

main69759-20060iAT15#,160,CT150,ST150,162198405-198709

RH

main69759-20070iAT15#,160,CT150,ST150198712-198804

LH

main69759-24070iAT15#,160,CT150,ST150198709-198712

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-04×2iAT15#,CT150,ST150; ST150198405-198602

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69277-32020-10×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main69277-32020-26×2iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#

main69277-32020-33×2iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69277-32020-43×2iAT15#,160,CT150,ST150198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main69277-32020-44×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main69277-32020-54×2iAT15#,CT150,ST150; ST150198602-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-16050iAT15#,160,ST162..DX,GT,GTR,ST; AT15#,CT150,ST150..SE,SG198405-198804

LH; RH

main69293-16060iAT15#,160,ST162..DX,GT,GTR,ST; AT15#,CT150,ST150..SE,SG198405-198804

LH; RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-20270iAT15#,160,CT150,ST150198712-198804

main69310-20280iCT150,ST150,162..GTR,SE198405-198605

W/*EL

main69310-20380iAT150,160,CT150,ST150,162..GT,GTR,SE; AT150,ST150..SG198712-198804

MY ROAD,W/*EL; W/*EL

main69310-20560iAT15#,160,CT150,ST150198709-198712

main69310-20570iAT150,160,CT150,ST150,162..GT,GTR,SE; AT150,CT150,ST150..SG198709-198712

MY ROAD,W/*EL; W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-20270iAT15#,160,CT150,ST150198405-198709

main69320-20280iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198709

W/*EL

main69320-20550iAT15#,160,CT150,ST150198709-198712

main69320-20560iAT150,160,CT150,ST150,162..GT,GTR,SE; AT150,CT150,ST150..SG198709-198712

MY ROAD,W/*EL; W/*EL

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20080×2iAT15#,160,CT150,ST150,162198405-198709

RH

main69759-20090×2iAT15#,160,CT150,ST150,162198405-198709

LH

main69759-24050×2iAT15#,160,CT150,ST150,162198709-198712

RH

main69759-24060×2iAT15#,160,CT150,ST150,162198709-198712

LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050×2iAT15#,160,CT150,ST150,162198405-198804

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-20070iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198804

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-20040iAT160198508-198605

GT-R,W/*PW

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-20070iAT15#,160,CT150,ST150198405-198709

main69711-20080iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198804

W/*PW

main69711-20140iAT15#,160,CT150,ST150198709-198712

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-20070iAT15#,160,CT150,ST150198405-198709

main69712-20080iAT150,160,CT150,ST150,162..GT,GTR,SE198605-198804

W/*PW

main69712-20140iAT15#,160,CT150,ST150198709-198712

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030×2iAT15#,160,CT150,ST150,162198407-198804

main69736-22021×2iAT15#,CT150,ST150198405-198407

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-04×2iAT15#,CT150,ST150; ST150198405-198602

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main69741-32010-15×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main69741-32010-23×2iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main69741-32010-34×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main69741-32010-36×2iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main69741-32010-43×2iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main69741-32010-44×2iAT15#,CT150,ST150; ST150198602-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010×2iAT15#,160,CT150,ST150198709-198712

main69749-20010×2iST162198709-198804

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506074

main90105-06074

9015960081

main90159-60081

9015980020

main90159-80020

9016860014

main90168-60014

9018906018

main90189-06018

9165140612

main91651-40612

9333016020

main93330-16020

9352054010

main93520-54010

9356814514

main93568-14514

28 parts on this diagram · 1 diagram in section
