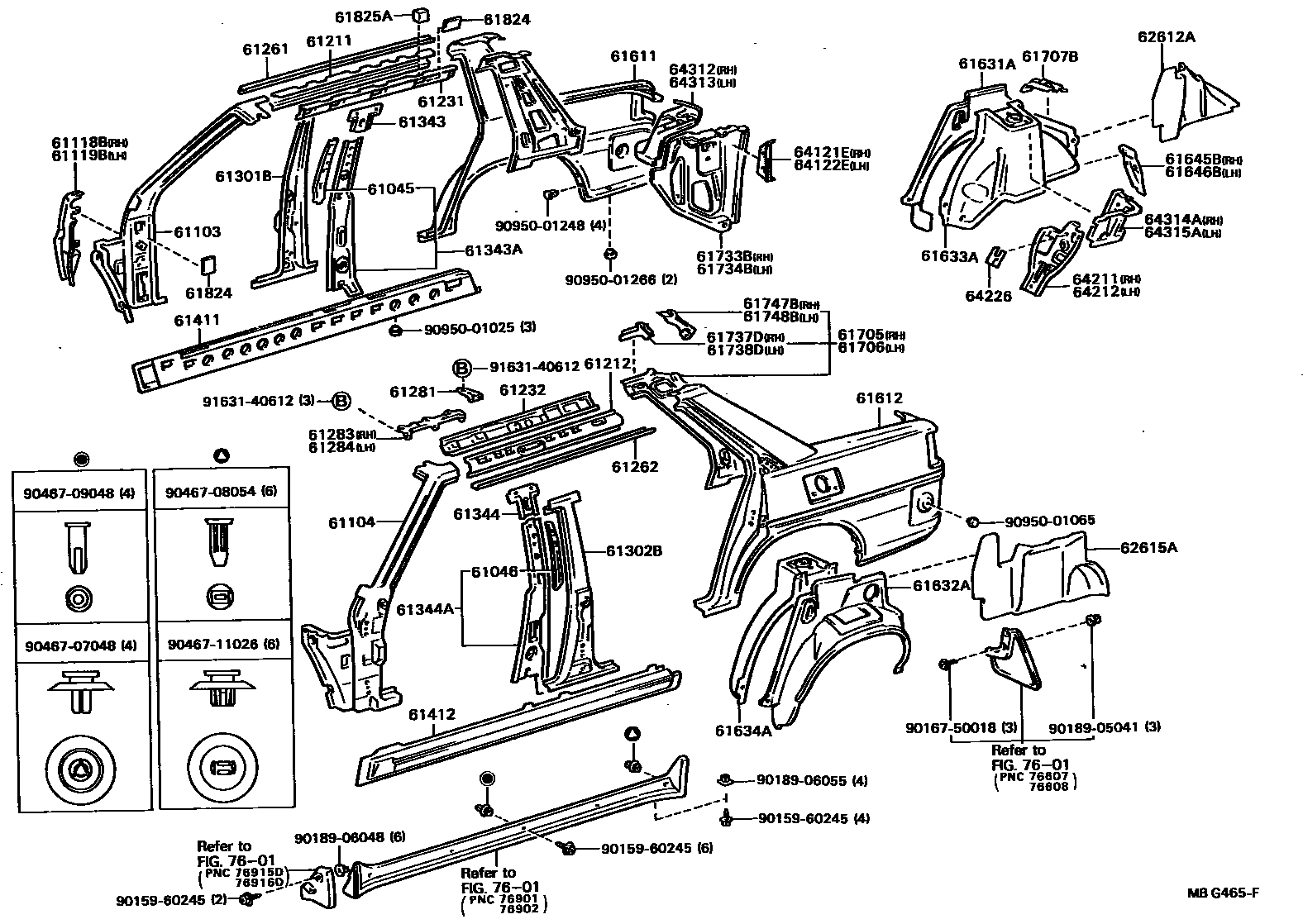

SIDE MEMBER

61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH

main61045-20010iAT15#,160,CT150,ST150,162198605-198804

61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH

main61046-20010iAT15#,160,CT150,ST150,162198605-198804

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-20360iCT150,ST150,162..GTR,SE198405-198605

main61021-20370iAT15#; AT160,CT150..GT,SG; ST150198405-198605

SE-CUSTOM

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-20340iAT15#,160,CT150,ST150,162198405-198804

61118BSEAL, FRONT BODY PILLAR TO FRONT FENDER, RH

main61118-20020iAT15#,160,CT150,ST150,162198508-198804

61119BSEAL, FRONT BODY PILLAR TO FRONT FENDER, LH

main61119-20020iAT15#,160,CT150,ST150,162198508-198804

61211RAIL, ROOF SIDE, OUTER RH

main61211-20130iAT15#,160,CT150,ST150,162198405-198804

61212RAIL, ROOF SIDE, OUTER LH

main61212-20130iAT15#,160,CT150,ST150,162198405-198804

61231RAIL, ROOF SIDE, INNER RH

main61231-20180iAT15#,160,CT150,ST150,162198405-198804

61232RAIL, ROOF SIDE, INNER LH

main61232-20170iAT15#,160,CT150,ST150,162198405-198804

61261CHANNEL, ROOF DRIP, RH

main61265-20050iAT15#,160,CT150,ST150,162198405-198804

61262CHANNEL, ROOF DRIP, LH

main61266-20050iAT15#,160,CT150,ST150,162198405-198804

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-20020×2iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198405-198804

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-20020iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198405-198804

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-20020iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198405-198804

61301BPILLAR, CENTER BODY, OUTER RH

main61301-20200iAT15#,160,CT150,ST150,162198405-198804

61302BPILLAR, CENTER BODY, OUTER LH

main61302-20210iAT15#,160,CT150,ST150,162198405-198804

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-20070iAT15#,160,CT150,ST150,162198405-198804

61343APILLAR, CENTER BODY, INNER RH

main61343-20900iAT15#,160,CT150,ST150,162198405-198804

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-20070iAT15#,160,CT150,ST150,162198405-198804

61344APILLAR, CENTER BODY, INNER LH

main61344-20900iAT15#,160,CT150,ST150,162198405-198804

61411PANEL, ROCKER, OUTER RH

main61401-20160iAT15#,160,CT150,ST150,162198405-198804

61412PANEL, ROCKER, OUTER LH

main61402-20160iAT15#,160,CT150,ST150,162198405-198804

61611PANEL, QUARTER, RH

main61601-2B050iAT15#,160,CT150,ST150,162198405-198804

61612PANEL, QUARTER, LH

main61602-20870iAT15#,160,CT150,ST150,162198405-198804

main61602-2B430iAT150..SG198605-198610

JEUNE

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20150iAT15#,160,CT150,ST150,162198405-198804

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20120iAT15#,160,CT150,ST150,162198405-198804

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20070iAT15#,CT150,ST150198405-198804

main61607-20120iAT160,ST162198508-198804

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20090iAT15#,CT150,ST150198405-198804

main61608-20140iAT160,ST162198508-198804

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-20050iAT15#,160,CT150,ST150,162198405-198804

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-20050iAT15#,160,CT150,ST150,162198405-198804

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-20180iAT15#,160,CT150,ST150,162198405-198804

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-20190iAT15#,160,CT150,ST150,162198405-198804

61707BSUPPORT, JACK CARRIER

main58792-20020iAT15#,CT150,ST150198405-198508

main58792-20021iAT15#,160,CT150,ST150,162198508-198804

61733BPANEL, ROOF SIDE, INNER REAR RH

main61735-20060iAT15#,160,CT150,ST150,162198405-198804

61734BPANEL, ROOF SIDE, INNER REAR LH

main61736-20060iAT15#,160,CT150,ST150,162198405-198804

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-20040iAT15#,160,CT150,ST150,162198405-198804

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-20030iAT15#,160,CT150,ST150,162198405-198804

61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH

main61747-20050iAT15#,160,CT150,ST150,162198405-198804

61748BREINFORCEMENT, ROOF SIDE, INNER REAR, LH

main61748-20040iAT15#,160,CT150,ST150,162198405-198804

61824PLATE, NOISE CONTROL, NO.1

main61824-20090×6iAT15#,160,CT150,ST150,162198504-198804

61825APLATE, NOISE CONTROL, NO.2

main61824-12010×2iAT15#,160,CT150,ST150,162198605-198804

62612APAD, QUARTER WHEEL HOUSE, NO.2

main62612-20060iAT160,ST162198508-198804

62615APAD, QUARTER WHEEL HOUSE, NO.3

main62615-20040iAT160,ST162198508-198804

64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64121-20020iAT15#,160,CT150,ST150,162198405-198804

64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64122-20020iAT15#,160,CT150,ST150,162198405-198804

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-20100iAT15#,CT150,ST150198405-198804

main64211-20130iAT160,ST162198508-198804

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-20110iAT15#,CT150,ST150198405-198804

main64212-20140iAT160,ST162198508-198804

64226HANGER, REAR SEAT CUSHION SUPPORT

main64225-22020×2iAT15#,160,CT150,ST150,162198405-198804

64312BRACKET, PACKAGE TRAY, RH

main64312-20100iAT15#,160,CT150,ST150,162198405-198804

64313BRACKET, PACKAGE TRAY, LH

main64313-20100iAT15#,160,CT150,ST150,162198405-198804

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-20060iAT15#,CT150,ST150198405-198804

main64314-20080iAT160,ST162198508-198804

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-20050iAT15#,CT150,ST150198405-198804

main64315-20060iAT160,ST162198508-198804

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015960245

main90159-60245

9016750018

main90167-50018

9018905041

main90189-05041

9018906048

main90189-06048

9018906055

main90189-06055

9046707048

main90467-07048

9046708054

main90467-08054

9046709048

main90467-09048

9046711026

main90467-11026

9095001025

main90950-01025

9095001065

main90950-01065

9095001248

main90950-01248

9095001266

main90950-01266

9163140612

main91631-40612

68 parts on this diagram · 1 diagram in section
