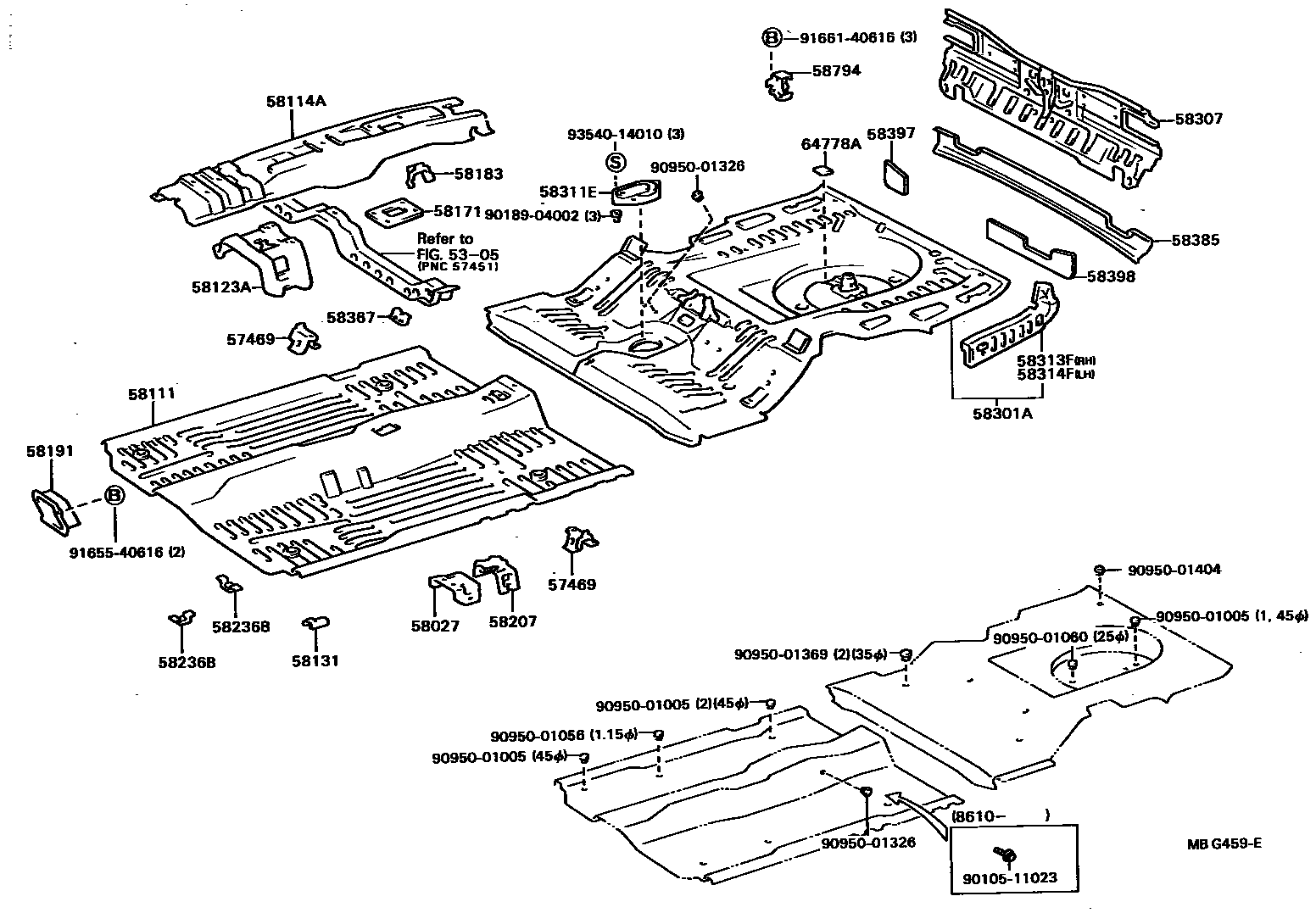

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

57469BRACKET, FRONT SEAT, OUTSIDE

main57468-20030iAT15#,160,CT150,ST150,162198405-198804

RH

main57469-20030iAT15#,160,CT150,ST150,162198405-198804

LH

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58027-20020iAT15#,CT150,ST150198405-198508

main58027-20021iAT15#,160,CT150,ST150,162198508-198804

58111PAN, FRONT FLOOR

main58111-20060iAT15#,CT150,ST150198405-198508

main58111-20061iAT15#,160,CT150,ST150,162198508-198804

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-20010iAT15#,CT150,ST150198405-198508

main58114-20011iAT15#,160,CT150,ST150,162198508-198804

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20010iAT15#,160,CT150,ST150,162198405-198804

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-20040iAT15#,160,CT150,ST150,162198405-198804

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20040iAT15#,160,CT150,ST150,162198405-198804

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-20040iAT15#,160,CT150,ST150,162198405-198804

RH

main58184-20040iAT15#,160,CT150,ST150,162198405-198804

LH

58191FOOTREST, FRONT FLOOR

main58191-20010iAT15#,160,CT150,ST150,162198405-198804

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-20060iAT15#,CT150,ST150198405-198508

main58207-20080iAT15#,160,CT150,ST150,162198508-198804

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAT15#,160,CT150,ST150,162198405-198804

58301APANEL SUB-ASSY, REAR FLOOR

main58301-20530iAT160,ST162198508-198804

W/O SUN ROOF

main58301-20540iAT160,ST162198508-198804

W/SUN ROOF

main58301-20904iAT15#,CT150,ST150198405-198804

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20430iAT15#,160,CT150,ST150,162198405-198605

main58307-20480iAT150..SG198405-198605

JEUNE

main58307-20540iAT15#,160,CT150,ST150,162198605-198804

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-20030iAT160,ST162198508-198804

main58325-32010iAT15#,CT150,ST150198405-198804

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-20110iAT15#,CT150,ST150198405-198804

main58313-20190iAT160,ST162198601-198804

main58313-20190iAT160,ST162198508-198601

W/O SUN ROOF

main58313-20200iAT160,ST162198508-198601

W/SUN ROOF

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-20090iAT15#,CT150,ST150198405-198804

main58314-20170iAT160,ST162198508-198601

W/O SUN ROOF

main58314-20170iAT160,ST162198601-198804

main58314-20180iAT160,ST162198508-198601

W/SUN ROOF

58367BRACKET, FUEL TUBE CLAMP

main58367-20030iAT15#,160,CT150,ST150,162198405-198804

58385PANEL, REAR VALANCE

main58308-20060iAT15#,160,CT150,ST150,162198405-198804

58397COVER, LOWER BACK, OUTER RH

main58397-20020iAT15#,160,CT150,ST150,162198405-198804

58398COVER, LOWER BACK, OUTER LH

main58398-20010iAT15#,160,CT150,ST150,162198405-198804

58794CARRIER, JACK

main58791-20010iAT15#,CT150,ST150198405-198508

main58791-20030iAT15#,160,CT150,ST150,162198508-198804

64778APROTECTOR, SPARE WHEEL

main64778-20020iAT15#,160,CT150,ST150,162198405-198804

9010511023

main90105-11023

9018904002

main90189-04002

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001326

main90950-01326

9095001369

main90950-01369

9095001404

main90950-01404

9165540616

main91655-40616

9166140616

main91661-40616

9354014010

main93540-14010

34 parts on this diagram · 2 diagrams in section
