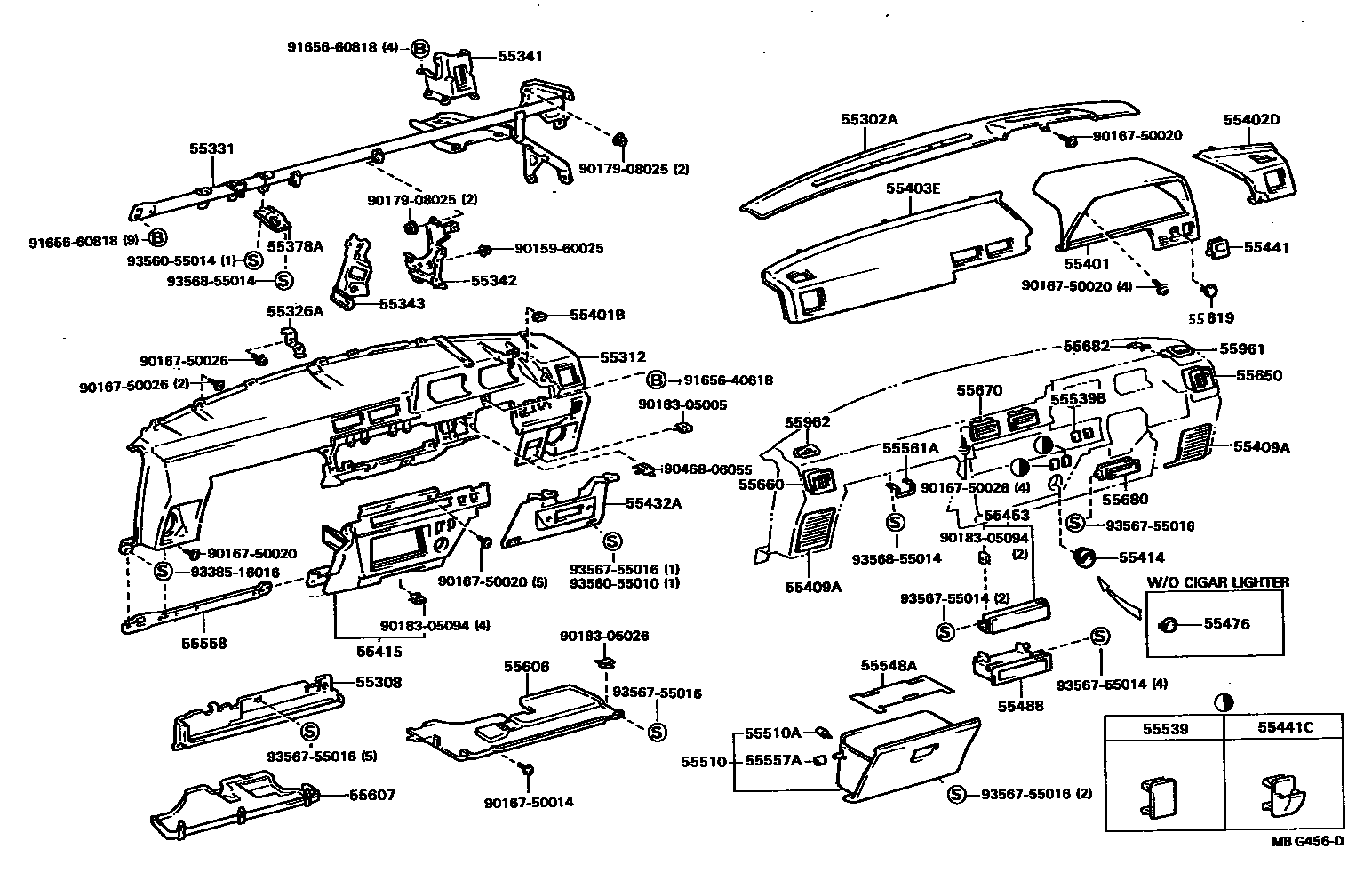

INSTRUMENT PANEL & GLOVE COMPARTMENT

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-20060-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55302-20060-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55302-20060-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55302-20060-06iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main55302-20060-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55302-20060-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-20060-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55611-20060-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55611-20060-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55611-20060-06iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main55611-20060-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55611-20060-24iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55312PANEL, INSTRUMENT, LOWER

main55312-20161-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#

main55312-20161-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55312-20161-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55312-20161-06iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,SEPIA BROWN,TRIM4#

main55312-20161-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55312-20161-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-20030iAT15#,160,CT150,ST150,162198405-198804

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20050iAT15#,CT150,ST150198405-198507

main55330-20051iAT15#,160,CT150,ST150,162198507-198804

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-20081iAT15#,160,CT150,ST150,162198405-198804

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-20120iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198605-198804

main55306-20130iAT150..DX198605-198804

main55351-20060iAT15#,160,CT150,ST150,162198405-198605

55343BRACE, INSTRUMENT PANEL, NO.3

main55307-20100iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198605-198804

main55307-20110iAT150..DX198605-198804

main55352-20080iAT15#,160,CT150,ST150,162198405-198605

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-20070iAT15#,160,CT150,ST150,162198405-198804

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-20170-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55404-20170-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55404-20170-06iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main55404-20220-03iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55404-20220-04iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main55404-20220-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-20080×2iAT15#,160,CT150,ST150,162198405-198804

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-20120-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#

main55402-20120-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55402-20120-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55402-20120-06iAT15#,CT150..SG198508-198605

SEPIA BROWN,SEPIA BROWN,TRIM4#

main55402-20120-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55402-20120-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2

main55403-20020-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#

main55403-20020-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55403-20020-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55403-20020-06iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,SEPIA BROWN,TRIM4#

main55403-20020-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55403-20020-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-20080-03iAT15#,160,CT150,ST150,162; ST150198405-198605

RH,SHADOW GRAY,GRAY,TRIM1#; SE-CUSTOM,RH,SHADOW GRAY,GRAY,TRIM1#

main55472-20080-04iAT15#,CT150,ST150; ST150198405-198605

RH,BLUE,BLUE,TRIM8#; SE-CUSTOM,RH,BLUE,BLUE,TRIM8#

main55472-20080-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

RH,BEIGE,DARK BEIGE,TRIM4#

main55472-20080-06iAT15#,CT150..SG198508-198605

RH,SEPIA BROWN,BROWN,TRIM4#

main55472-20080-13iAT15#,160,CT150,ST150,162198605-198804

RH,GRAY,MEDIUM GRAY,TRIM1#

main55472-20080-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

RH,BLUE,DARK BLUE,TRIM8#

main55473-20070-03iAT15#,160,CT150,ST150,162; ST150198405-198605

LH,SHADOW GRAY,GRAY,TRIM1#; SE-CUSTOM,LH,SHADOW GRAY,GRAY,TRIM1#

main55473-20070-04iAT15#,CT150,ST150; ST150198405-198605

LH,BLUE,BLUE,TRIM8#; SE-CUSTOM,LH,BLUE,BLUE,TRIM8#

main55473-20070-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

LH,BEIGE,DARK BEIGE,TRIM4#

main55473-20070-06iAT15#,CT150..SG198508-198605

LH,SEPIA BROWN,BROWN,TRIM4#

main55473-20070-13iAT15#,160,CT150,ST150,162198605-198804

LH,GRAY,MEDIUM GRAY,TRIM1#

main55473-20070-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

LH,BLUE,DARK BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-20050iAT15#,160,CT150,ST150,162198405-198804

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20301-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#

main55412-20301-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55412-20301-06iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,SEPIA BROWN,TRIM4#

main55412-20310-03iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55412-20310-04iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main55412-20310-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20161-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#

main55432-20161-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55432-20161-06iAT15#,CT150..SG198508-198605

SEPIA BROWN,SEPIA BROWN,TRIM4#

main55432-20162-03iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55432-20162-04iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main55432-20162-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

55441BOX, INSTRUMENT PANEL

main58824-87002iAT15#..DX,SG,ST198405-198605

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-03iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55441-20140-04iAT15#,CT150,ST150..SE,SG,ST; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55441-20140-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55441-20140-06iAT15#,CT150..SG; ST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,SEPIA BROWN,TRIM4#; SEPIA BROWN,SEPIA BROWN,TRIM4#

main55441-20140-13iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55441-20140-34iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55453COVER, RADIO TUNER OPENING

main55522-20050iAT150..4F..DX198405-198804

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iAT150..4F..DX198405-198605

CUSTOM-DX,BLACK,BLACK

main55477-10010-13iAT150..4F..DX198605-198804

CUSTOM-DX,GRAY,MEDIUM GRAY,TRIM1#

55488COVER, STEREO OPENING

main55521-16010iAT15#,160,CT150,ST150,162198405-198804

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20100-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55550-20100-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55550-20100-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55550-20100-06iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#

main55550-20100-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55550-20100-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iAT15#,160,CT150,ST150,162198405-198804

55539COVER, SPARE SWITCH HOLE

main55539-24010-04×2iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55539-24010-13×2iAT15#,160,CT150,ST150; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55539-24010-15iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55539-24010-36×2iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main55539-24010-43×2iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55539-24010-44iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20040iAT15#,160,CT150,ST150,162..3FC,4F,5F198605-198804

main55539-32010-01iAT15#,160,CT150,ST150,162..3FC,4F,5F198405-198605

BLACK,BLACK

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-20040iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-10020×2iAT15#,160,CT150,ST150,162198405-198605

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-20050iAT15#,160,CT150,ST150,162198405-198804

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iAT15#,160,CT150,ST150,162198405-198804

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20070iCT150198405-198804

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-20030iCT150,ST150198405-198804

55619COVER, SWITCH HOLE

main55548-20060iAT15#,160,CT150,ST150,162198405-198605

main55548-20060-03iAT15#,160,CT150,ST150,162198605-198804

GRAY,GRAY,TRIM1#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20110-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55650-20110-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55650-20110-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55650-20110-06iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#

main55650-20110-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55650-20110-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20050-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55660-20050-04iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55660-20050-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55660-20050-06iAT15#,CT150..DX,SG198405-198508

SEPIA BROWN,BROWN,TRIM4#

main55660-20050-13iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55660-20050-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20040-03×2iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55670-20040-04×2iAT15#,CT150,ST150; ST150198405-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55670-20040-05×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main55670-20040-06×2iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#

main55670-20040-13×2iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55670-20040-14×2iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iAT15#,160,CT150,ST150,162198405-198804

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-14030iAT15#,160,CT150,ST150,162198405-198804

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20080-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55961-20080-04iAT15#,CT150,ST150; ST150198405-198602

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55961-20080-06iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#

main55961-20080-24iAT15#,CT150,ST150; ST150198602-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55961-20081-03iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55961-20081-04iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main55961-20081-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20080-03iAT15#,160,CT150,ST150,162; ST150198405-198605

SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#

main55962-20080-04iAT15#,CT150,ST150; ST150198405-198602

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55962-20080-06iST150198405-198605

SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#

main55962-20080-24iAT15#,CT150,ST150; ST150198602-198605

BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#

main55962-20081-03iAT15#,160,CT150,ST150,162198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main55962-20081-04iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main55962-20081-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

9015960025

main90159-60025

9016750014

main90167-50014

9016750020

main90167-50020

9016750026

main90167-50026

9017908025

main90179-08025

9018305005

main90183-05005

9018305026

main90183-05026

9018305094

main90183-05094

9046806055

main90468-06055

9165640618

main91656-40618

9165660818

main91656-60818

9338516016

main93385-16016

9356055010

main93560-55010

9356055014

main93560-55014

9356755014

main93567-55014

9356755016

main93567-55016

9356855014

main93568-55014

57 parts on this diagram · 1 diagram in section
