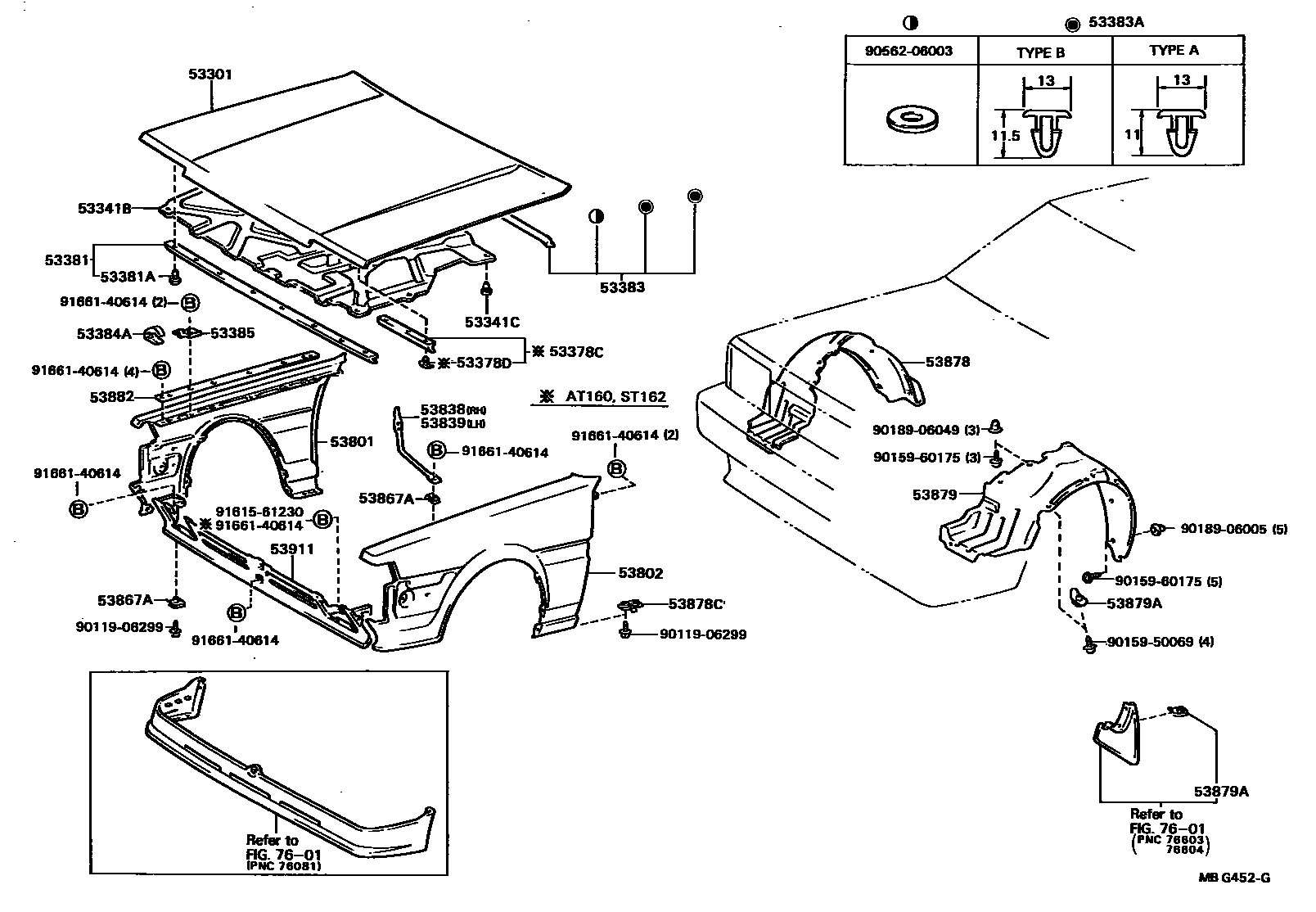

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341CCLIP(FOR HOOD INSULATOR)
53378CSEAL, HOOD AIR INTAKE DUCT
53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
TYPE A,DARK GRAY
TYPE B,NATURAL
53384ABUMPER, FENDER TO HOOD
53385RETAINER, HOOD, BUMPER
RH
LH
53801FENDER SUB-ASSY, FRONT RH
W/O *DM
W/O *DM
W/*DM
W/*DM,W/O FR SPOILER
W/O *DM,FR SPOILER
W/*DM,FR SPOILER
W/O *DM,W/FR SPOILER
W/*DM
W/*DM
W/O *DM
W/O *DM
MY LIFE,W/O *DM
MY LIFE,W/*DM
MY LIFE
53802FENDER SUB-ASSY, FRONT LH
W/O *DM
W/O *DM
W/*DM
W/*DM,W/O FR SPOILER
W/O *DM,FR SPOILER
W/*DM,FR SPOILER
W/O *DM,W/FR SPOILER
W/*DM
W/*DM
W/O *DM
W/O *DM
MY LIFE,W/O*DM
MY LIFE,W/*DM
MY LIFE
53838BRACE, FRONT FENDER, RH
53839BRACE, FRONT FENDER, LH
53867ARETAINER, FRONT FENDER
53878LINER, FRONT FENDER, RH
53878CSPACER, FRONT FENDER
53879LINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882PACKING, FRONT FENDER MAIN
53911PANEL, FRONT VALANCE
W/O SPOILER
W/SPOILER
W/O SPOILER
W/SPOILER
W/O SPOILER
W/SPOILER
W/SPOILER
W/O SPOILER
7601MUDGUARD & SPOILER
9011906299
main90119-06299
9015950069
main90159-50069
9015960175
main90159-60175
9018906005
main90189-06005
9018906049
main90189-06049
9056206003
main90562-06003
9161561230
main91615-61230
9166140614
main91661-40614
31 parts on this diagram · 1 diagram in section
