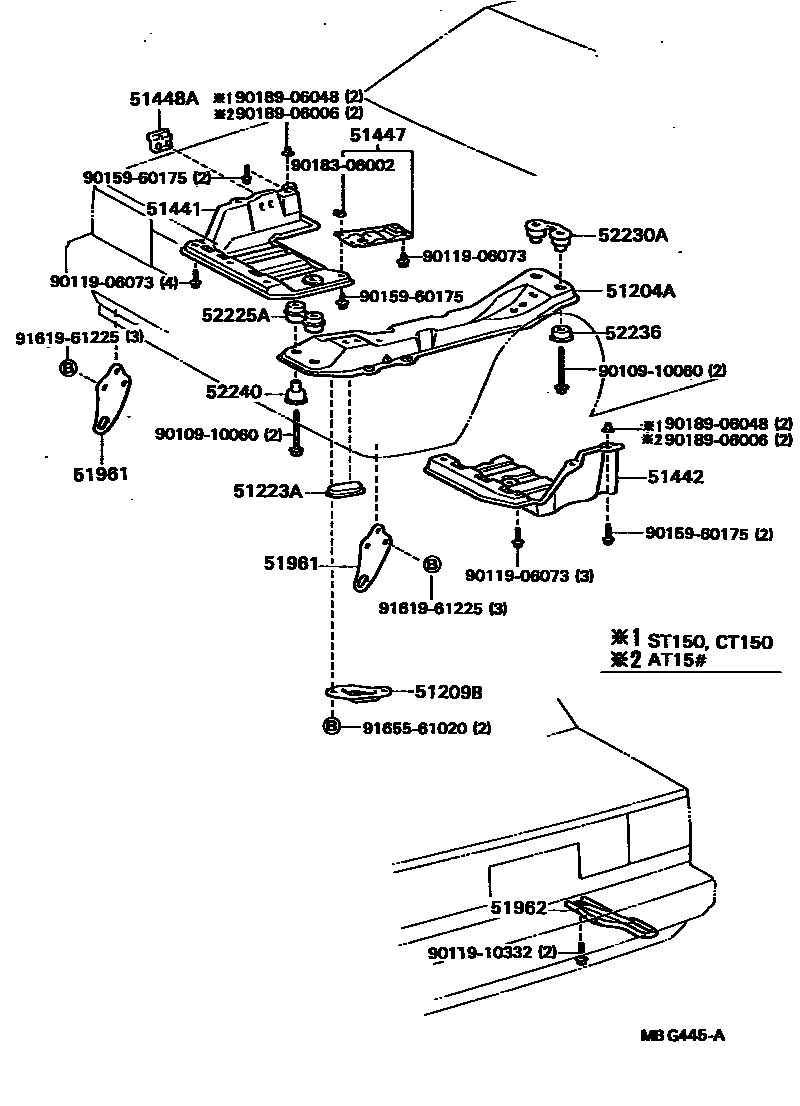

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20010iAT15#,CT150,ST150198405-198701

main51204-20011iAT15#,CT150,ST150198701-198804

main51204-20030iAT160,ST162198508-198804

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAT15#,CT150,ST150..ATM198405-198508

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020×2iAT15#,160,CT150,ST150,162198405-198804

51441COVER, ENGINE UNDER, NO.1

main51441-20080iAT15#,CT150,ST150198405-198804

main51441-20120iAT160,ST162198508-198804

51442COVER, ENGINE UNDER, NO.2

main51442-20010iAT15#,CT150,ST150..MTM198405-198804

main51442-20020iAT15#,CT150,ST150..ATM198405-198804

main51442-20040iAT160,ST162..5F198508-198804

main51442-20050iAT160..4FC198508-198804

main51442-20080iST162..4FC198508-198804

51447GUIDE, ENGINE UNDER COVER AIR

main51447-12070iAT15#198405-198804

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAT15#,CT150,ST150198405-198508

main51448-20030iAT15#,160,CT150,ST150,162198508-198804

51961HOOK, NO.1

main51963-20060×2iAT15#,CT150,ST150198405-198804

main51963-20070×2iAT160,ST162198508-198509

main51963-20080iAT160,ST162198509-198804

RH

main51964-20050iAT160,ST162198509-198804

LH

51962HOOK, NO.2

main51095-20040×2iAT15#,CT150,ST150198405-198804

main51095-20050iAT160,ST162198508-198804

RH

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20010iAT15#,CT150,ST150198405-198508

main52225-20030iAT15#,160,CT150,ST150,162198508-198804

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20010iAT15#,CT150,ST150198405-198508

main52230-20030iAT15#,160,CT150,ST150,162198508-198804

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20010×2iAT15#,CT150,ST150198405-198508

main52236-20030×2iAT15#,160,CT150,ST150,162198508-198804

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20010×2iAT15#,CT150,ST150198405-198508

main52240-20030×2iAT15#,160,CT150,ST150,162198508-198804

9010910060

main90109-10060

9011906073

main90119-06073

9011910332

main90119-10332

9015960175

main90159-60175

9018306002

main90183-06002

9018906006

main90189-06006

9018906048

main90189-06048

9161961225

main91619-61225

9165561020

main91655-61020

22 parts on this diagram · 2 diagrams in section
