04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090i198508-198804

04492PAD KIT, DISC BRAKE, REAR

main04492-20010i198508-198711

main04492-20040i198711-198804

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-45001i198508-198804

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i198508-198804

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i198508-198804

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-20060i198508-198712

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20130i198508-198804

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098i198508-198804

main90119-08431i198508-198804

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20130i198508-198804

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20230i198508-198804

47731BPISTON, REAR DISC BRAKE

main47731-20110i198508-198804

47736CPLATE, REAR DISC BRAKE PAD GUIDE

main47736-12030i198508-198712

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12030i198508-198712

main47743-12060i198712-198804

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-12070i198508-198804

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-12070i198508-198612

main47745-32030i198612-198804

47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32030i198612-198708

main47742-32031i198708-198804

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12090i198508-198712

main47748-12110i198712-198804

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20220i198508-198804

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010i198508-198804

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010i198508-198804

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010i198508-198804

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010i198508-198804

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379i198508-198804

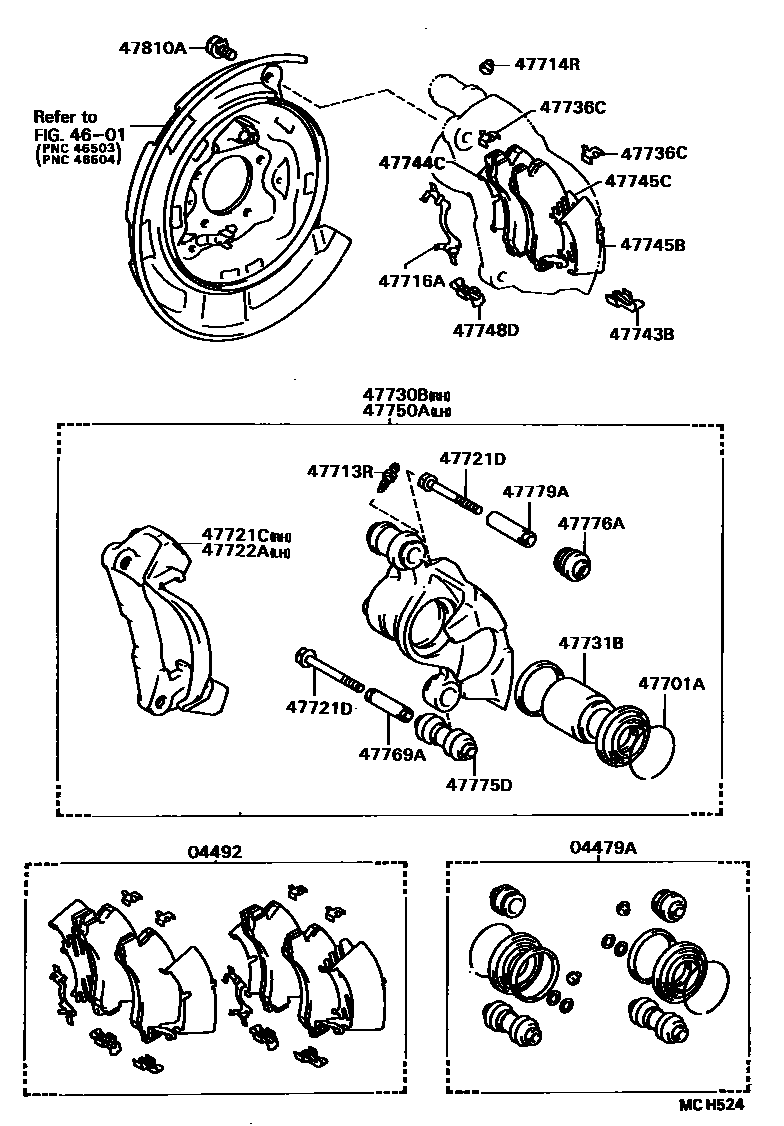

REAR DISC BRAKE CALIPER & DUST COVER
