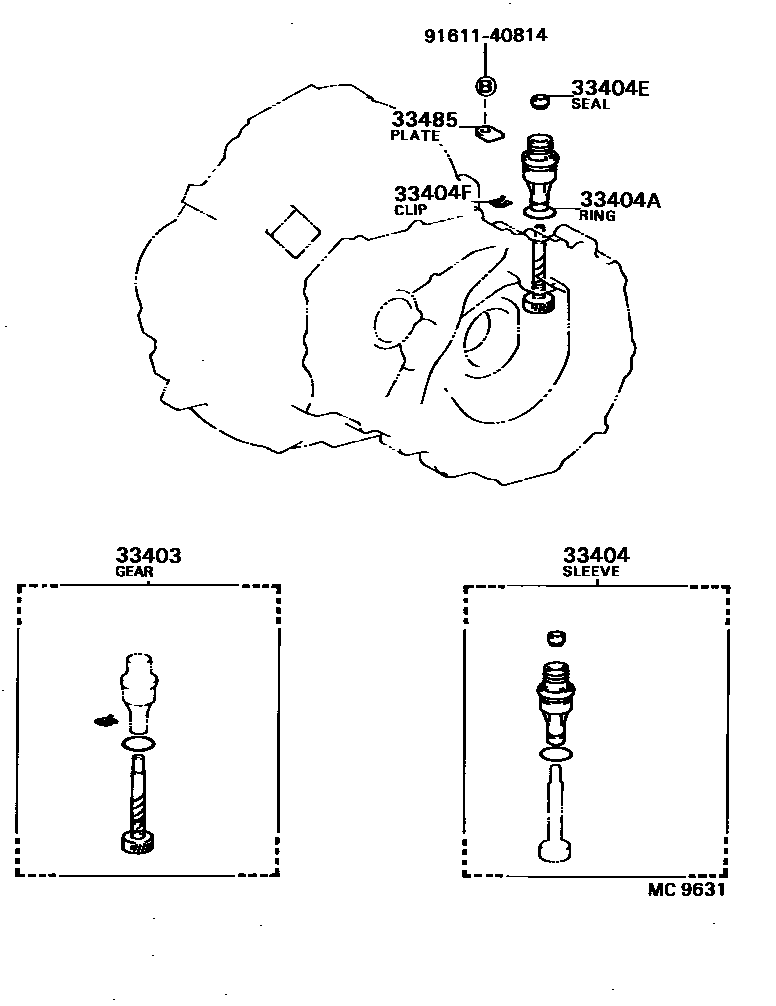

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19285iAT15#..5F..(SE,ST)198405-198804

main33403-19295iAT15#..MTM..(DX,SE,SG)198605-198804

main33403-39085iCT150,ST150..5F198405-198804

main33403-39115iCT150,ST150..5F..SE198405-198804

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-12030iAT15#,160..MTM198405-198804

main33404-16010iCT150,ST150,162..5F198405-198804

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iCT150,ST150,162..5F198405-198804

main96711-24030iAT15#,160..MTM198405-198804

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAT15#,160,CT150,ST150,162..MTM198405-198804

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAT15#,160,CT150,ST150,162..MTM198405-198804

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iCT150,ST150,162..5F198405-198804

main33485-30020iAT15#,160..MTM198405-198804

9161140814

main91611-40814

7 parts on this diagram · 2 diagrams in section
