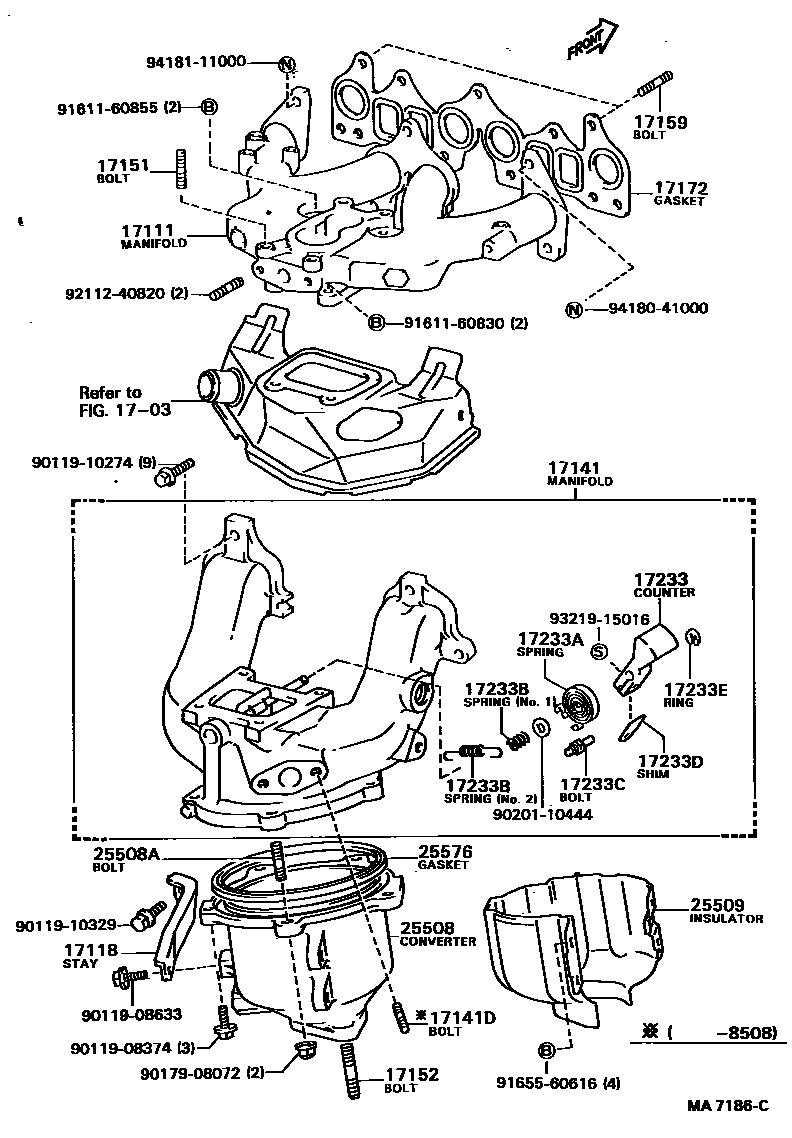

MANIFOLD
1703AIR CLEANER
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
*54
*53
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=32,S=12&12
L=44,S=12&12
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD SIDE
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD SIDE
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD,*54
INTAKE MANIFOLD
INTAKE MANIFOLD
17172GASKET, MANIFOLD TO CYLINDER HEAD
17233COUNTER WEIGHT
17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
NO.1
NO.2
17233CBOLT(FOR COUNTER WEIGHT)
17233DSHIM(FOR COUNTER WEIGHT)
17233ERING, E(FOR COUNTER WEIGHT)
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25576GASKET, MANIFOLD CONVERTER
9011908374
main90119-08374
9011908633
main90119-08633
9011910274
main90119-10274
9011910329
main90119-10329
9017908072
main90179-08072
9020110444
main90201-10444
9161160830
main91611-60830
9161160855
main91611-60855
9165560616
main91655-60616
9211240820
main92112-40820
9321915016
main93219-15016
9418041000
main94180-41000
9418111000
main94181-11000
32 parts on this diagram · 6 diagrams in section
