STANDARD TOOL

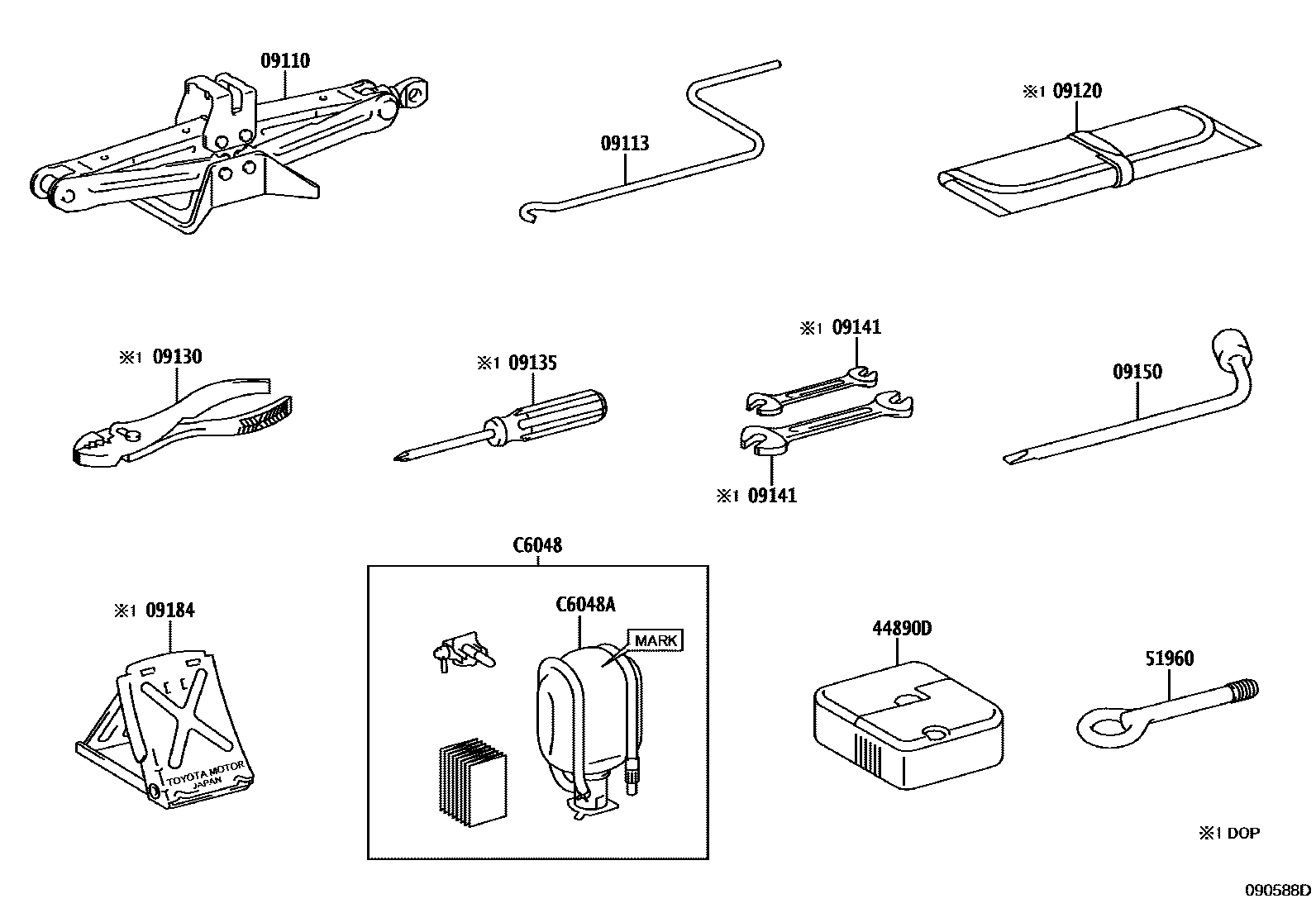

Parts diagram

09110JACK ASSY

main09111-50080i201411-202103

09113HANDLE, JACK

main09113-52030i201104-201110

main09113-52031i201111-201411

09120BAG, TOOL

main09120-16030i201411-202103

09130PLIERS

main99913-11500i201104-201411

09135DRIVER, SCREW

main99915-10700i201104-201411

09141SPANNER

main99914-10810i201104-201411

main99914-11214i201411-202103

09150WRENCH, HUB NUT BOX

main09150-35070i201104-201208

main09150-40010i201209-201411

09184STOPPER, WHEEL

main09184-00010i201104-201411

44890DCOMPRESSOR ASSY, AIR

main44890-52020i201104-201205

main44890-52021i201206-201411

51960HOOK ASSY, FRONT

main51961-47020i201104-201411

C6048REPAIR SET, TIRE

main42683-47020i201104-201207

main42683-47021supersedes 42683-52021i201208-201212

main42683-52021i201212-201411

C6048ASEALANT, REPAIR TIRE

mainC604847050i201104-201208

mainC604847051i201208-201212

mainC604852021i201212-201411

12 parts on this diagram · 1 diagram in section
