NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

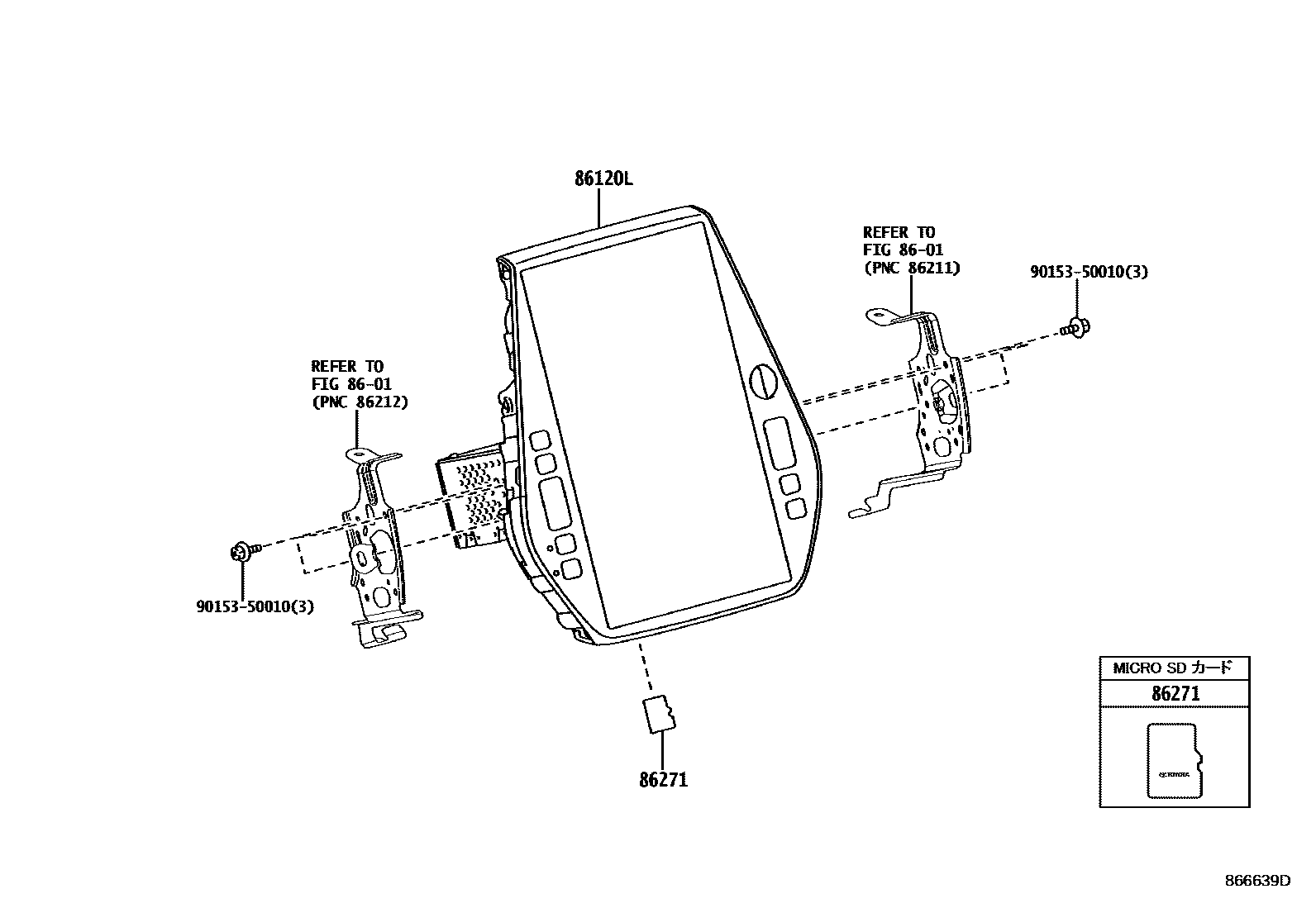

86120LRECEIVER ASSY, NAVIGATION

main86804-47400iZVW52..A,PREM; ZVW52..S..CBU201609-201708

main86804-47401iZVW52..A,PREM; ZVW52..S..CBU201709-201904

main86804-47410supersedes 86804-47401iZVW52..A,PREM201609-201708

main86804-47411supersedes 86804-47401iZVW52..A,PREM201709-201904

main86804-47470iZVW52..A,PREM; ZVW52..S..CBU201905-202106

main86804-47480iZVW52..A,PREM201905-202106

86271DISC, DISC PLAYER

main86271-47190iZVW52..A,PREM; ZVW52..S201609-201703

main86271-47191iZVW52..A,PREM; ZVW52..S..CBU201704-201709

main86271-47192iZVW52..A,PREM; ZVW52..S..CBU201709-201804

main86271-47193iZVW52..A,PREM; ZVW52..S..CBU201804-201809

main86271-47194iZVW52..A,PREM; ZVW52..S..CBU201809-201904

main86271-47195iZVW52..A,PREM; ZVW52..S..CBU201905-201908

main86271-47196iZVW52..A,PREM; ZVW52..S..CBU201909-202004

main86271-47197iZVW52..A,PREM; ZVW52..S..CBU202004-202008

main86271-47198iZVW52..A,PREM; ZVW52..S..CBU202009-202103

main86271-47199iZVW52..A,PREM; ZVW52..S..CBU202104-202106

9015350010

main90153-50010

4 parts on this diagram · 3 diagrams in section
