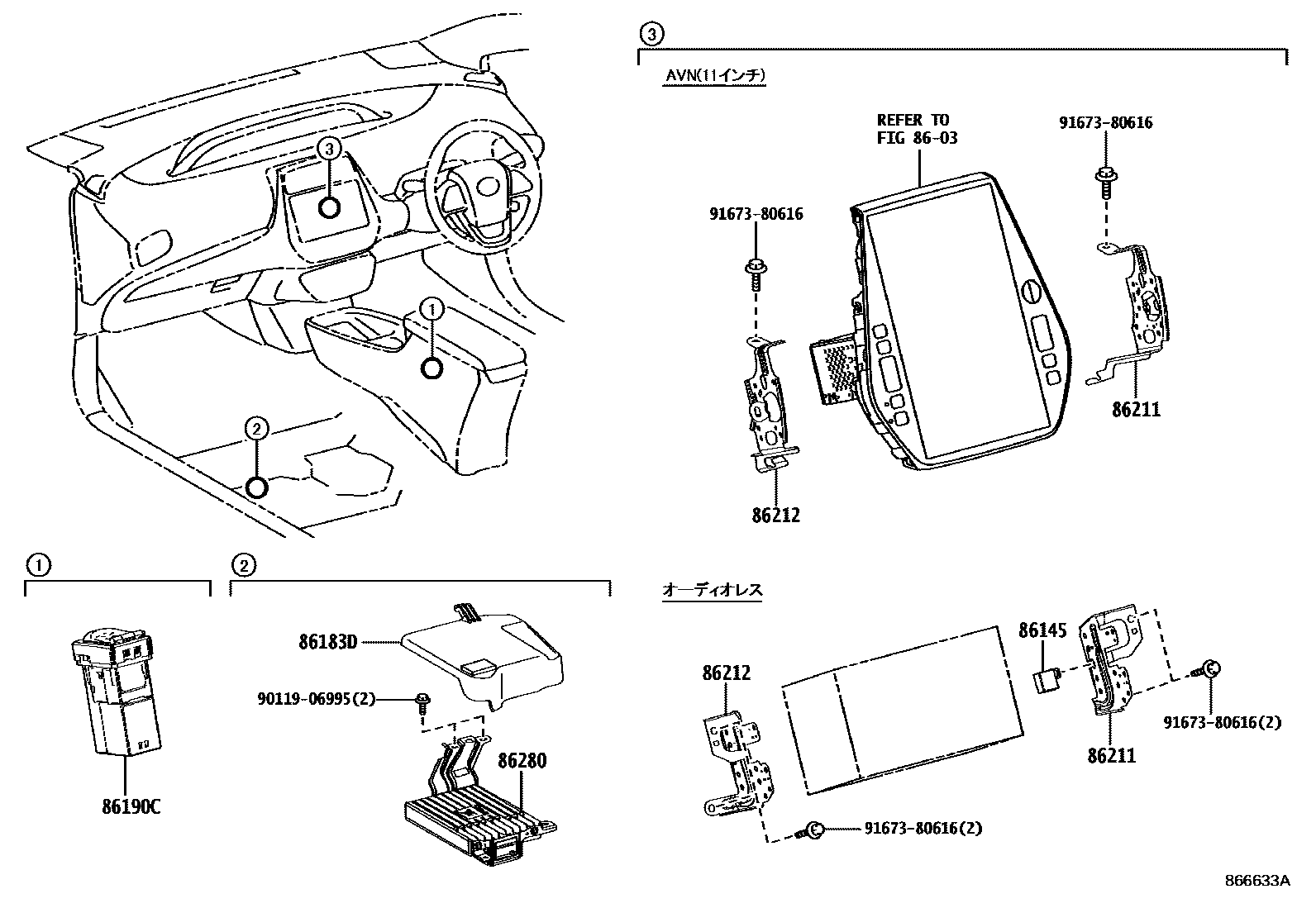

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86145CONNECTOR, ANTENNA MALE

main86145-52010iZVW52..CBU201905-202106

86183DCOVER, AUDIO AMPLIFIER

main86183-12020iZVW52..PREM202106

main86183-47120iZVW52..A,PREM201609-201904

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-42031iZVW52..CBU202106

main86190-42040iZVW52..A,PREM; ZVW52..S..CBU201609-201904

main86190-12040iZVW52..A,PREM; ZVW52..S..CBU201905-202106

86211BRACKET, RADIO, NO.1

main86211-47140supersedes 86211-47130iZVW52..CBU201905-202106

main86211-47150supersedes 86211-47140iZVW52..A,PREM; ZVW52..S..CBU201609-201904

86212BRACKET, RADIO, NO.2

main86212-47140supersedes 86212-47130iZVW52..CBU201905-202106

main86212-47150supersedes 86212-47140iZVW52..A,PREM; ZVW52..S..CBU201609-201904

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-47050iZVW52..A,PREM201609-201710

main86280-47051iZVW52..A,PREM201711-201904

main86280-47060iZVW52..A,PREM201905-202106

main86280-47100iZVW52..PREM202106

9011906995

main90119-06995

9167380616

main91673-80616

9 parts on this diagram · 3 diagrams in section
