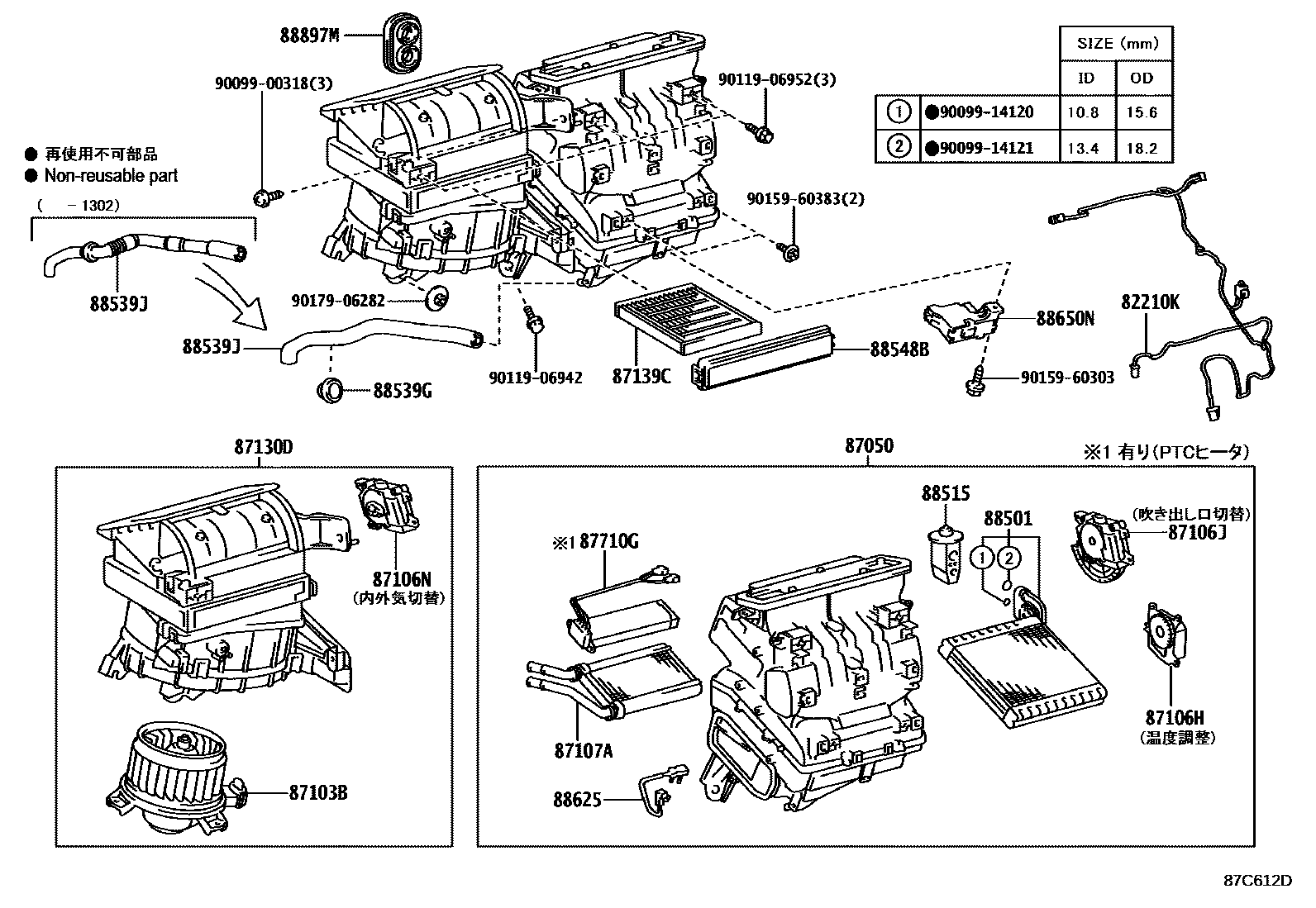

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12020iZVW35201201-201604

87050RADIATOR ASSY, AIR CONDITIONER

main87050-47130supersedes 87050-47120iZVW35201201

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-47031iZVW35201201

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170iZVW35201201-201411

main87106-47170iZVW35201411

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-42100iZVW35201201

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-42120iZVW35201201

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iZVW35201201

87130DBLOWER ASSY

main87130-47110supersedes 87130-47180iZVW35201201

87139CFILTER, CLEAN AIR

main87139-30040iZVW35201201-201308

main87139-50060iZVW35201201-201204

main87139-50100iZVW35201205

main87139-76010iZVW35201309

87710GQUICK HEATER ASSY

main87710-12010iZVW35201201

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47051iZVW35201201

88515VALVE, COOLER EXPANSION

main88515-47040iZVW35201201

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iZVW35201302

88539JHOSE, DRAIN COOLER

main88539-12190iZVW35201201-201302

main88539-12210iZVW35201302

88548BCASE, AIR FILTER

main88548-42010iZVW35201201

88625THERMISTOR, COOLER, NO.1

main88625-71010iZVW35201201

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-47230supersedes 88650-47221iZVW35201201-201202

main88650-47231supersedes 88650-47221iZVW35201202-201205

main88650-47232supersedes 88650-47222iZVW35201206-201211

main88650-47400supersedes 88650-47390iZVW35201211-201310

main88650-47480supersedes 88650-47470iZVW35201310

88897MGROMMET (FOR HEATER PIPE)

main87128-42010iZVW35201201

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

26 parts on this diagram · 1 diagram in section
