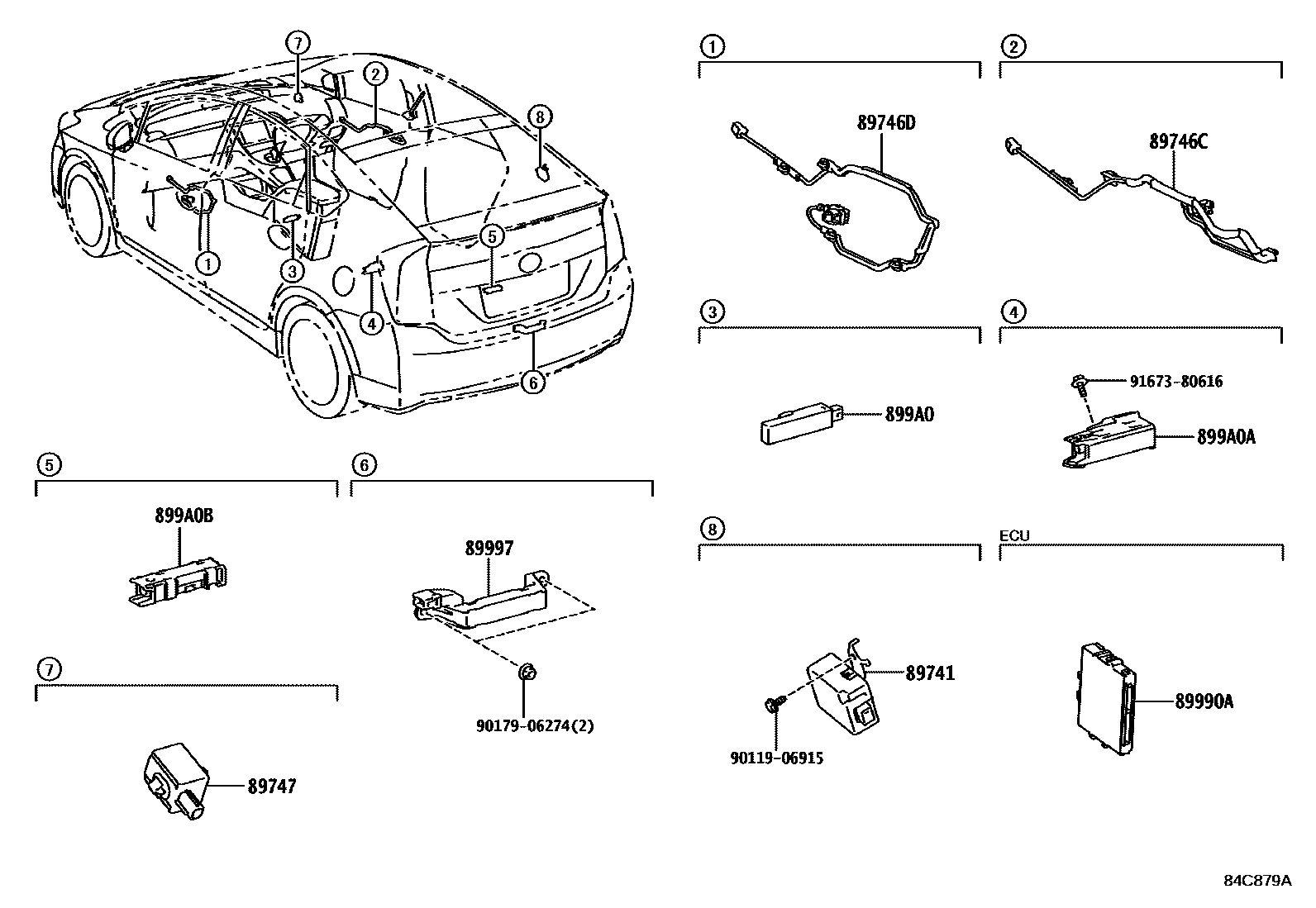

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-47020iZVW35201201

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-47040iZVW35201201

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-47050iZVW35..G201201

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW35201201

89990ACOMPUTER ASSY, SMART KEY

main89990-47160iZVW35..L,S201201-201210

main89990-47161iZVW35..L,S201211-201604

main89990-47170iZVW35..G201201-201210

main89990-47171iZVW35..G201211-201604

main89990-47180iZVW35..L201201-201506

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZVW35..G201201

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZVW35201201

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47020iZVW35201201

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-52070iZVW35201201

9011906915

main90119-06915

9017906274

main90179-06274

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section
