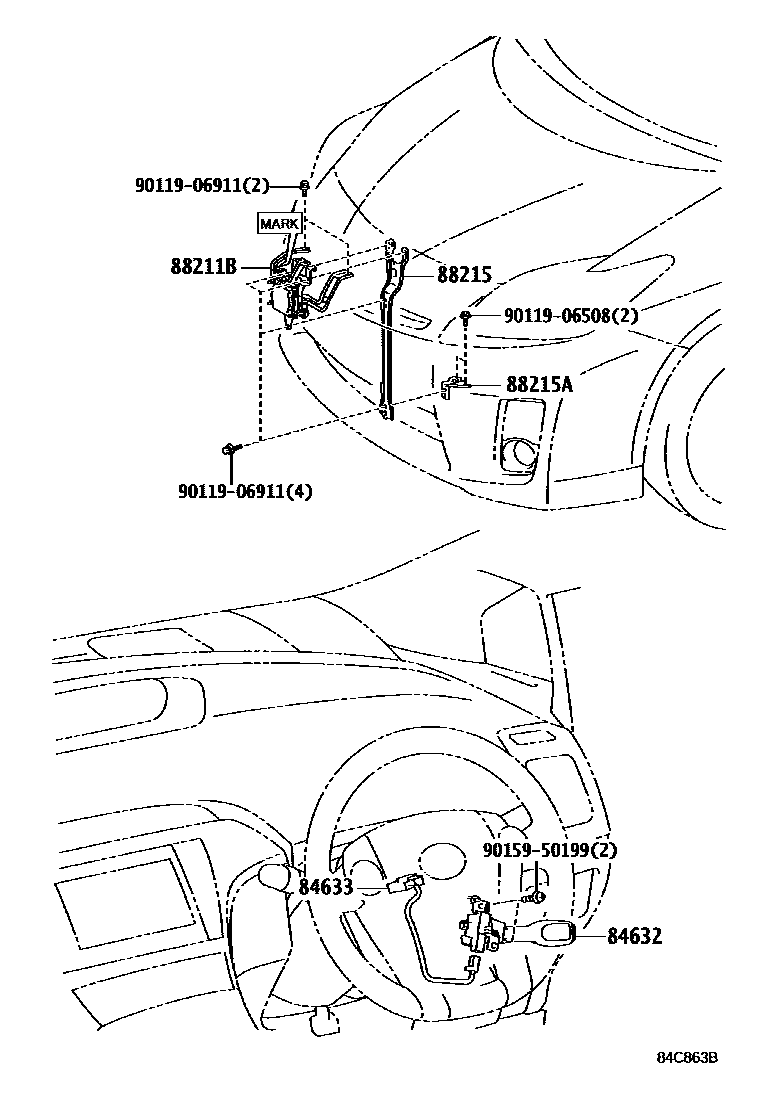

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-58011supersedes 84632-34011iZVW35..G201201

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010supersedes 84633-48020iZVW35..G201201

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-47030iZVW35..G201201-201210

main88210-47031iZVW35..G201210-201604

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88215-47010iZVW35..G201201

88215ABRACKET, MILLIMETER WAVE RADAR SENSOR, NO.2

main88215-47020iZVW35..G201201

9011906508

main90119-06508

9011906911

main90119-06911

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
