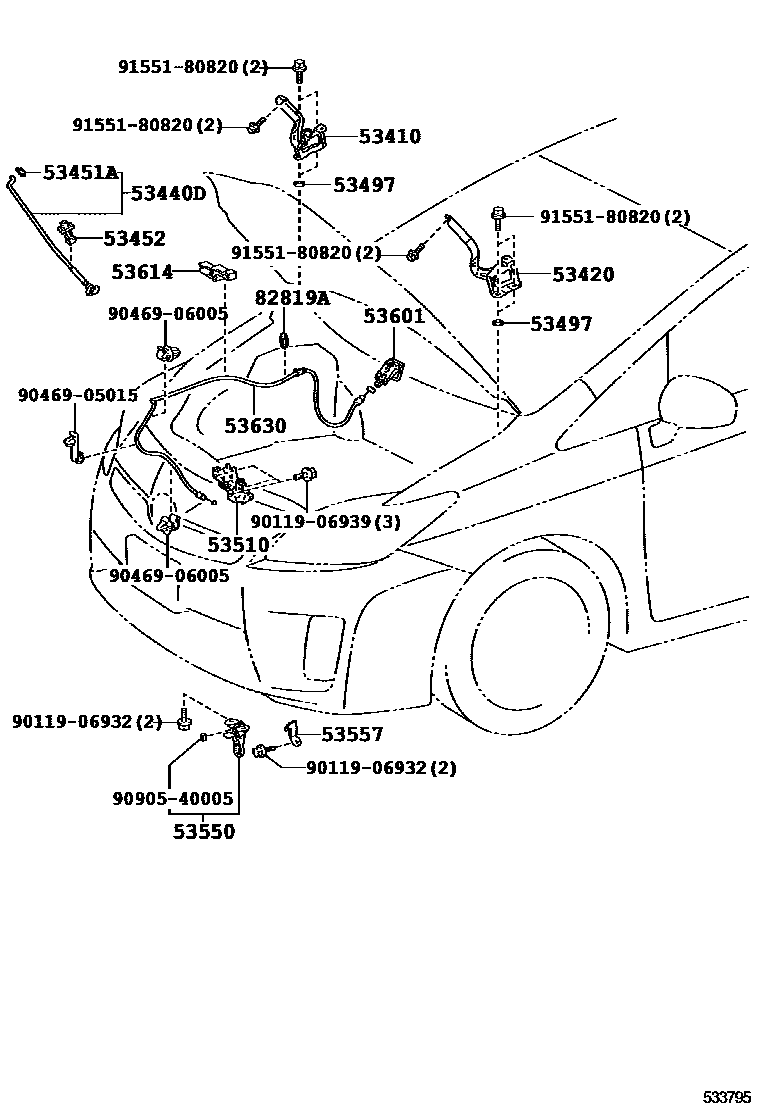

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-47070iZVW35201201

53420HINGE ASSY, HOOD, LH

main53420-47070iZVW35201201

53440DSUPPORT ASSY, HOOD

main53440-47031iZVW35201201

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iZVW35201201

53452HOLDER, HOOD STAY

main53452-47010iZVW35201201

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iZVW35201201

main53497-42010×4iZVW35201201

53510LOCK ASSY, HOOD

main53510-47101iZVW35201201-201206

main53510-47102iZVW35201207

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-47011iZVW35201201

53557CATCH, HOOD AUXILIARY HOOK

main53557-47010iZVW35201201

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iZVW35201201-201604

BLACK,TRIM2#

main53601-52010-G1iZVW35201201-201604

AQUA,TRIM6#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030iZVW35201201

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47050iZVW35201201

82819AGROMMET, WIRE

main82817-1A810×2iZVW35201201

9011906932

main90119-06932

9011906939

main90119-06939

9046905015

main90469-05015

9046906005

main90469-06005

9090540005

main90905-40005

9155180820

main91551-80820

19 parts on this diagram · 1 diagram in section
