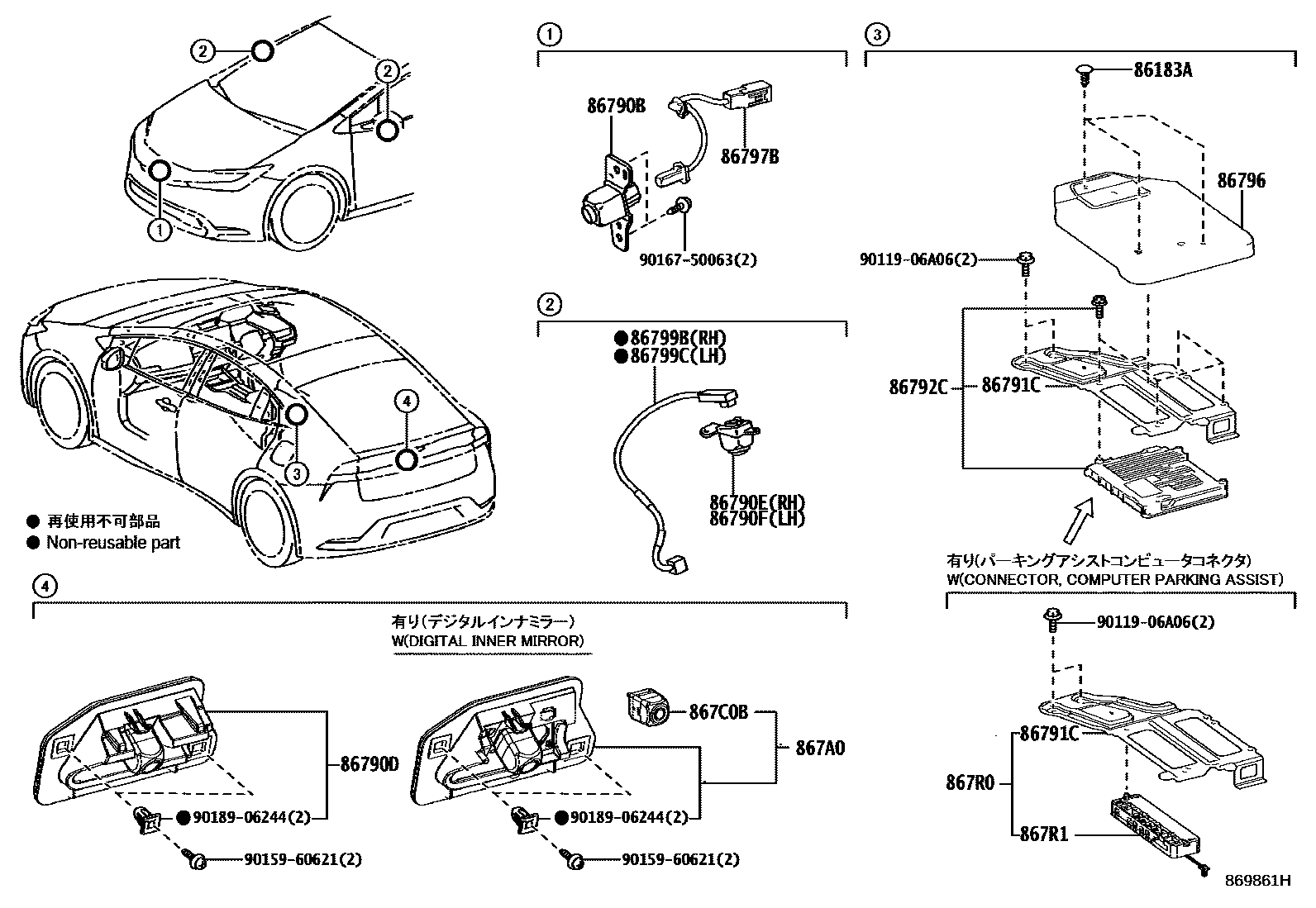

CAMERA & REAR MONITOR DISPLAY

86183ACLIP(FOR AUDIO RACK COVER)

main90467-05161-C0×3iMXWH6#..G; MXWH6#..Z; ZVW6#..U202212

86790BCAMERA ASSY, TELEVISION, FR

main86790-47120iMXWH6#..G; MXWH6#..Z; ZVW6#..U202212

86790DCAMERA ASSY, TELEVISION, RR

main00000-00000supersedes 867B0-47060iMXWH6#..G; MXWH6#..Z202212-202507

main86790-47150iMXWH6#,ZVW6#..X; MXWH6#..G202212-202301

main86790-47180supersedes 867B0-47050iMXWH6#..G; ZVW6#..U202212

main867B0-47060iMXWH6#,ZVW6#..X; MXWH6#..G; ZVW6#..U202212

main867B0-47080supersedes 867B0-47060iMXWH6#..G202212-202507

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-47130iMXWH6#,ZVW6#..G,U; MXWH6#..Z; ZVW6#..U202212

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-47140iMXWH6#,ZVW6#..G,U; MXWH6#..Z; ZVW6#..U202212

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-47010iMXWH6#..G; MXWH6#..Z202212

86792CCOMPUTER, PARKING ASSIST

main86792-47450iMXWH6#..Z; ZVW6#..U202212-202507

main86792-47480iMXWH6#..G; ZVW6#..U202212-202507

86796COVER, COMPUTER PARKING ASSIST

main86796-47020iMXWH6#..G; MXWH6#..Z; ZVW6#..U202212

86797BWIRE, PARKING ASSIST

main86797-47370iMXWH6#..G; MXWH6#..Z; ZVW6#..U202212

86799BWIRE, TELEVISION CAMERA, RH

main86799-47010iMXWH6#,ZVW6#..G,U; MXWH6#..Z; ZVW6#..U202212

86799CWIRE, TELEVISION CAMERA, LH

main86799-47010iMXWH6#,ZVW6#..G,U; MXWH6#..Z; ZVW6#..U202212

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-47020iMXWH6#..G; MXWH6#..Z202212-202507

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-30040iMXWH6#..G; MXWH6#..Z202212-202507

867R0CONNECTOR ASSY, COMPUTER PARKING ASSIST

main867R0-47010iZVW6#..U202302

867R1CONNECTOR, COMPUTER PARKING ASSIST

main867R1-47010iZVW6#..U202302

9011906A06

main90119-06A06

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

19 parts on this diagram · 1 diagram in section
