CONTROL COMPUTER(BEV OR FCEV)

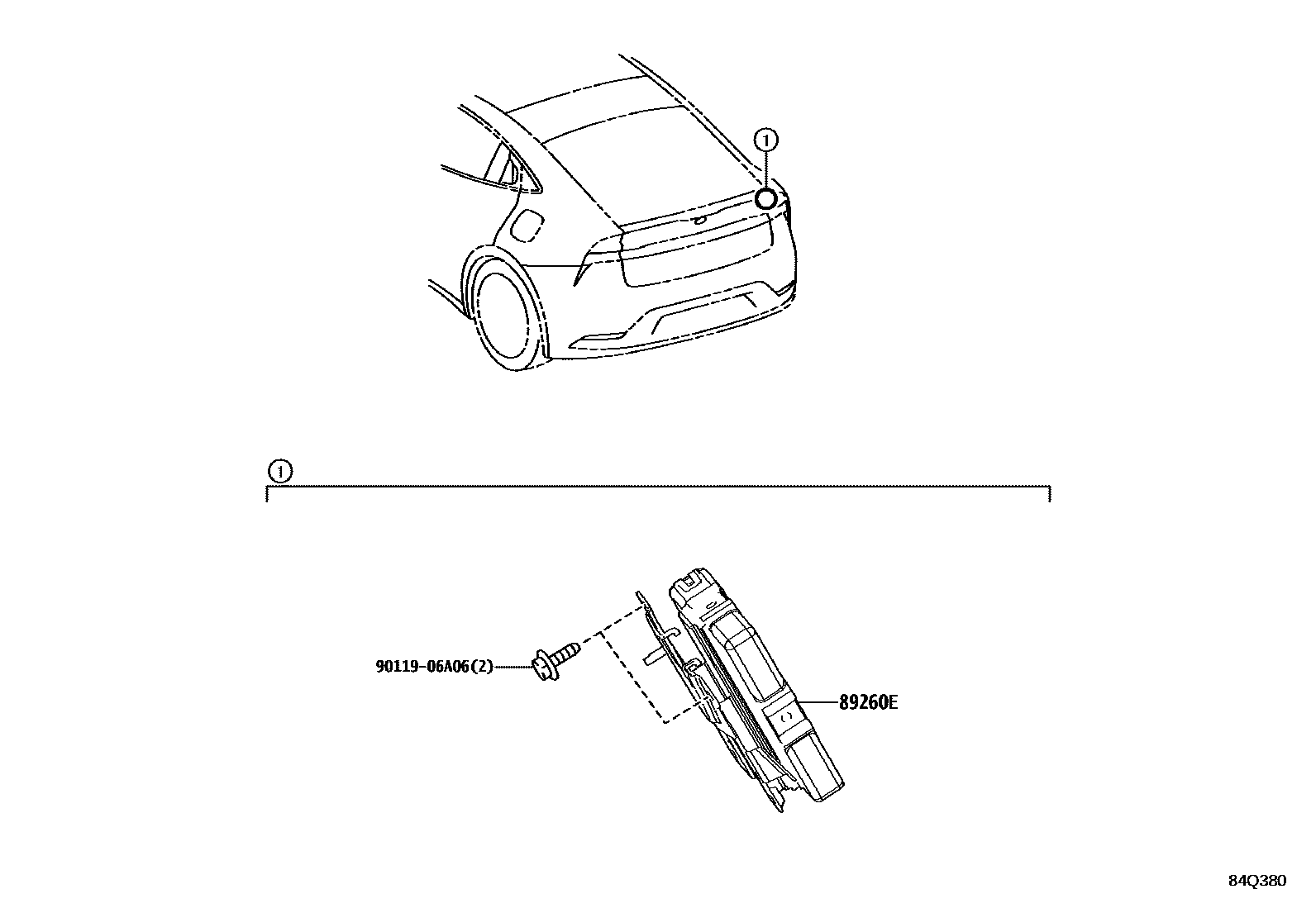

Parts diagram

89260ECOMPUTER ASSY, PLUGIN CHARGE CONTROL

main89260-47150supersedes 89260-47140i202303-202309

main89260-47152supersedes 89260-47142i202309-202312

main89260-47153supersedes 89260-47143i202401

9011906A06

main90119-06A06

2 parts on this diagram · 1 diagram in section
