DC/DC CONVERTER & CHARGER(BEV OR FCEV)

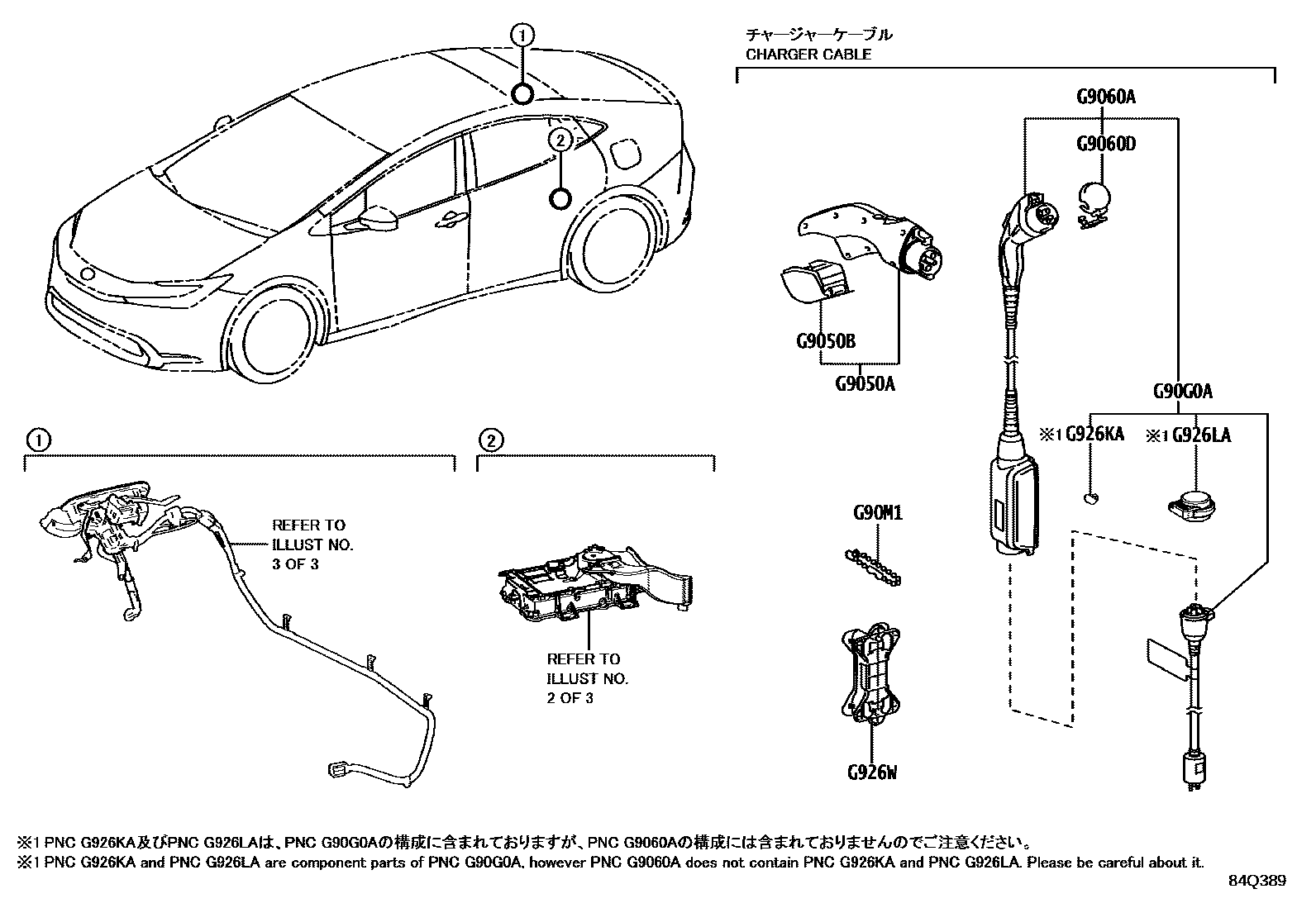

Parts diagram

G9050ACONNECTOR, VEHICLE POWER

mainG905047012i202303

G9050BCOVER, CONNECTOR

main82821-47280i202303

G9060ACABLE ASSY, ELECTRIC VEHICLE CHARGER

mainG906076020supersedes G906076010i202303

G9060DCOVER, EV CHARGER CABLE

main82821-47650i202303

G90G0APLUG ASSY, CABLE EV CHARGER

mainG90G047070supersedes G90G047080i202303

G90M1KEY SET, PLUG CABLE EV CHARGER

mainG90M147010i202303

G926KAKEY, PLUG CABLE EV CHARGER

mainG926K47020i202303

G926LACOVER, PLUG CABLE EV CHARGER

mainG926L47020i202303

G926WHOLDER, CABLE EV CHARGER

mainG926W47010i202303

9 parts on this diagram · 3 diagrams in section
