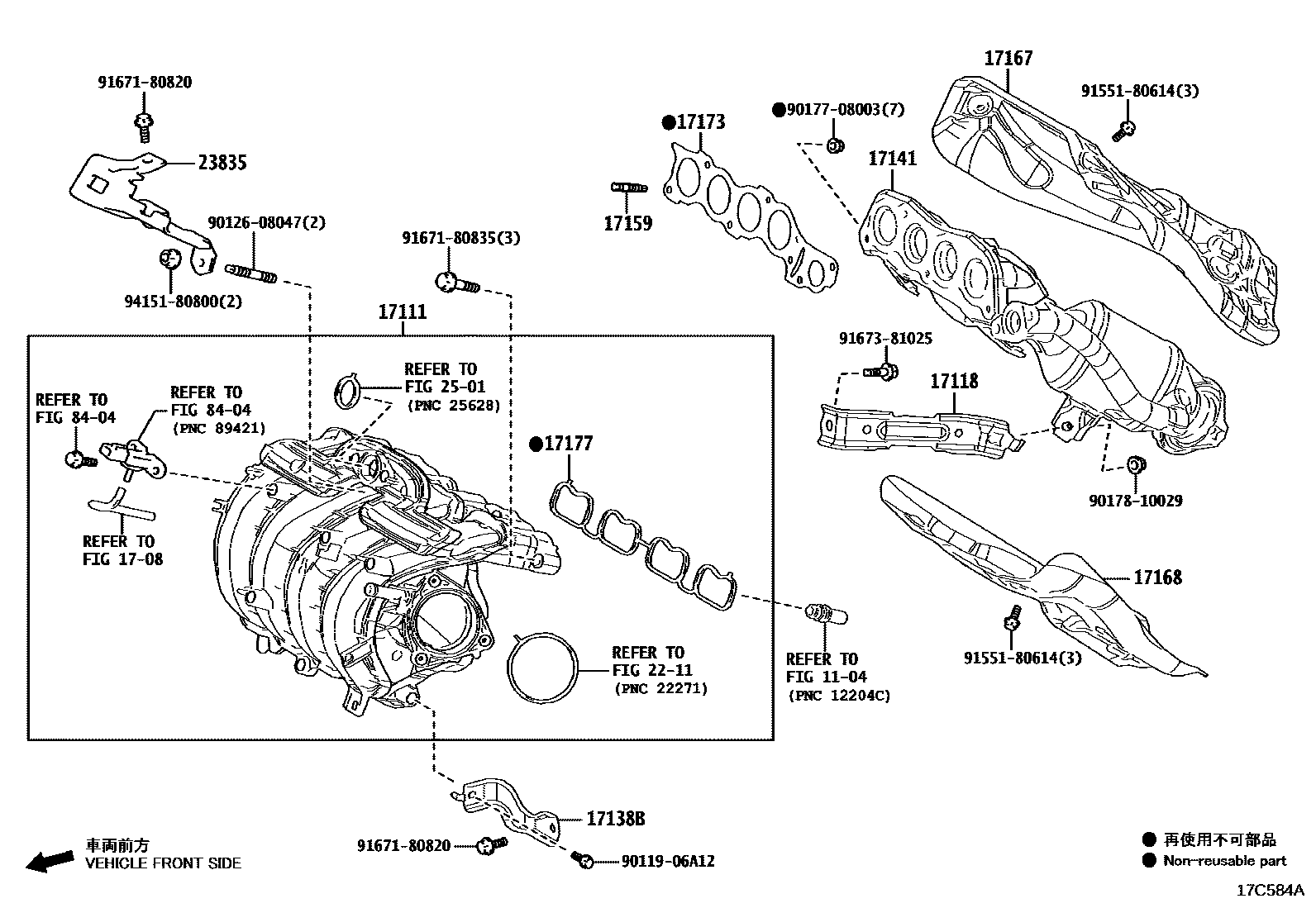

MANIFOLD

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-24020iM20AFXS..MXWH6#202212

main17120-37110i2ZRFXE..ZVW6#202212

17118STAY, MANIFOLD

main17118-24010iM20AFXS..MXWH6#202212

main17118-37100i2ZRFXE..ZVW6#202212

17138BSTAY, INTAKE MANIFOLD

main17138-24020iM20AFXS..MXWH6#202212

17141MANIFOLD, EXHAUST

main17141-24300iM20AFXS..MXWH6#202212

main17141-37280i2ZRFXE..ZVW6#202212-202507

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2ZRFXE..ZVW6#202212

main90126-08052×7i2ZRFXE..ZVW6#; M20AFXS..MXWH6#202212

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24030iM20AFXS..MXWH6#202212

main17167-37120i2ZRFXE..ZVW6#202212

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24030iM20AFXS..MXWH6#202212

main17168-37150i2ZRFXE..ZVW6#202212

main17168-F2050iM20AFXS..MXWH6#202212

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010iM20AFXS..MXWH6#202212

main17173-37010i2ZRFXE..ZVW6#202212

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020iM20AFXS..MXWH6#202212

main17177-37030i2ZRFXE..ZVW6#202212

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23835GUARD, FUEL DELIVERY, NO.2

main23835-24010iM20AFXS..MXWH6#202212

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906A12

main90119-06A12

9012608047

main90126-08047

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

24 parts on this diagram · 2 diagrams in section
