REAR MOULDING
6104ROOF PANEL & BACK WINDOW GLASS
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

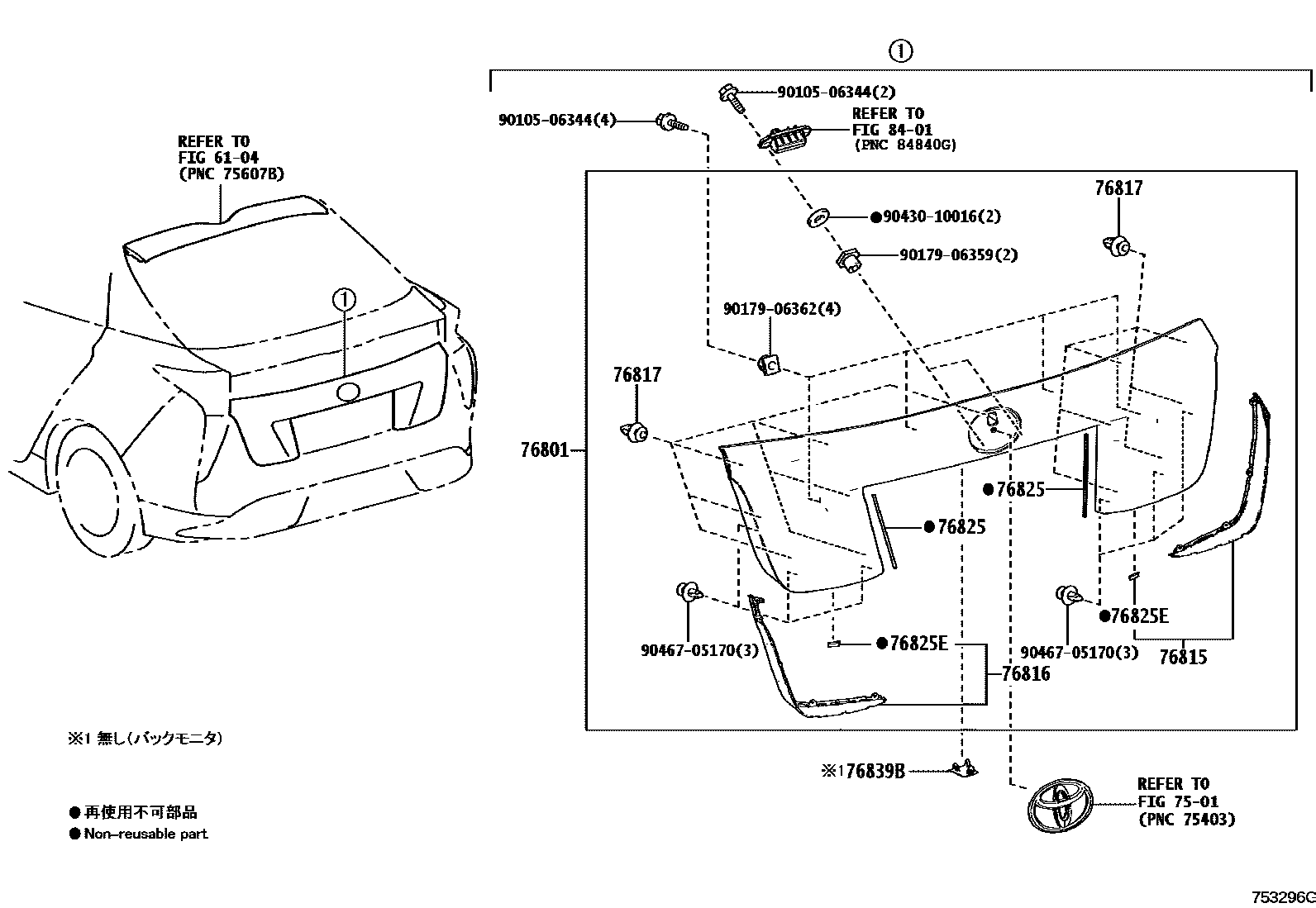

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-47110-A1iZVW5#..(A,E,S)..CBU; ZVW5#..(PREM,S)..CBU; ZVW51,55..A..CBU; ZVW51,55..PREM201511-201812
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2XC
SILVER ME.,1F7
GRAY ME.,1G3; GRAY ME.,1G3 ,2XD
ATTITUDE BLACK MC.,218
PRECIOUS BLACK,219
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
THERMO-TECT LIME GREEN,6W7
BLUE ME.,8X7
76815MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH
76816MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
8401SWITCH & RELAY & COMPUTER
9010506344
main90105-06344
9017906359
main90179-06359
9017906362
main90179-06362
9043010016
main90430-10016
9046705170
main90467-05170
15 parts on this diagram · 2 diagrams in section
