81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010i200904-201112

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010i201112

81230LAMP ASSY, COURTESY

main81230-30200×2i201306

main81230-47010×2i200904-201112

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2i200904-201112

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B0i201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,2#,6#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200904-201112

81250LAMP ASSY, ROOM, NO.2

main81250-48010i200904-201112

main81330-58010i201505

81250BBULB, ROOM LAMP, NO.2

main99132-12050i201505

main99132-13050i201112-201505

81260LAMP ASSY, GLOVE BOX

main81080-48010i200904-201112

81260ALAMP ASSY, MAP

main81260-47090-B0i201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,2#,6#

main81260-47060-B0supersedes 81260-47090-B0i201112-201511

main81260-47070-B0supersedes 81260-47090-B0i201112-201511

main81260-47080-B0supersedes 81260-47090-B0i201112-201511

81260CBULB(FOR MAP LAMP)

main99132-12050×2i201112

81265CLENS, MAP LAMP, NO.1

main81265-47070i200904-201112

main81265-47060i201112

81266DLENS, MAP LAMP, NO.2

main81266-47070i200904-201112

main81266-47060i200904-201112

81340LAMP ASSY, VANITY

main81340-30100-B0×2i200904-201112

LT.GRAY,TRIM1#,6#

main81340-30110×2i201112

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i201112-201511

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9046709240

main90467-09240

9046710161

main90467-10161

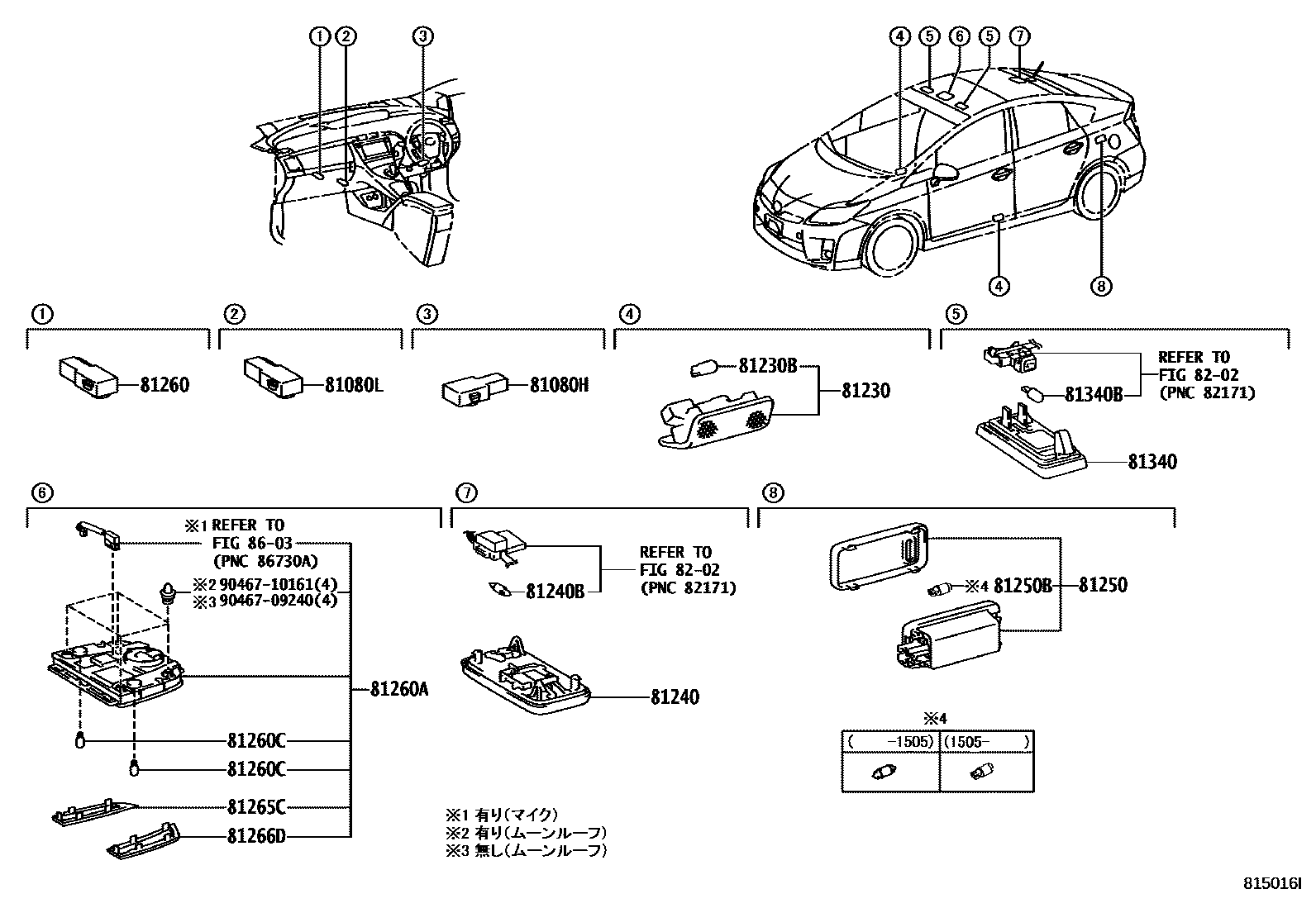

INTERIOR LAMP
