Toyota 652150 — REAR COMBINATION LAMP

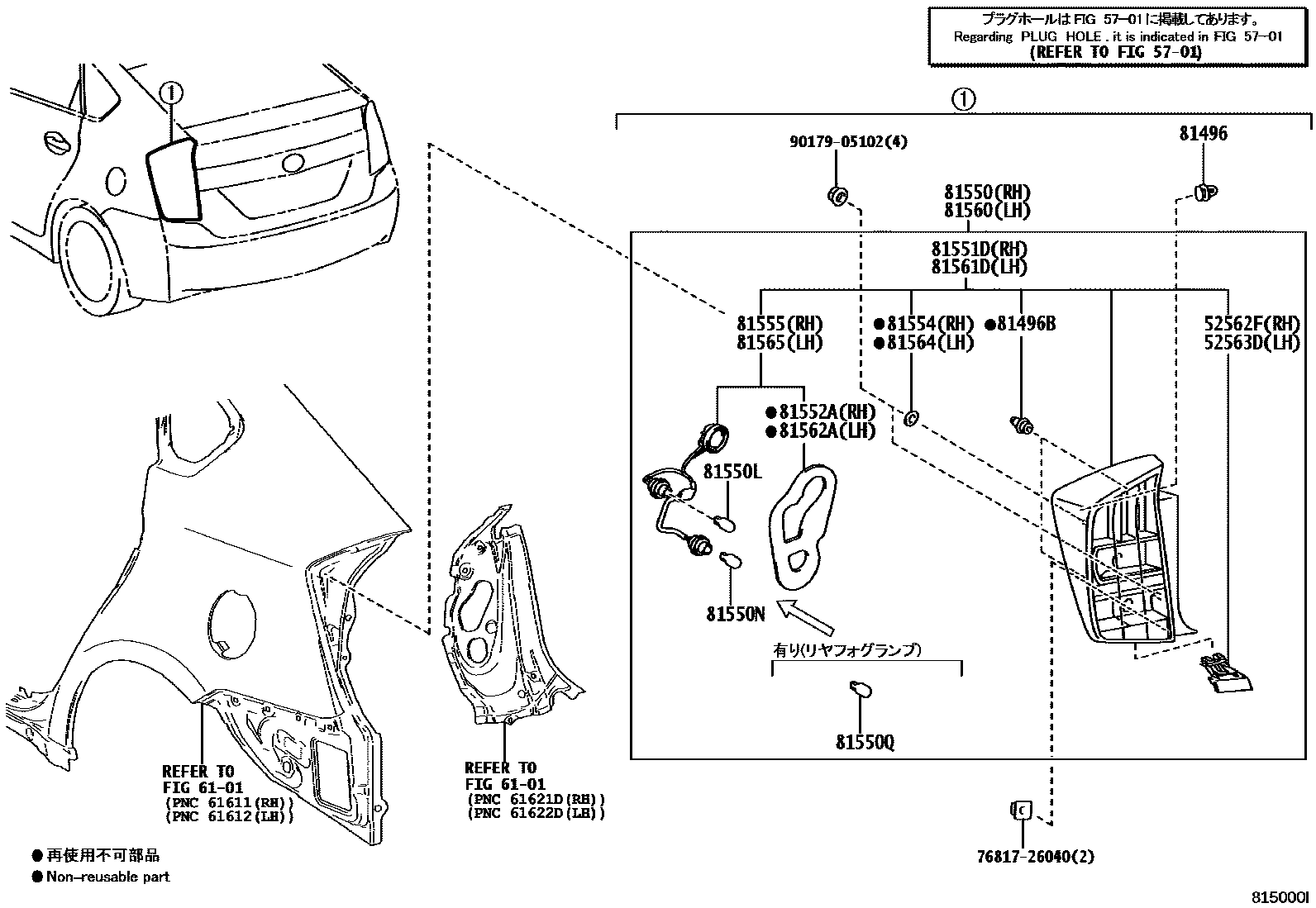

Parts diagram
52562FRETAINER, REAR BUMPER, UPPER SIDE
52563DRETAINER, REAR BUMPER, UPPER LH
5701HOLE PLUG
→ Go to FIG 57-01
6101SIDE MEMBER
→ Go to FIG 61-01
81496GUIDE, REAR COMBINATION LAMP
81496-28010
81496-60010
90467-09234
81496BGUIDE, REAR LAMP
81550LAMP ASSY, REAR COMBINATION, RH
90981-15011
90981-13043
81550-47120
81550-47121
81550-47122
81550-47130
81550-47131
81550-47132
81550-47170
81550-47180
81550-47230
81550-47240
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550QBULB, REAR FOG LAMP, NO.1
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81554-47110
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-47110
81555-47130
81555-47170
81555-47180
81560LAMP ASSY, REAR COMBINATION, LH
81560-47120
81560-47121
81560-47122
81560-47170
81560-47240
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81554-47110
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-47110
81555-47170
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
76817-26040
9017905102
90179-05102

21 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota 652150

This section contains 21 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 652150. Key components include: RETAINER, REAR BUMPER, UPPER SIDE, RETAINER, REAR BUMPER, UPPER LH, HOLE PLUG, SIDE MEMBER, GUIDE, REAR COMBINATION LAMP.
