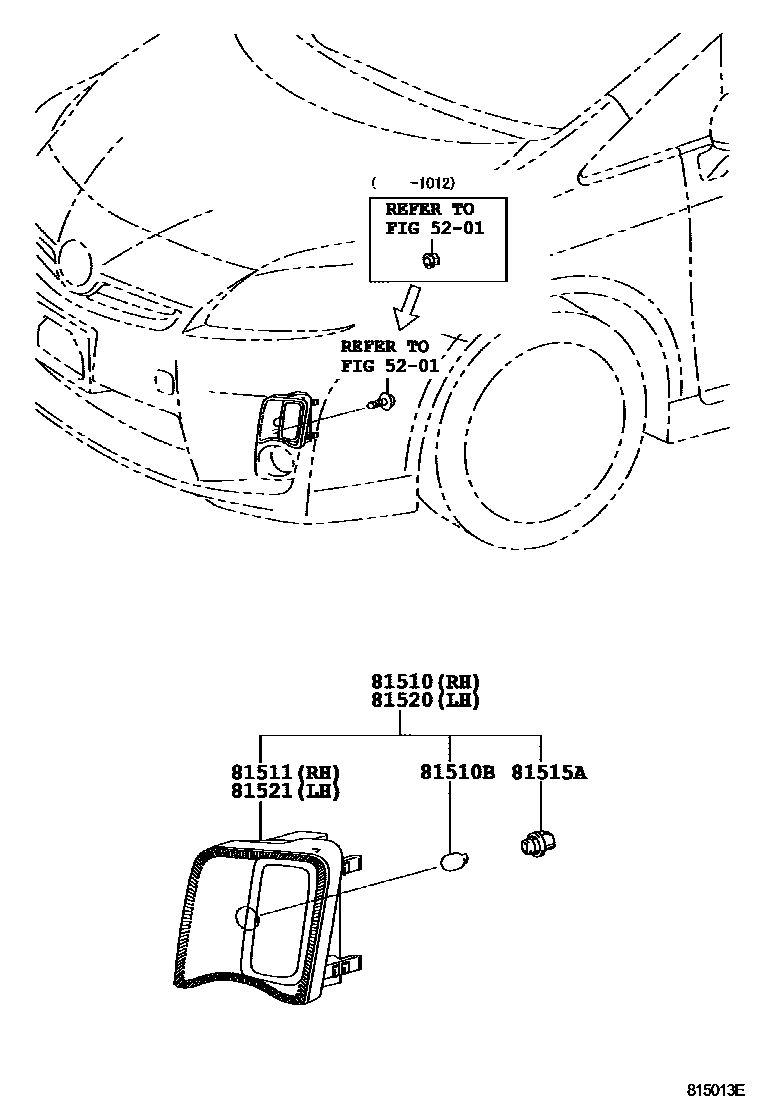

FRONT TURN SIGNAL LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-47010iZVW30..CBU200904-200906

main81510-47011iZVW30..CBU200907-201012

main81510-47012iZVW30..CBU201012-201112

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZVW30..CBU200904-201112

main90981-13043×2iZVW30..S..CBU201112

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-47010iZVW30..CBU200904-200907

main81511-47011iZVW30..CBU200907-201012

main81511-47012iZVW30..CBU201012-201112

main81511-47040iZVW30..CBU201112

main81511-47080iZVW30..S..CBU201112

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-47080×2iZVW30..S..CBU201112

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-60028×2iZVW30..CBU200904-201112

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-47010iZVW30..CBU200904-200906

main81520-47011iZVW30..CBU200907-201012

main81520-47012iZVW30..CBU201012-201112

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-47010iZVW30..CBU200904-200907

main81521-47011iZVW30..CBU200907-201012

main81521-47012iZVW30..CBU201012-201112

main81521-47040iZVW30..CBU201112

main81521-47080iZVW30..S..CBU201112

8 parts on this diagram · 2 diagrams in section
