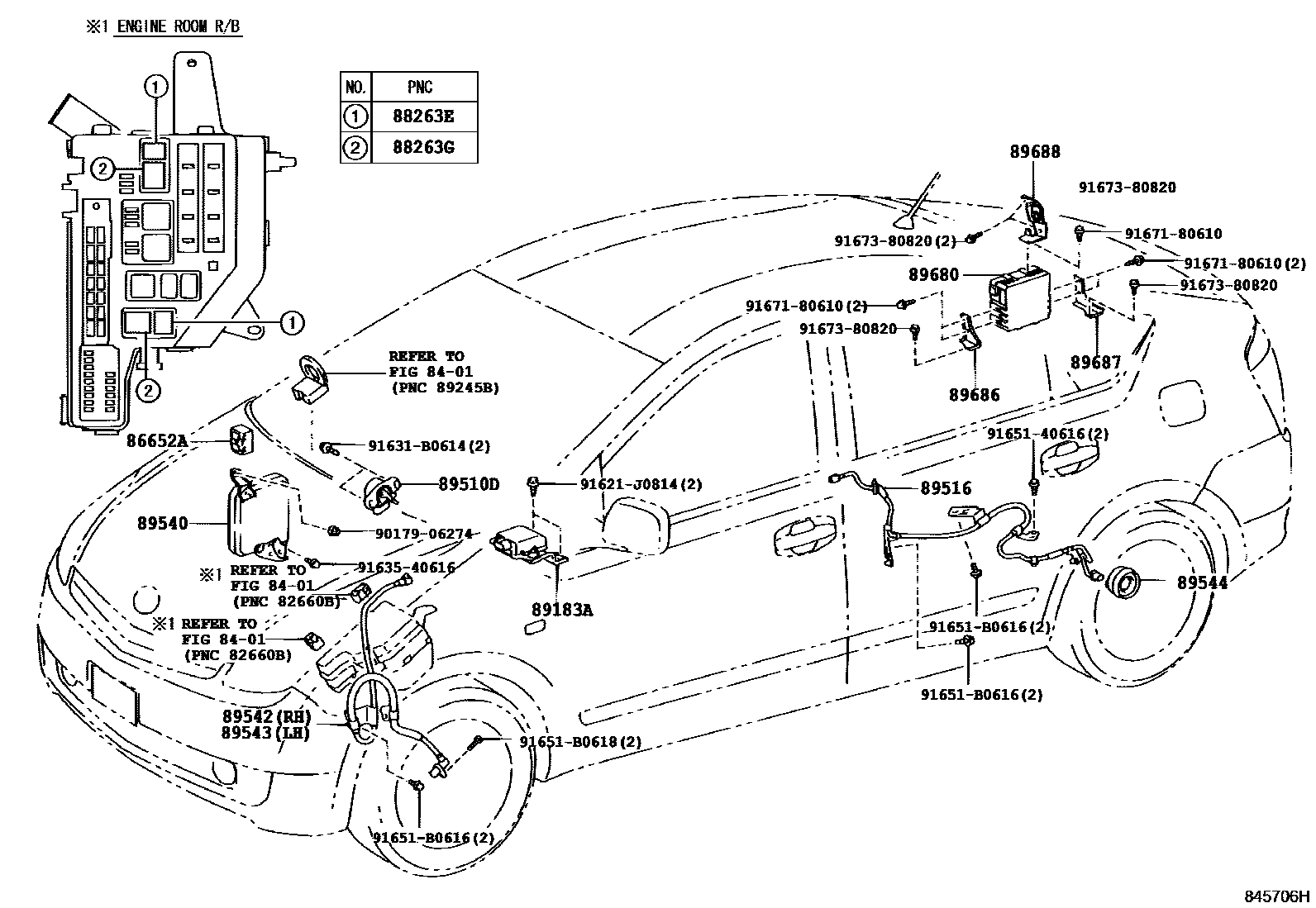

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-20010iNHW20200511

88263ERELAY, SKID CONTROL NO.2

main88263-32070×2iNHW20200308-200511

88263GRELAY, SKID CONTROL

main88263-21010×2iNHW20200308-200511

89183ASENSOR, YAWRATE

main89180-47010iNHW20..G200308-200511

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47020iNHW20200511-201112

89516WIRE, SKID CONTROL SENSOR

main89516-47050iNHW20200511

main89516-47060iNHW20200308-200511

89540COMPUTER ASSY, SKID CONTROL

main89540-47050iNHW20200308-200408

main89540-47070iNHW20200408-200511

main89540-47090iNHW20200511-200806

main89540-47120iNHW20200807-201112

89542SENSOR, SPEED, FRONT RH

main89542-47020iNHW20200511-201112

89543SENSOR, SPEED, FRONT LH

main89543-47020iNHW20200308-200511

89544SENSOR, SKID CONTROL

main89544-20010×2iNHW20200308-200511

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iNHW20200607

main89680-47010iNHW20200308-200501

main89680-47020iNHW20200502-200511

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-47010iNHW20200308-200511

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-47010iNHW20200308-200511

89688BRACKET, BRAKE CONTROL POWER SUPPLY, NO.3

main89688-47010iNHW20200308-200511

9017906274

main90179-06274

91621J0814

main91621-J0814

91631B0614

main91631-B0614

9163540616

main91635-40616

9165140616

main91651-40616

91651B0616

main91651-B0616

91651B0618

main91651-B0618

9167180610

main91671-80610

9167380820

main91673-80820

24 parts on this diagram · 1 diagram in section
