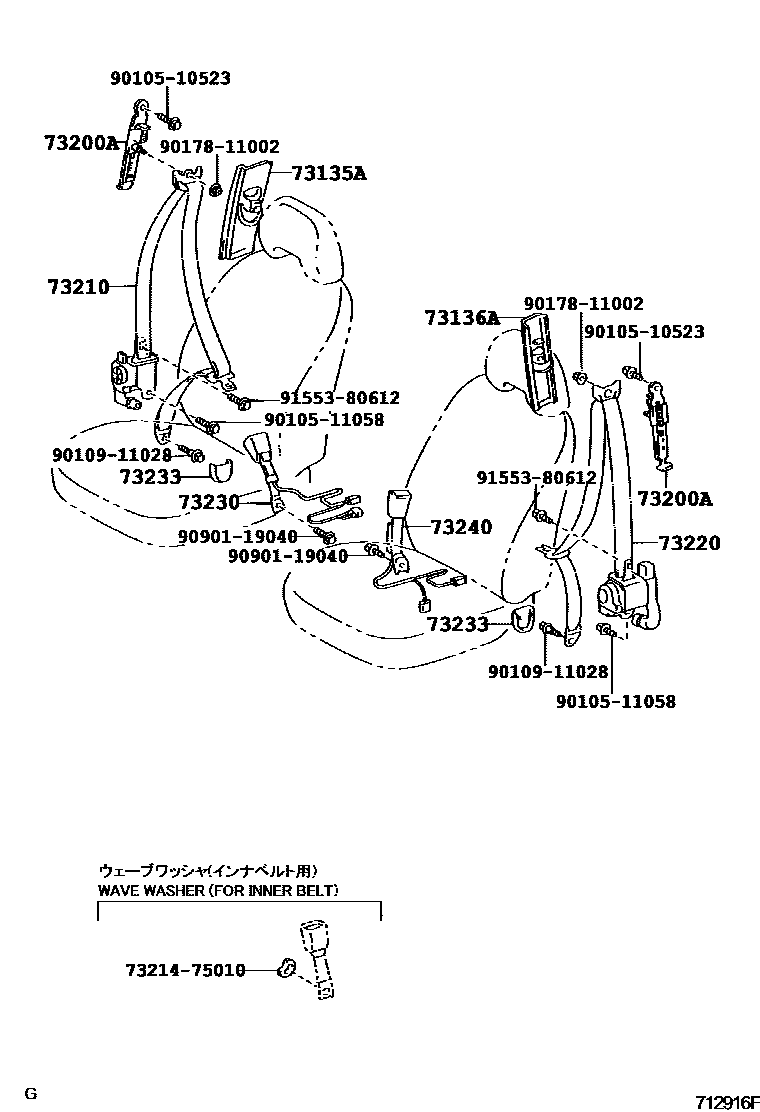

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� 0002 1��

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-33010-A0iNHW20200308-200511

IVORY,TRIM0#

main73023-33010-B2iNHW20200511-201112

GRAY,TRIM1#

main73023-33010-E1iNHW20; NHW20..S200511-200903

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73024-33010-A0iNHW20200308-200511

IVORY,TRIM0#

main73024-33010-B2iNHW20200511-201112

GRAY,TRIM1#

main73024-33010-E1iNHW20; NHW20..S200511-200903

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-51020×2iNHW20200511

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47050-A0iNHW20200308-200408

IVORY,TRIM0#

main73210-47050-B0iNHW20200308-200408

GRAY,TRIM1#

main73210-47051-A0iNHW20200408-200511

IVORY,TRIM0#

main73210-47051-B0iNHW20200408-200511

GRAY,TRIM18,19

main73210-47051-E0iNHW20200511-200903

GREGE,TRIM4#

main73210-47052-B0iNHW20200906-201112

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47040-A0iNHW20200308-200511

IVORY,TRIM0#

main73220-47040-B0iNHW20200511-200905

GRAY,TRIM1#

main73220-47040-E0iNHW20200511-200903

GREGE,TRIM4#

main73220-47041-B0iNHW20200906-201112

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-47070-E0iNHW20200511-200903

GREGE,TRIM4#

main73230-47070-A0iNHW20200408-200511

main73230-47070-B0iNHW20200408-200511

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1×2iNHW20200308-200511

IVORY,TRIM0#

main73233-33010-B8×2iNHW20200511-201112

DK.GRAY,TRIM1#

main73233-33010-E6×2iNHW20200511-200903

GREGE,TRIM4#

main73233-33010-P2×2iNHW20200308-200511

MD.GRAY,TRIM18,19

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-47041-E0iNHW20200511-200903

GREGE,TRIM4#

main73240-47041-A0iNHW20200408-200511

main73240-47041-B0iNHW20200408-200511

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911028

main90109-11028

9017811002

main90178-11002

9090119040

main90901-19040

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
