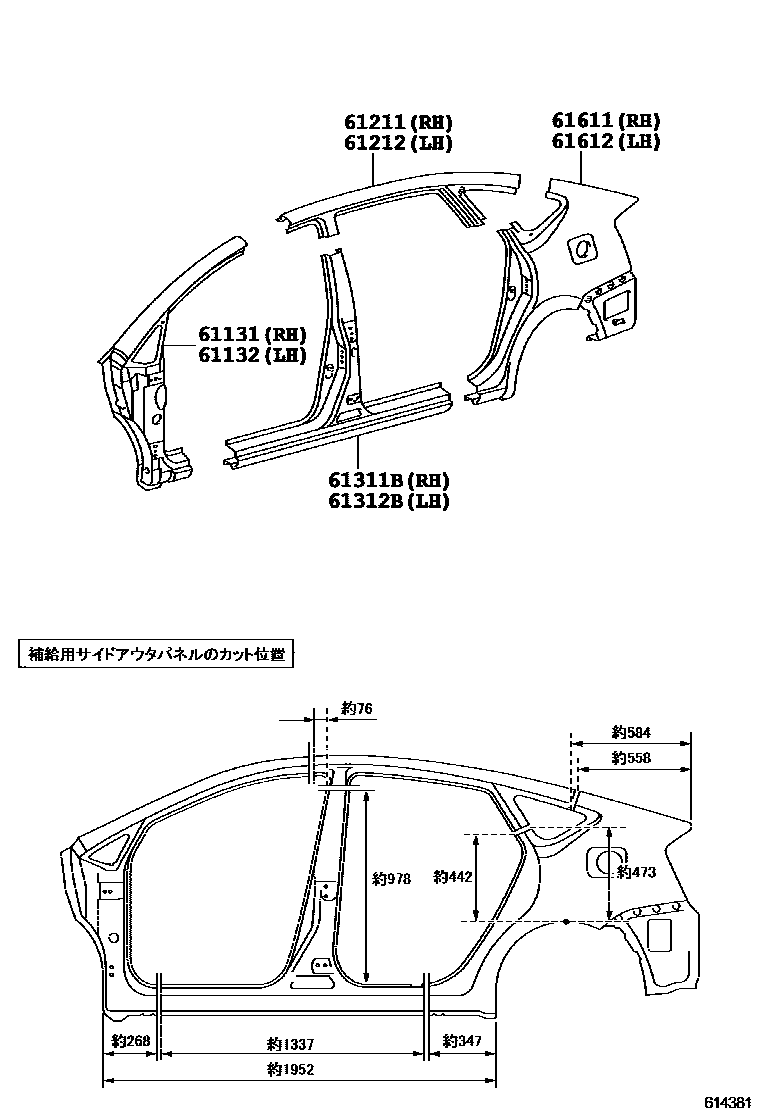

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-47020iNHW20200308-200511

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-47020iNHW20200308-200511

61211RAIL, ROOF SIDE, OUTER RH

main61213-47010iNHW20200308-200511

main61213-47020iNHW20200701-201010

main61213-47021iNHW20201011

61212RAIL, ROOF SIDE, OUTER LH

main61214-47010iNHW20200511-200612

main61214-47020iNHW20200701-201010

main61214-47021iNHW20201011

61311BPILLAR, CENTER BODY, OUTER RH

main61311-47010iNHW20200308-200511

61312BPILLAR, CENTER BODY, OUTER LH

main61312-47010iNHW20200511

61611PANEL, QUARTER, RH

main61601-47050iNHW20200308-200511

main61601-47070iNHW20200701-201112

61612PANEL, QUARTER, LH

main61602-47050iNHW20200511-200612

main61602-47070iNHW20200701-201112

8 parts on this diagram · 3 diagrams in section
