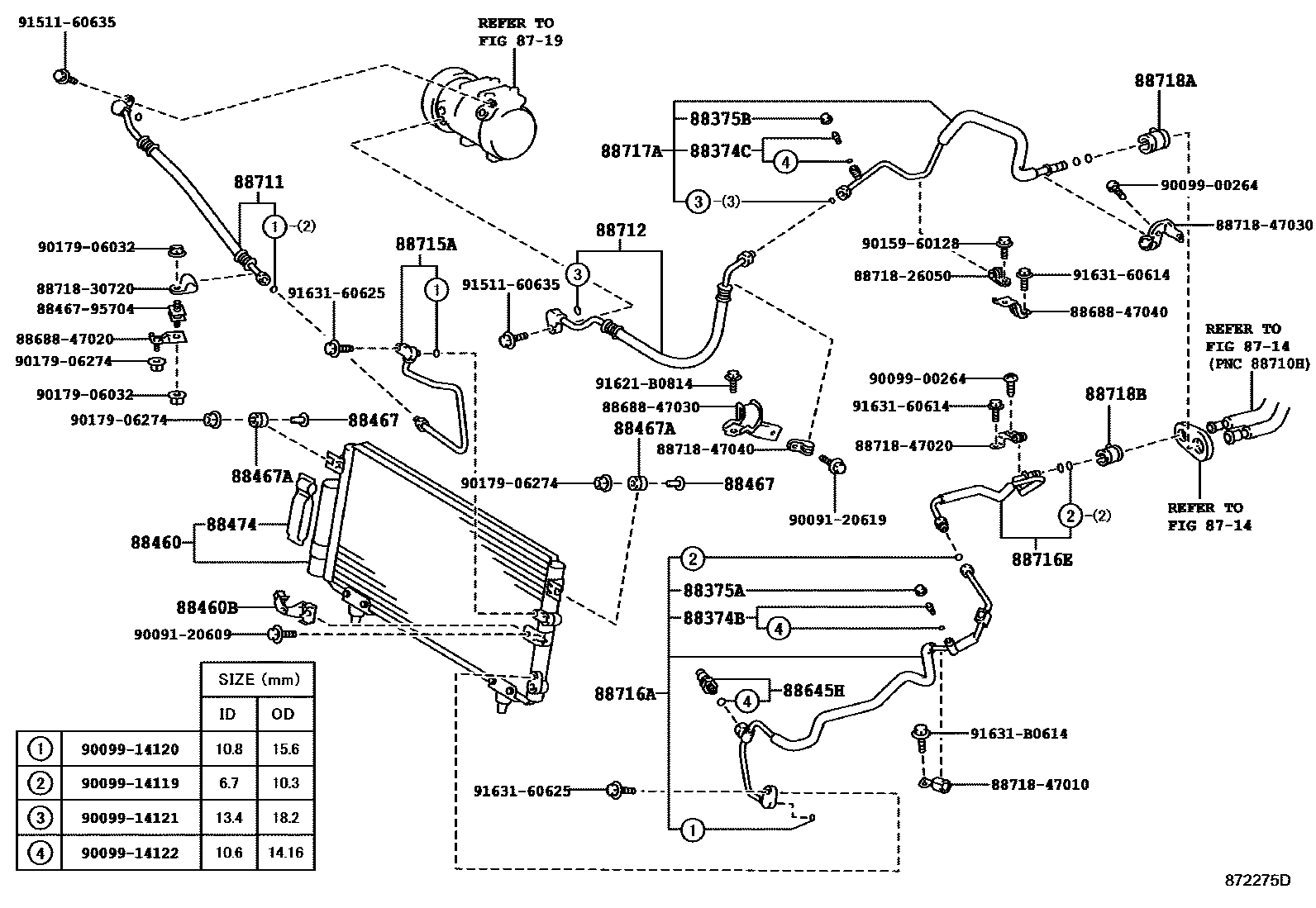

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iNHW1#199712

88374CVALVE, SERVICE, NO.2

main88374-30010iNHW1#199712

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iNHW1#199712

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNHW1#199712

88460CONDENSER ASSY, COOLER

main88460-47010iNHW1#199712

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-47010iNHW1#199712

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20140×2iNHW1#199712

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-47010×2iNHW1#199712

88474DRYER, COOLER

main88474-47010iNHW1#199712

88645HSWITCH, PRESSURE NO.1

main88645-60030iNHW1#199712

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47010iNHW10199712-200005

main88711-47020iNHW11200005-200208

main88711-47021iNHW11200208

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-47010iNHW10199712-200005

main88712-47020iNHW11200005

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-47010iNHW1#199712-200208

main88715-47011iNHW11200208

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-47010iNHW10199712-200005

main88716-47030iNHW11200005

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88706-47040iNHW11200005

main88716-47020iNHW10199712-200005

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-47010iNHW10199712-200005

main88717-47020iNHW11200005

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-2D140iNHW1#199712

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-2D150iNHW1#199712

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

8868847020BRACKET, COOLER DIAPHRAGM

main88688-47020

8868847030BRACKET, COOLER DIAPHRAGM

main88688-47030

8868847040BRACKET, COOLER DIAPHRAGM

main88688-47040

8871826050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26050

8871830720PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30720

8871847010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-47010

8871847020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-47020

8871847030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-47030

8871847040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-47040

9009120609

main90091-20609

9009120619

main90091-20619

9009900264

main90099-00264

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9015960128

main90159-60128

9017906032

main90179-06032

9017906274

main90179-06274

9151160635

main91511-60635

91621B0814

main91621-B0814

9163160614

main91631-60614

9163160625

main91631-60625

91631B0614

main91631-B0614

45 parts on this diagram · 3 diagrams in section
