ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNHW1#199712

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNHW1#199712

89279COVER, ENGINE CONTROL COMPUTER

main89279-47020iNHW10199712-200005

main89279-47040iNHW11200005

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iNHW1#199712

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30140iNHW10199712-200005

main89452-30150iNHW11200005

89661COMPUTER, ENGINE CONTROL

main89661-47010iNHW10199712-200005

main89661-47020iNHW11200005

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-47010iNHW1#199712

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47010iNHW1#199712

89672AMOTOR, THROTTLE CONTROL

main89672-47010iNHW10199712-200005

9015970003

main90159-70003

9043012005

main90430-12005

9165140620

main91651-40620

9331915010

main93319-15010

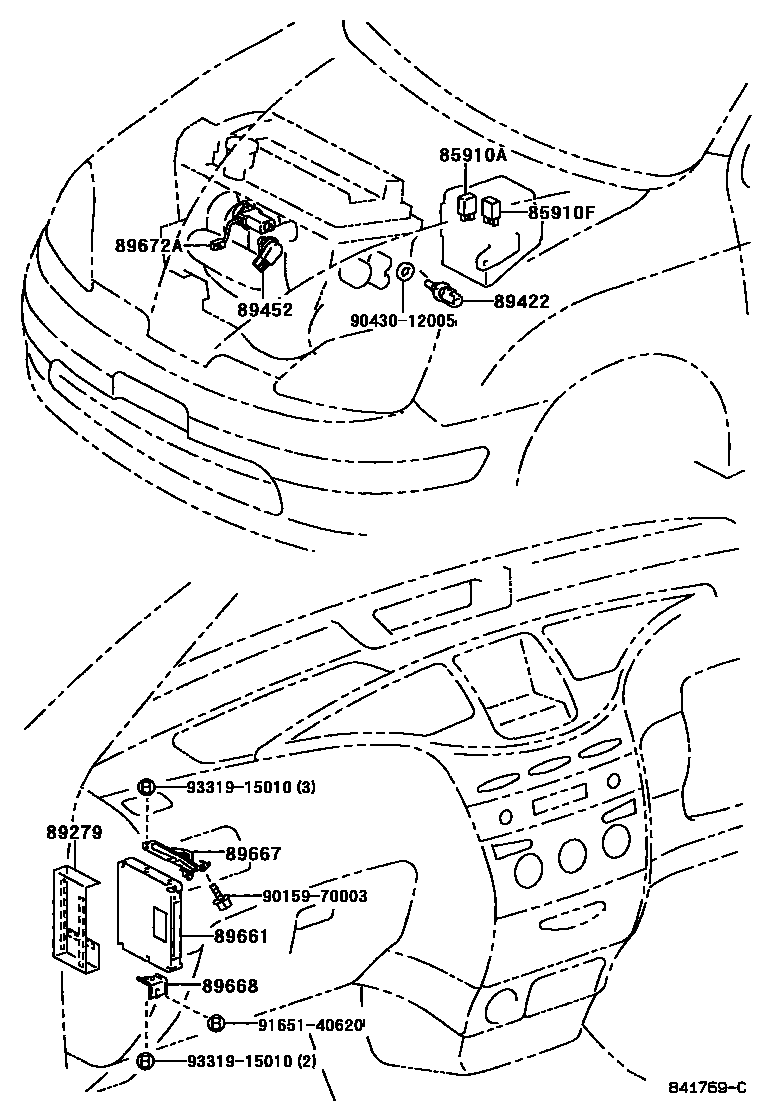

13 parts on this diagram · 1 diagram in section
