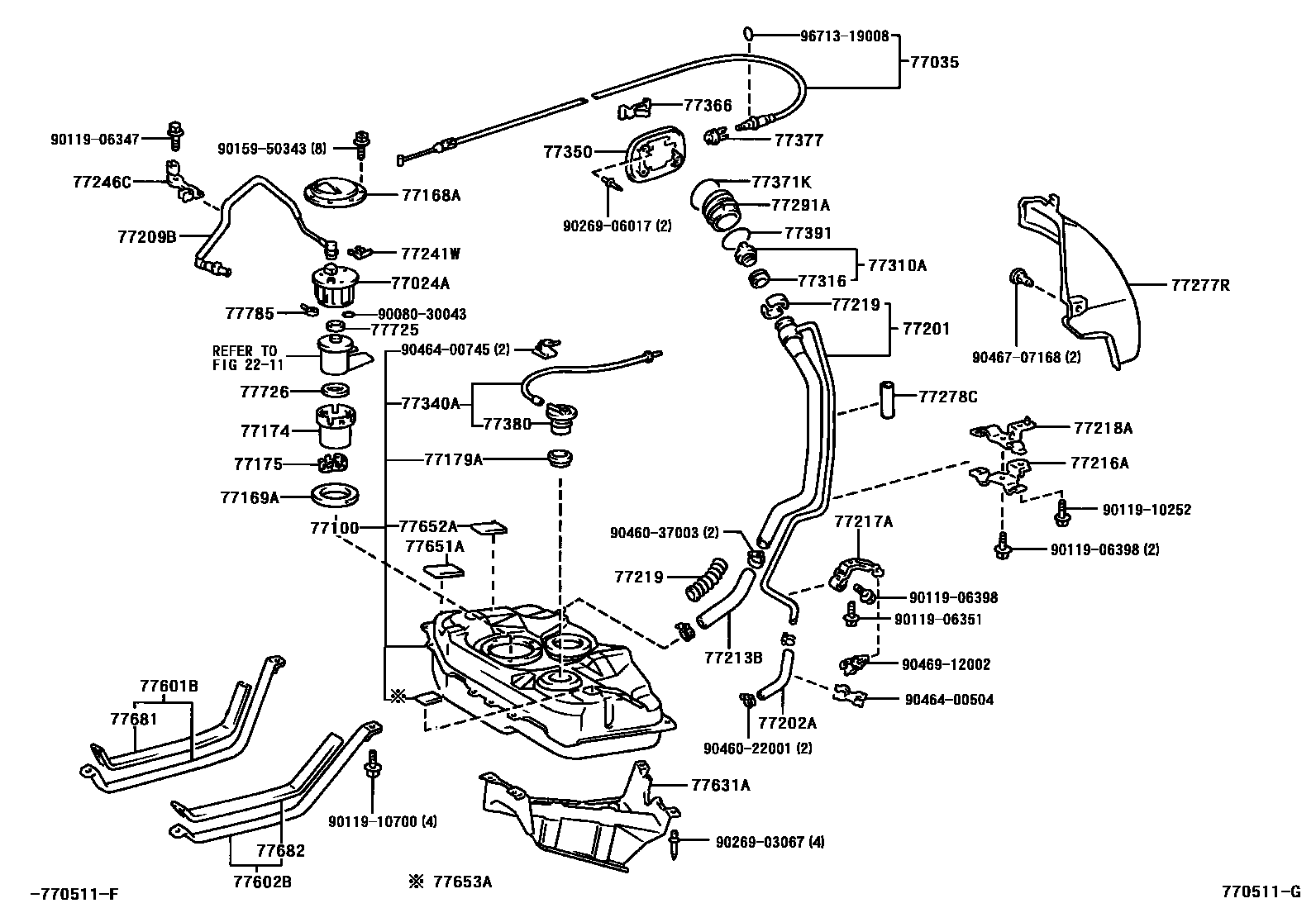

FUEL TANK & TUBE
2211FUEL INJECTION SYSTEM
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209BTUBE SUB-ASSY, FUEL PUMP
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77371KBRACKET, FUEL FILLER OPENING LID LOCK
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77631APROTECTOR, FUEL TANK, LOWER CENTER
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77725CUSHION, FUEL FILTER, NO.1
77726CUSHION, FUEL FILTER, NO.2
9008030043
main90080-30043
9011906347
main90119-06347
9011906351
main90119-06351
9011906398
main90119-06398
9011910252
main90119-10252
9011910700
main90119-10700
9015950343
main90159-50343
9026903067
main90269-03067
9026906017
main90269-06017
9046022001
main90460-22001
9046037003
main90460-37003
9046400504
main90464-00504
9046400745
main90464-00745
9046707168
main90467-07168
9046912002
main90469-12002
9671319008
main96713-19008
58 parts on this diagram · 4 diagrams in section
