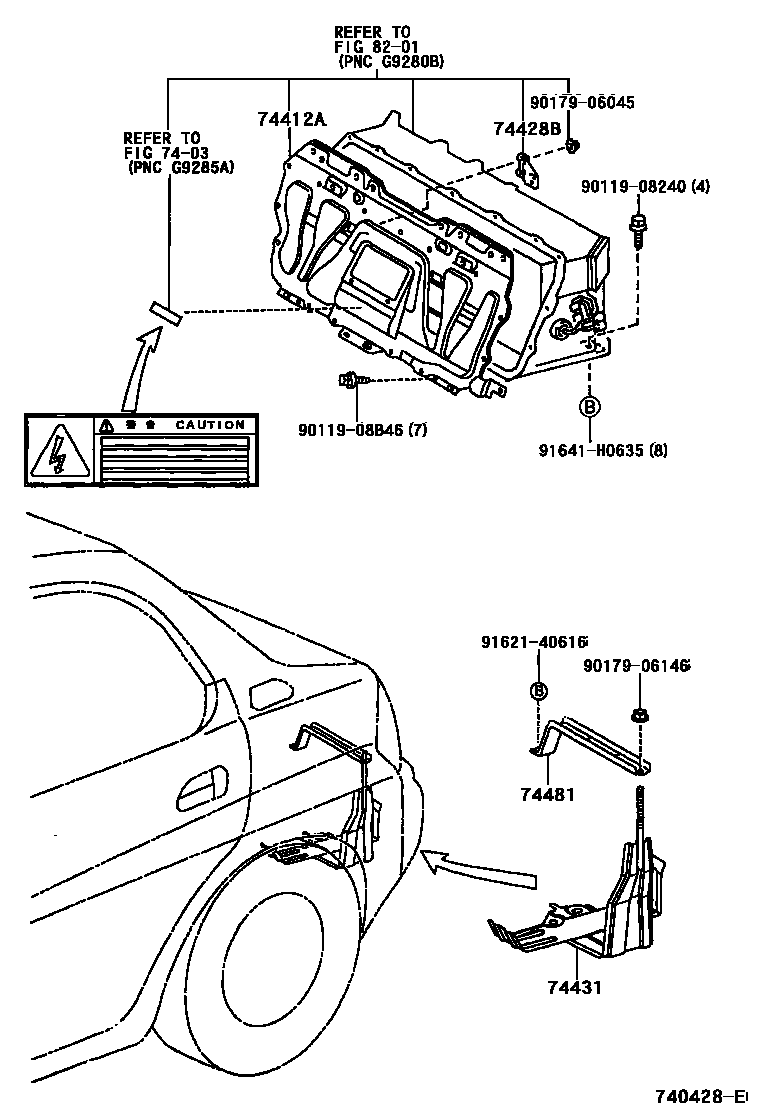

BATTERY CARRIER

0001 1 0002 1

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

74412ACARRIER, BATTERY, NO.2

main74412-47010iNHW10199712-200005

74428BBRACKET, BATTERY CARRIER CATCH, NO.2

main74428-47010iNHW10199906-200005

74431TRAY, BATTERY

main74402-47010iNHW10199712-200005

main74402-47030iNHW11200005

74481CLAMP, BATTERY HOLD DOWN

main74481-47010iNHW1#199712

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

9011908240

main90119-08240

9011908B46

main90119-08B46

9017906045

main90179-06045

9017906146

main90179-06146

9162140616

main91621-40616

91641H0635

main91641-H0635

12 parts on this diagram · 2 diagrams in section
