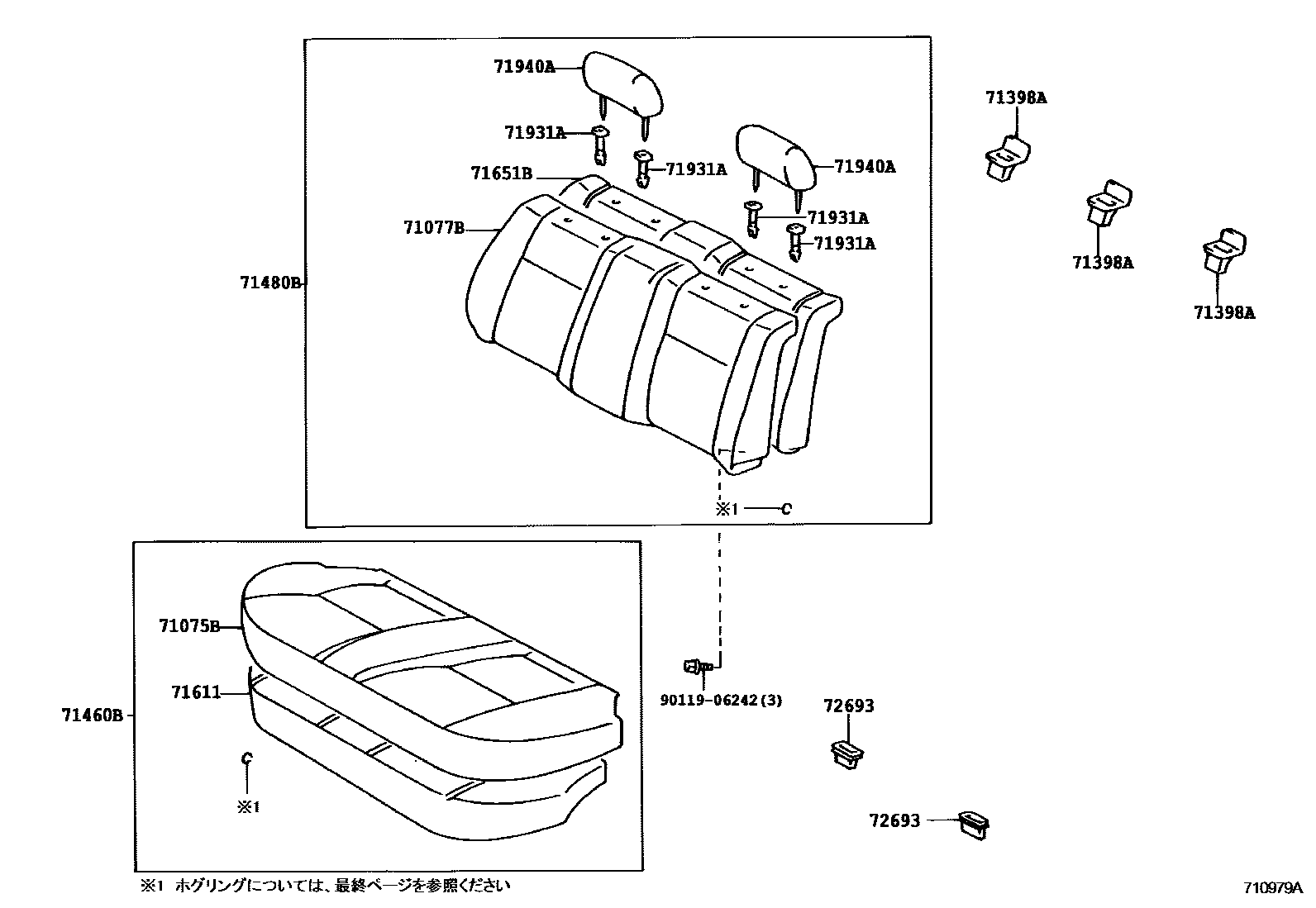

REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
AMETHYST,TRIM9#
LT. AMETHYST,TRIM9#
PREMIUM *(D),AMETHYST,TRIM95
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
71398AHOLDER, REAR SEATBACK
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
***,AMETHYST,TRIM9#
***,AMETHYST,TRIM9#
PREMIUM 21 *(C),AMETHYST,TRIM95
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
AMETHYST,TRIM9#
LT. AMETHYST,TRIM9#
72693HOOK, REAR SEAT CUSHION LOCK
9011906242
main90119-06242
11 parts on this diagram · 4 diagrams in section
