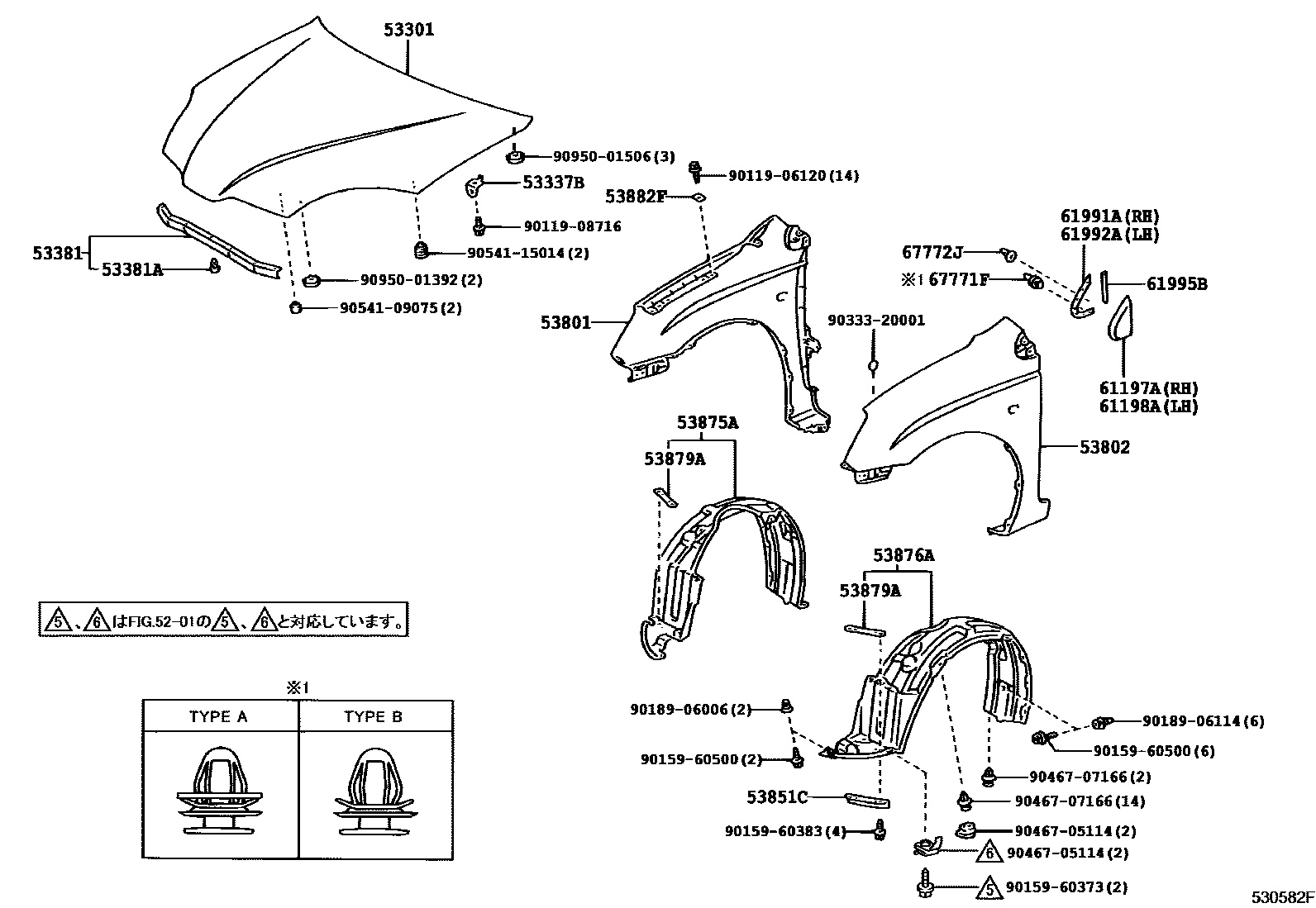

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-47010iNHW10199712-199812

main53301-47011iNHW1#199812

53337BBRACKET, HOOD STAY

main53337-28010iNHW1#199712

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-47010iNHW1#199712

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iNHW1#199712

53801FENDER SUB-ASSY, FRONT RH

main53811-47010iNHW1#199712

53802FENDER SUB-ASSY, FRONT LH

main53812-47010iNHW1#199712

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-47010×2iNHW1#199712

53875ALINER, FRONT FENDER, RH

main53875-47010iNHW1#199712

53876ALINER, FRONT FENDER, LH

main53876-47010iNHW1#199712

53879ARETAINER, FRONT FENDER LINER

main53879-47010×2iNHW1#199712

53882FSEAL, FRONT FENDER

main53882-16030×4iNHW10199712-200005

61197ACOVER, FRONT PILLAR, RH

main61197-47010iNHW1#199712

61198ACOVER, FRONT PILLAR, LH

main61198-47010iNHW1#199712

61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH

main61991-47010iNHW1#199712

61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH

main61992-47010iNHW1#199712

61995BDAM, FRONT BODY PILLAR, OUTER

main61995-47010×2iNHW1#199712

67771FRETAINER, FRONT PILLAR COVER

main67771-17020×2iNHW1#199712

main67771-30070×2iNHW1#199712

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03×2iNHW1#199712

9011906120

main90119-06120

9011908716

main90119-08716

9015960373

main90159-60373

9015960383

main90159-60383

9015960500

main90159-60500

9018906006

main90189-06006

9018906114

main90189-06114

9033320001

main90333-20001

9046705114

main90467-05114

9046707166

main90467-07166

9054109075

main90541-09075

9054115014

main90541-15014

9095001392

main90950-01392

9095001506

main90950-01506

32 parts on this diagram · 1 diagram in section
