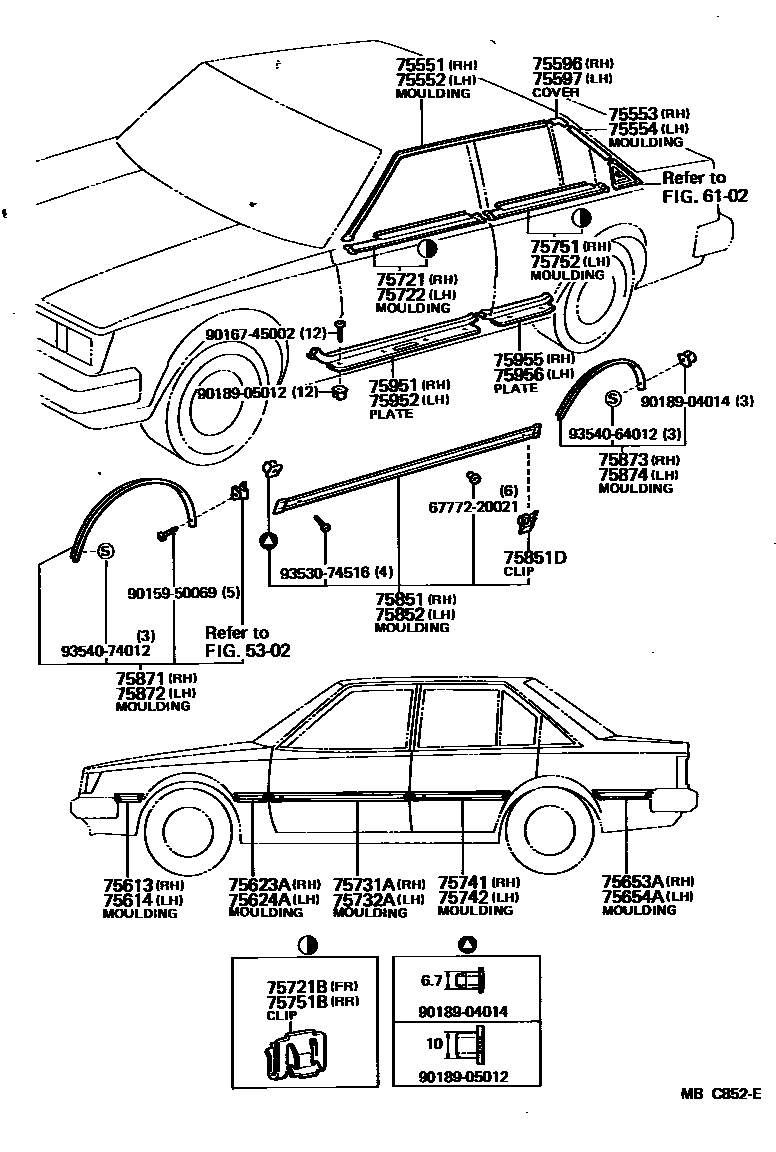

SIDE MOULDING

0001 1 0002 1 0003 1

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

6102ROOF SIDE VENTILATOR

→ Go to FIG 61-02

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-14080iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main75551-91C01iCA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)198109-198804

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-14080iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main75552-91C01iCA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)198109-198804

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75553-14150iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main75553-91C01iCA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)198109-198804

main75643-14020iAA60,SA60,TA63..CP..(SE,SG)198109-198507

main75643-14030iAA6#,RA63,SA60,TA61,63..CP..(GT,GTT,ST)198109-198507

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75554-14150iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main75554-91C01iCA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)198109-198804

main75644-14020iAA60,SA60,TA63..CP..(SE,SG)198109-198507

main75644-14030iAA6#,RA63,SA60,TA61,63..CP..(GT,GTT,ST)198109-198507

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-14050iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main75596-91C01iCA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)198109-198804

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-91C01iCA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)198109-198804

main75597-14020iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-14070iAA60,CA60,SA60,TA63..SED..(SE,ST)198206-198405

W/BACK SONAR

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75611-14070iAA60,CA60,SA60,TA63..SED..(SE,ST)198206-198405

W/BACK SONAR

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-14040iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST198109-198804

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-14050iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST198109-198804

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75653-14140iAA60,CA60,SA60,TA63..SED..(SE,ST)198208-198405

W/BACK SONAR

main75653-91C02iSA60..WG198202-198804

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75654-14130iAA60,CA60,SA60,TA63..SED..(SE,ST)198208-198405

W/BACK SONAR

main75654-91C02iSA60..WG198202-198804

75721MOULDING, FRONT DOOR BELT, RH

main75710-14140iAA60,CA60,SA60..SED..(DLX,SG,STD)198305-198712

main75710-14150iAA6#,CA60,SA60,TA63..(SED,WG)..(GT,GTT,SE,ST)198305-198804

main75710-14170iAA60,SA60,TA63..CP..(SE,SG)198109-198305

main75710-14180iAA60,SA60..CP..(SE,SG)198305-198507

main75710-14190iAA60,RA63,TA61,63..CP..(GT,GTT,ST)198109-198305

main75710-14200iAA6#,SA60,TA63..CP..(GT,GTT,ST)198305-198507

75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)

main68211-14080×12iAA6#,CA60,RA63,SA60,TA61,63..SED,WG; CA67,KA67,TA67..SG198109-198804

main68211-14090×14iAA60,RA63,SA60,TA61,63..CP198109-198305

main68211-14120×14iAA6#,SA60,TA63..CP198305-198507

75722MOULDING, FRONT DOOR BELT, LH

main75720-14140iAA60,CA60,RA63,SA60,TA61,63..SED,WG198109-198305

main75720-14150iAA6#,CA60,SA60,TA63..(SED,WG)..(GT,GTT,SE,ST)198305-198804

main75720-14170iAA60,SA60,TA63..CP..(SE,SG)198109-198305

main75720-14180iAA60,SA60..CP..(SE,SG)198305-198507

main75720-14190iAA60,RA63,TA61,63..CP..(GT,GTT,ST)198109-198305

main75720-14200iAA6#,SA60,TA63..CP..(GT,GTT,ST)198305-198507

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-14160iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

main75731-14170iAA6#,RA63,SA60,TA61,63..CP198109-198507

main75731-91C02iSA60..WG198202-198804

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-14140iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

main75732-14150iAA6#,RA63,SA60,TA61,63..CP198109-198507

main75732-91C02iSA60..WG198202-198804

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-14070iAA60..DLX198401-198712

MY ROAD

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-14070iAA60..DLX198401-198712

MY ROAD

75751MOULDING, REAR DOOR BELT, RH

main75730-14030iAA6#,CA60,RA63,SA60,TA61,63..SED,WG; CA67,KA67,TA67..SG198109-198804

75751BCLIP (FOR REAR DOOR BELT MOULDING SET)

main68211-14080iAA6#,CA60,RA63,SA60,TA61,63..SED,WG; CA67,KA67,TA67..SG198109-198804

75752MOULDING, REAR DOOR BELT, LH

main75740-14070iAA6#,CA60,RA63,SA60,TA61,63..SED,WG; CA67,KA67,TA67..SG198109-198804

75851MOULDING, ROCKER PANEL, RH

main75850-19135iAA6#,CA6#,KA67,RA63,SA60,TA6#..GT,GTT,SE,SG,ST198109-198804

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-14050×6iAA6#,CA6#,KA67,RA63,SA60,TA6#..GT,GTT,SE,SG,ST198109-198804

75852MOULDING, ROCKER PANEL, LH

main75860-19155iAA6#,CA6#,KA67,RA63,SA60,TA6#..GT,GTT,SE,SG,ST198109-198804

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-19075iAA63,TA63198305-198507

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-19075iAA63,TA63198305-198507

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-19045iAA63,TA63198305-198507

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-19045iAA63,TA63198305-198507

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-14090-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main67913-14090-04iTA63..SED198305-198507

BLUE,BLUE,TRIM8#

main67913-14090-06iTA63..SED198305-198405

DARK BROWN,BROWN,TRIM4#

main67913-14110-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main67913-14110-04iTA63..CP198305-198507

BLUE,BLUE,TRIM8#

main67913-14110-06iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

DARK BROWN,BROWN,TRIM4#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-14080-01iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V198109-198804

BLACK,BLACK,TRIM2#

main67914-14080-04iAA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST)198109-198804

BLUE,BLUE,TRIM8#

main67914-14080-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..(SED,V,WG)..(DLX,GT,SE,SG,ST)198109-198804

DARK BROWN,BROWN,TRIM4#

main67914-14090-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main67914-14090-04iTA63..CP198305-198507

BLUE,BLUE,TRIM8#

main67914-14090-06iTA63..CP198305-198405

DARK BROWN,BROWN,TRIM4#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-14030-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main67917-14030-04iAA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST)198109-198804

BLUE,BLUE,TRIM8#

main67917-14030-06iAA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST)198109-198405

DARK BROWN,BROWN,TRIM4#

main67917-91C01-01iCA67,KA67,TA67198109-198804

BLACK,BLACK,TRIM2#

main67917-91C01-06iCA67,KA67,TA67..DLX,SG198109-198804

DARK BROWN,BROWN,TRIM4#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-14030-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main67918-14030-04iTA63..SED198305-198507

BLUE,BLUE,TRIM8#

main67918-14030-06iAA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST)198109-198405

DARK BROWN,BROWN,TRIM4#

main67918-91C01-01iCA67,KA67,TA67198109-198804

BLACK,BLACK,TRIM2#

main67918-91C01-06iCA67,KA67,TA67..DLX,SG198109-198804

DARK BROWN,BROWN,TRIM4#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015950069

main90159-50069

9016745002

main90167-45002

9018904014

main90189-04014

9018905012

main90189-05012

9353074516

main93530-74516

9354064012

main93540-64012

9354074012

main93540-74012

43 parts on this diagram · 3 diagrams in section
