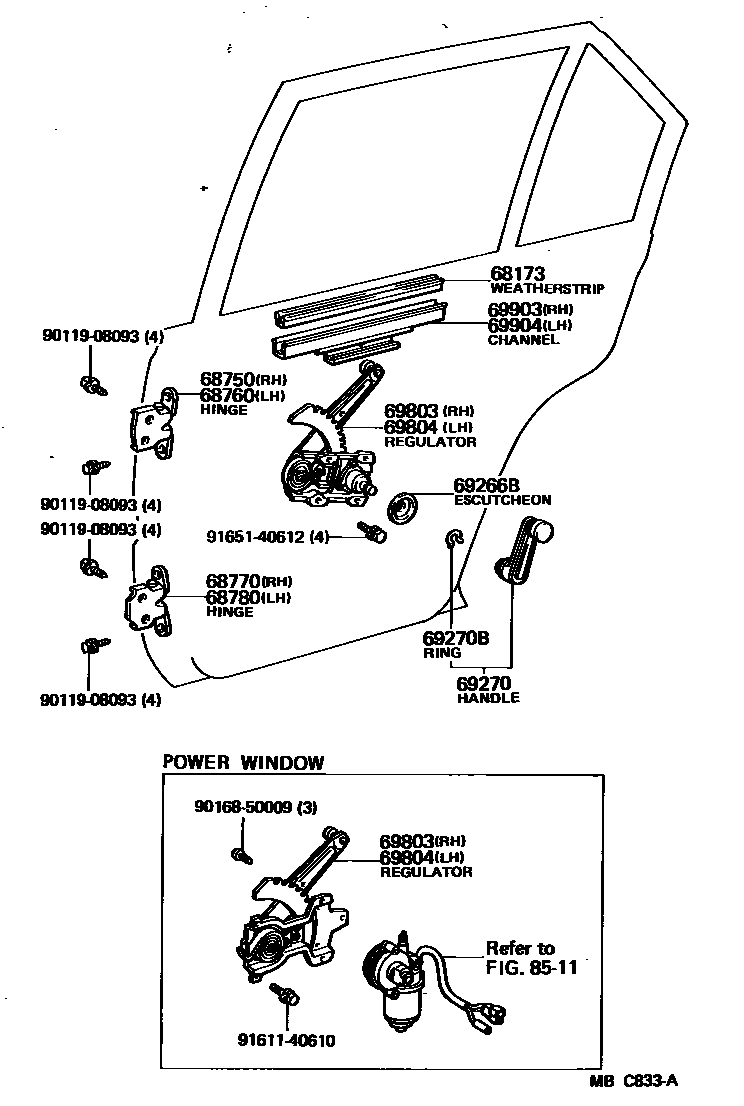

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69975-22020×2iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69285-22010-08iAA6#,CA6#,KA67,SA60,TA6#..(SED,V,WG)..(DLX,GT,GTT,SG,ST,STD)198305-198804

NATURAL WHITE

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14020-01×2iAA60,CA6#,RA63,SA60,TA6#..SED,V198109-198305

BLACK,BLACK,TRIM2#

main69260-14020-06×2iAA60,CA6#,RA63,SA60,TA6#..(SED,V,WG)..(DLX,GT,SE,SG,ST)198109-198305

DARK BROWN,BROWN,TRIM4#

main69260-14020-14×2iAA6#,CA60,SA60,TA63..(SED,WG)..(DLX,GT,GTT,SG,ST)198305-198804

BLUE,BLUE,TRIM8#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAA60,CA6#,RA63,SA60,TA6#..SED,V,WG198109-198305

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-14080iAA63,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE)198109-198712

*PW

main69830-14060iAA6#,CA6#,KA67,SA60,TA6#..(SED,V,WG)..(DLX,GT,GTT,SG,ST,STD)198305-198804

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-14080iAA60,SA60..SED..SG198310-198712

MY ROAD

main69840-14060iAA60,CA6#,RA63,SA60,TA6#..SED,V,WG198109-198305

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850009

main90168-50009

9161140610

main91611-40610

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
